User’s Manual of WGSW-28040 / 28040P
99
4.5.6 VLAN setting example:
- Separate VLAN
- 802.1Q VLAN Trunk
- Port Isolate (Protected Port)
4.5.6.1 Two separate 802.1Q VLAN
The diagram shows how the Managed Switch handle Tagged and Untagged traffic flow for two VLANs. VLAN Group 2 and
VLAN Group 3 are separated VLAN. Each VLAN isolate network traffic so only members of the VLAN receive traffic from the
same VLAN members. The screen in Figure 4-5-13 appears and Table 4-5-2 describes the port configuration of the Managed
Switches.

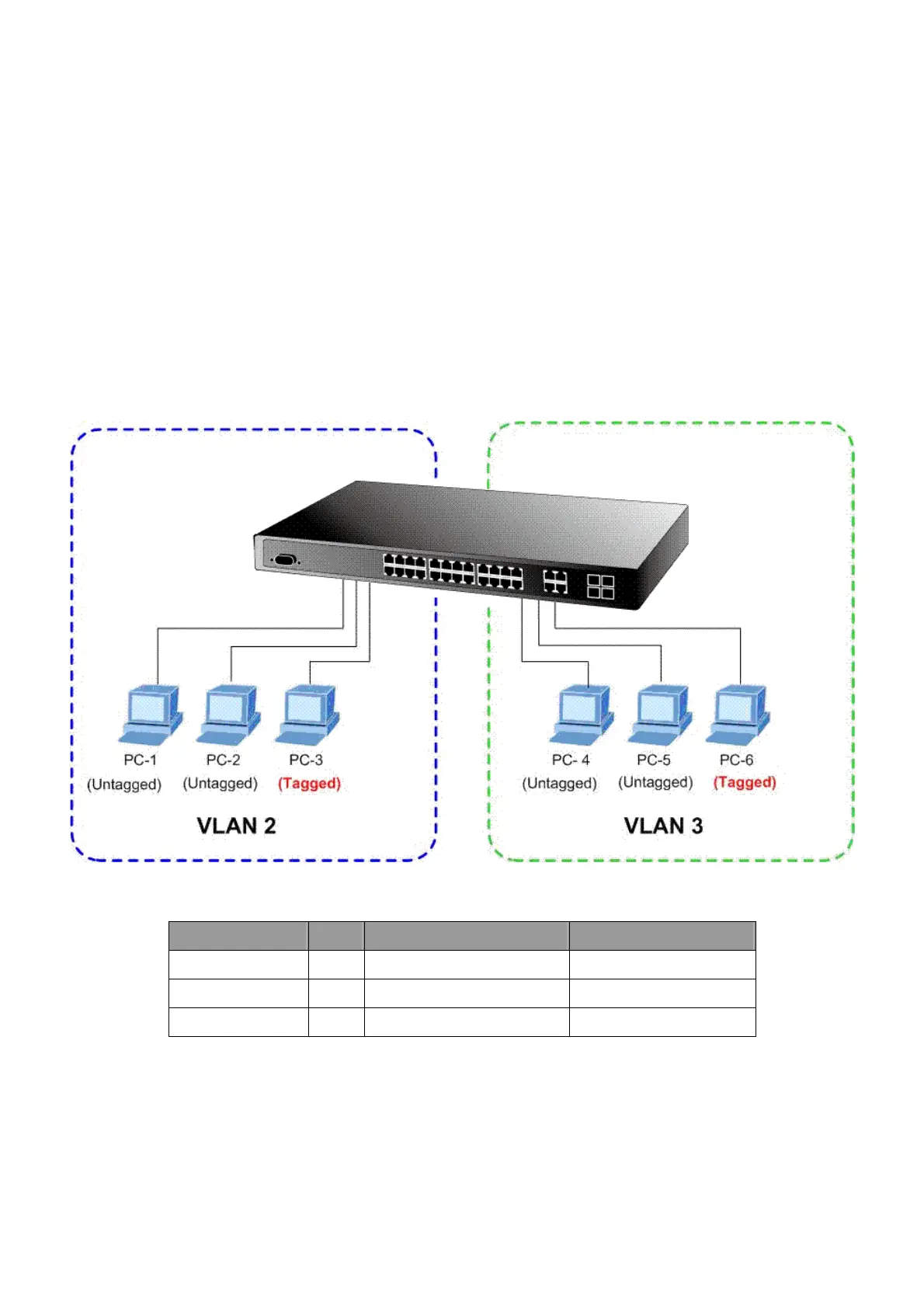

Figure 4-5-13 two separate VLAN diagram
VLAN Group VID Untagged Members Tagged Members
VLAN Group 1 1 Port-7~Port-24 N/A
VLAN Group 2 2 Port-1,Port-2 Port-3
VLAN Group 3 3 Port-4,Port-5 Port-6
Table 4-5-2 VLAN and Port Configuration
