4.11 MAC Address Table
Switching of frames is based upon the DMAC address contained in the frame. The Managed Switch builds up a table that maps
MAC addresses to switch ports for knowing which ports the frames should go to (based upon the DMAC address in the frame ).
This table contains both static and dynamic entries. The static entries are configured by the network administrator if the
administrator wants to do a fixed mapping between the DMAC address and switch ports.
The frames also contain a MAC address (SMAC address ), which shows the MAC address of the equipment sending the frame.
The SMAC address is used by the switch to automatically update the MAC table with these dynamic MAC addresses. Dynamic
entries are removed from the MAC table if no frame with the corresponding SMAC address have been seen after a configurable
age time.
4.11.1 Dynamic Learned
Dynamic MAC Table
Dynamic Learned MAC Table are shown on this page. The MAC Table is sorted first by VLAN ID, then by MAC address. The
Dynamic Learned screen in Figure 4-11-1 appears.

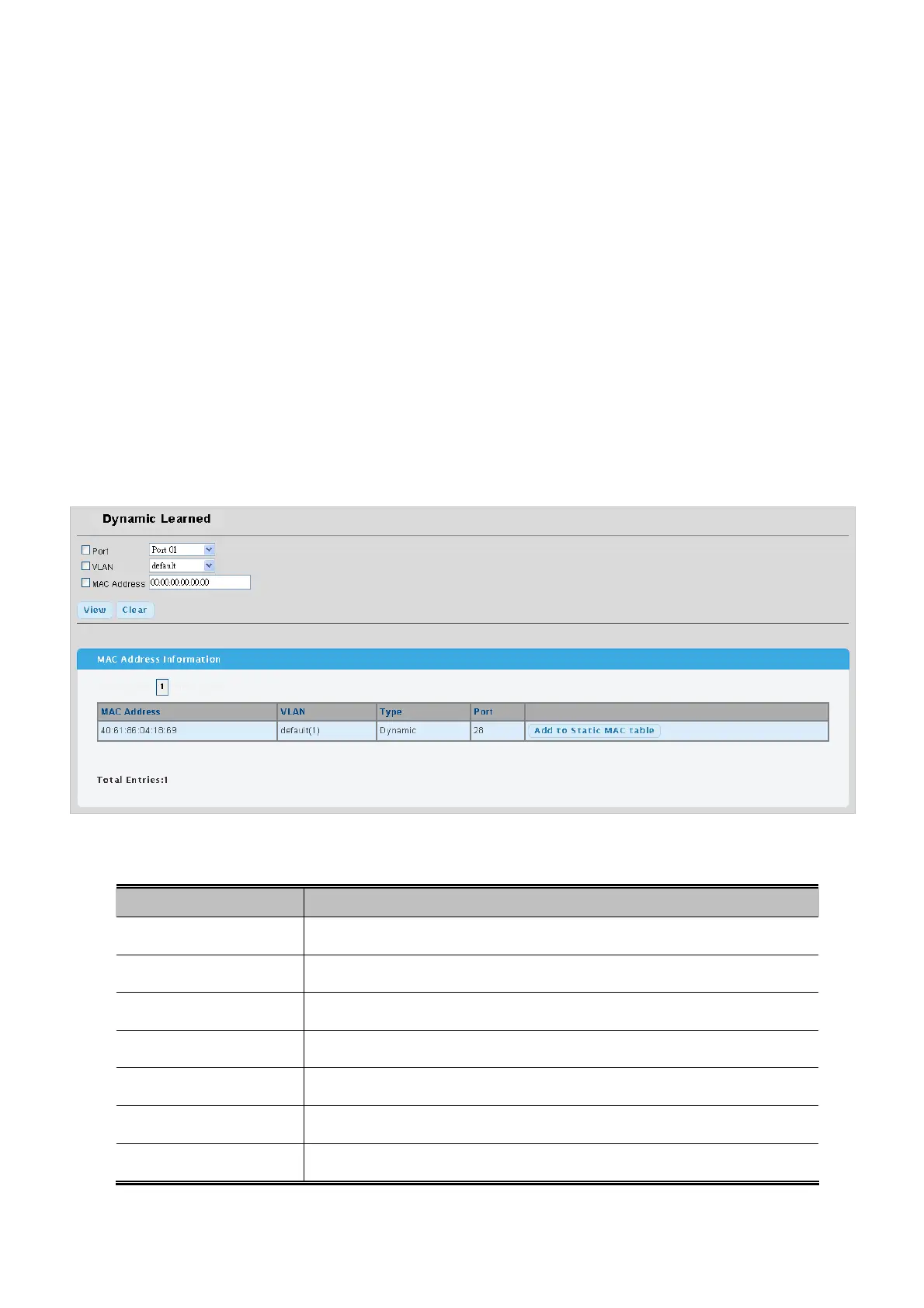

Figure 4-11-1 Dynamic Learned page screenshot
The page includes the following fields:
Object Description
• Port
Indicates a port.
• VLAN
ID of configured VLAN (1-4094).
• MAC Address
Physical address associated with this interface.
• MAC Address
The MAC address of the entry.
• VLAN
The VLAN ID of the entry.
• Type
Indicates whether the entry is a static or dynamic entry.
• Port
The ports that are members of the entry.
