• Dst-ip
Destination IP address. A subnet mask containing four integers from 0 to 255,
each separated by a period. The mask uses 1 bits to indicate “match” and 0 bits
to indicate “ignore.” The mask is bitwise ANDed with the specified source IP
address, and compared with the address for each IP packet entering the port(s)
to which this ACL has been assigned.
• Ip-portocol
Specifies the protocol type to match as TCP or UDP.
• Tos
Specifies the ToS value.
• L4-src-port
Specifies the L4 source protocol port.
• L4-dst-port
Specifies the L4 destination protocol port.
• Tcp-flag
Specifies the TCP flag value.
• Action
An ACE can contain any combination of permit or deny rules.
(Default: Permit rules)
4.10.2 ACL Template Setting

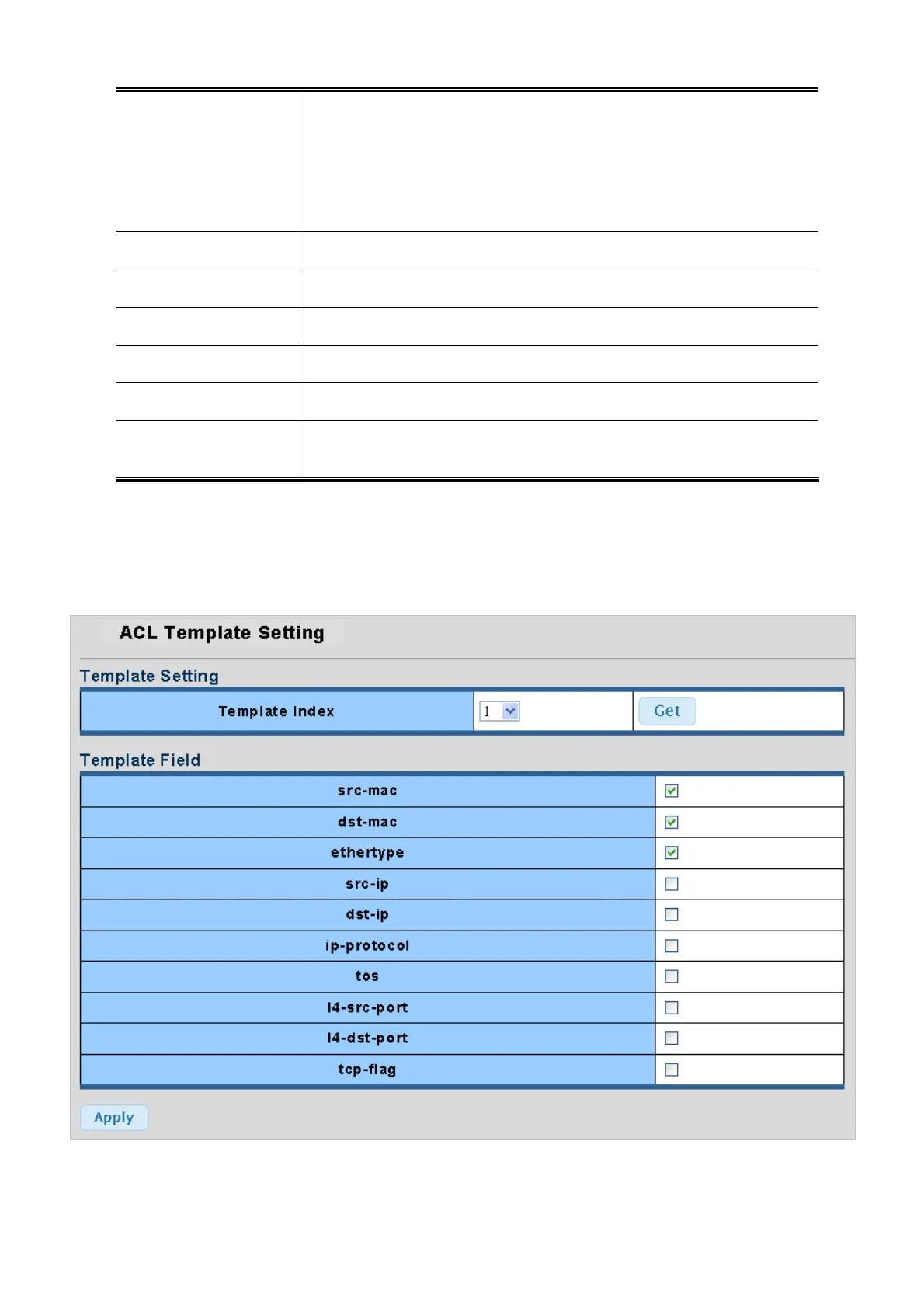

This page allows you to configure the ACL Template Setting. The ACL Template Setting screen in Figure 4-10-4 appears.
Figure 4-10-4 ACL Template Setting page screenshot
