4.5.4 VLAN Port Configuration
This page provides to configuration VLAN Port Configuration parameter. The VLAN Port Configuration screen in Figure 4-5-3 &
Figure 4-5-4 appears.

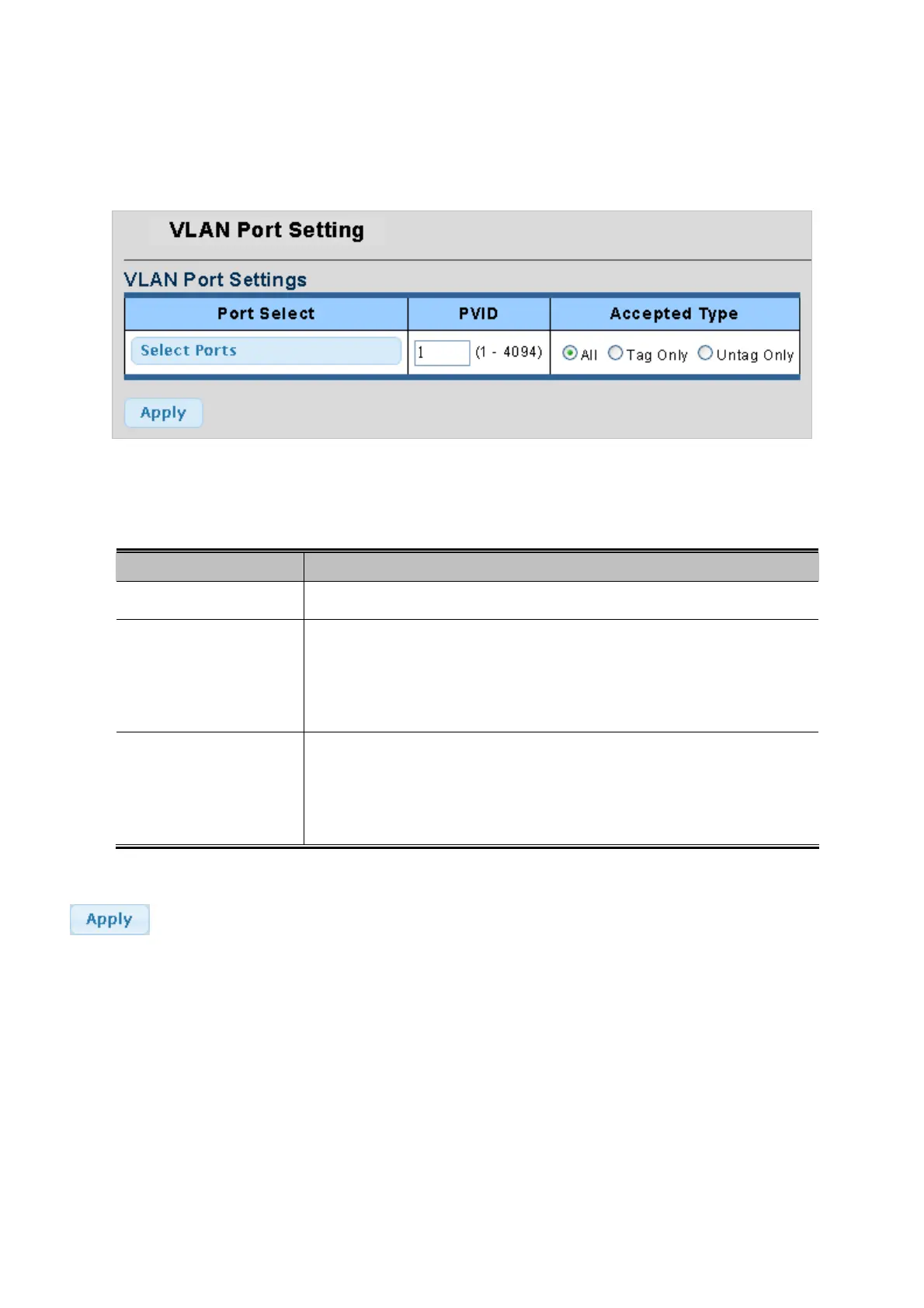

Figure 4-5-3 VLAN Port Settings page screenshot
The page includes the following fields:
Object Description
• Port Select
Select port number for this drop down list to assign PVID and accepted type.
• PVID
Allow assign PVID for selected port. The range for the PVID is 1-4094.
The PVID will be inserted into all untagged frames entering the ingress port. The
PVID must as same as the VLAN ID that the port belong to VLAN group, or the
untagged traffic will be dropped.
• Accepted Type
Determines whether the port accepts all frames or only tagged frames. This
parameter affects VLAN ingress processing. If the port only accepts tagged
frames, untagged frames received on the port are discarded. By default, the field
is set to All.
Buttons
: Click to apply changes.
