That is, although the VLAN 2 members: Port-1 to Port-3 and VLAN 3 members: Port-4 to Port-6 also belongs to VLAN 1. But
with different PVID settings, packets form VLAN 2 or VLAN 3 is not able to access to the other VLAN.
7. Repeat Step 1 to 6, setup the VLAN Trunk port at the partner switch, add more VLANs to join the VLAN trunk and assign
the Trunk port to the VLANs.
4.5.6.3 Port Isolate

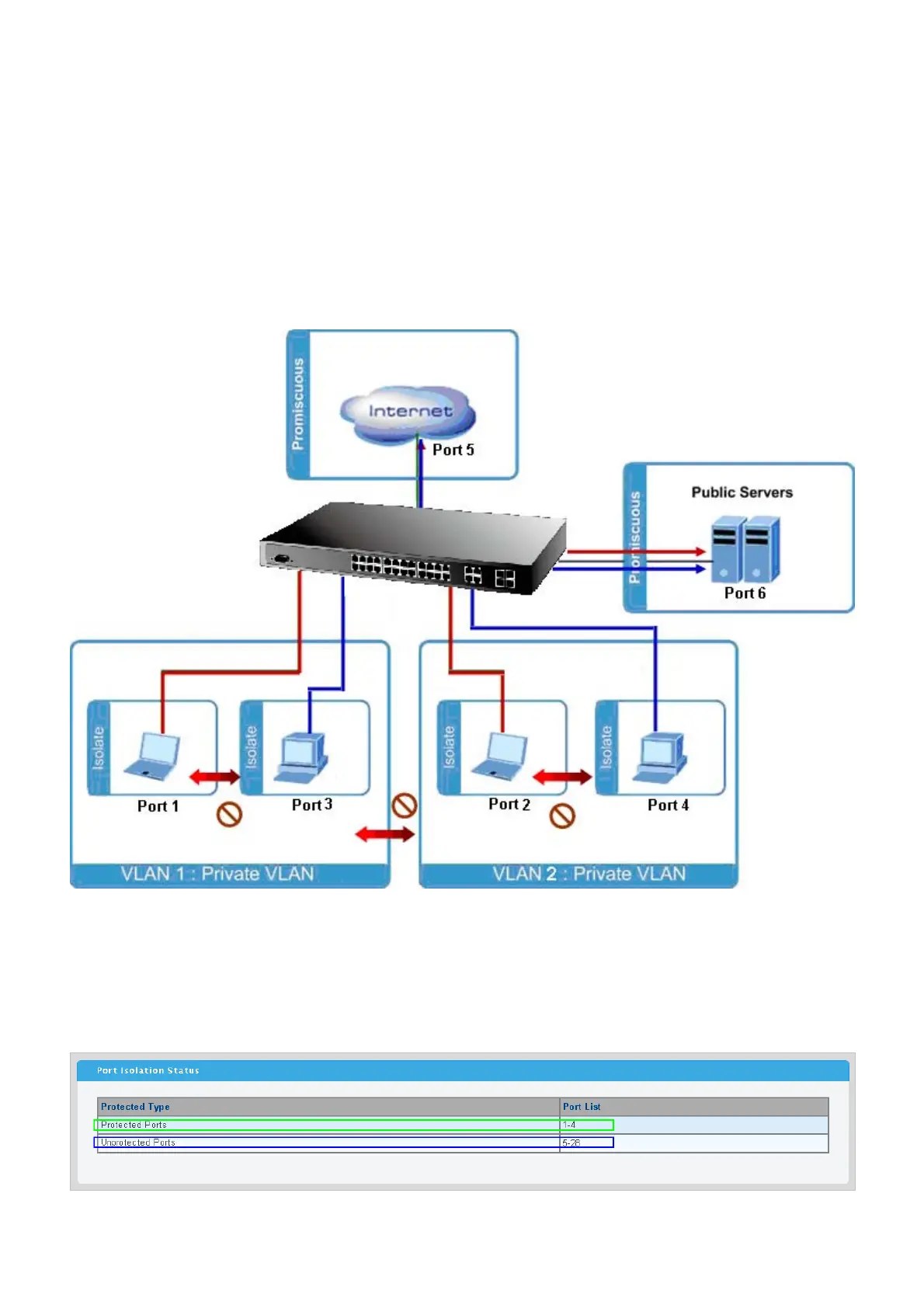

The diagram shows how the Managed Switch handles isolate and promiscuous ports, and the each PCs are not able to access
each other PCs of each isolate port. But they all need to access with the same server/AP/Printer. The screen in Figure 4-5-18
appears. This section will show you how to configure the port for the server – that could be accessed by each isolate port.
Setup steps
1. Assign egress port list :
Protected port list: Port-1~Port-4
Unprotected port list: Port-5~Port-28
The screen in Figure 4-5-19 appears.
Figure 4-5-19 Protected port setting
