User’s Manual of WGSW-28040 / 28040P
103
2. Assign Port-7 to both VLAN 2 and VLAN 3 at the VLAN Member configuration page.
3. Define a VLAN 1 as a “Public Area” that overlapping with both VLAN 2 members and VLAN 3 members.
4. Assign the VLAN Trunk Port to be the member of each VLAN – which wants to be aggregated. At this sample, add Port-7 to
be VLAN 2 and VLAN 3 member port. The screen in Figure 4-5-16 appears.

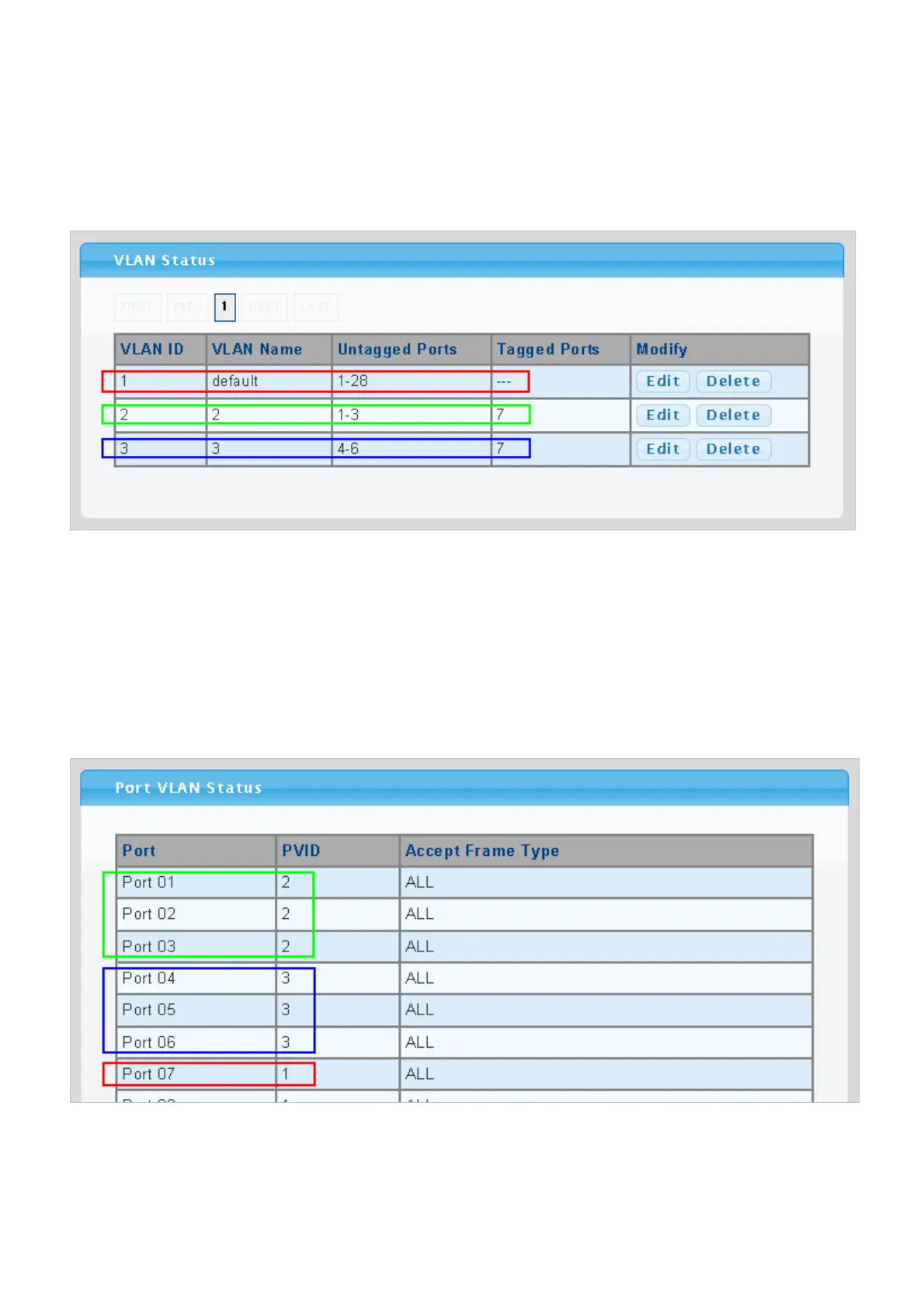

Figure 4-5-16 VLAN overlap port setting & VLAN 1 – The public area member assign
5. Specify Port-7 to be the 802.1Q VLAN Trunk port, and the Trunking port must be a Tagged port while egress.
6. Assign PVID for each port:
Port-1,Port-2 and Port-3 : PVID=2
Port-4,Port-5 and Port-6 : PVID=3
The screen in Figure 4-5-17 appears.
Figure 4-5-17 The configuration of VLAN Trunk port
