Buttons
: Refreshes the displayed table starting from the "Start from MAC address" and "VLAN" input fields.
: Flushes all dynamic entries.
: Click to add dunamic MAC address to static MAC address.
4.11.1 Statics MAC Table Setting
The static entries in the MAC table are shown in this table. The MAC table is sorted first by VLAN ID and then by MAC address.
The Static MAC Setting screen in Figure 4-11-2 appears.

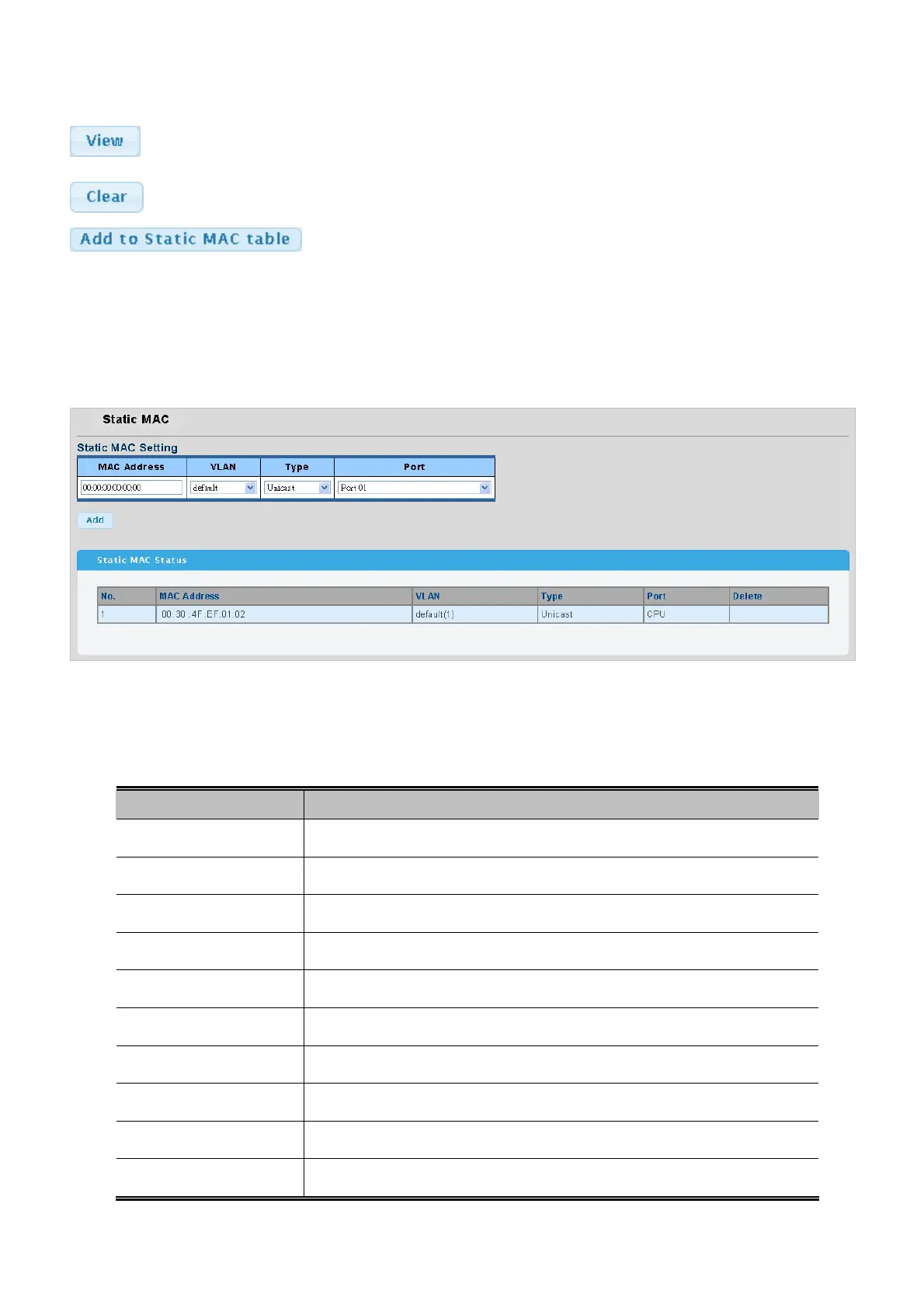

Figure 4-11-2 Statics MAC Setting page screenshot
The page includes the following fields:
Object Description
• MAC Address
Physical address associated with this interface.
• VLAN
ID of configured VLAN (1-4094).
• Type
Specifies the MAC address type.
• Port
Select port for this drop down list.
• No.
This is the number for entries
• MAC Address
The MAC address for the entry.
• VLAN
The VLAN ID for the entry.
• Type
Display the current type.
• Port
Display the current port.
• Delete
Check to delete the entry.
