4.6.4 MST Configuration
This page allows the user to configure MST Configuration. The MST Configuration screen in Figure 4-6-8, Figure 4-6-9 & Figure
4-6-10 appears.

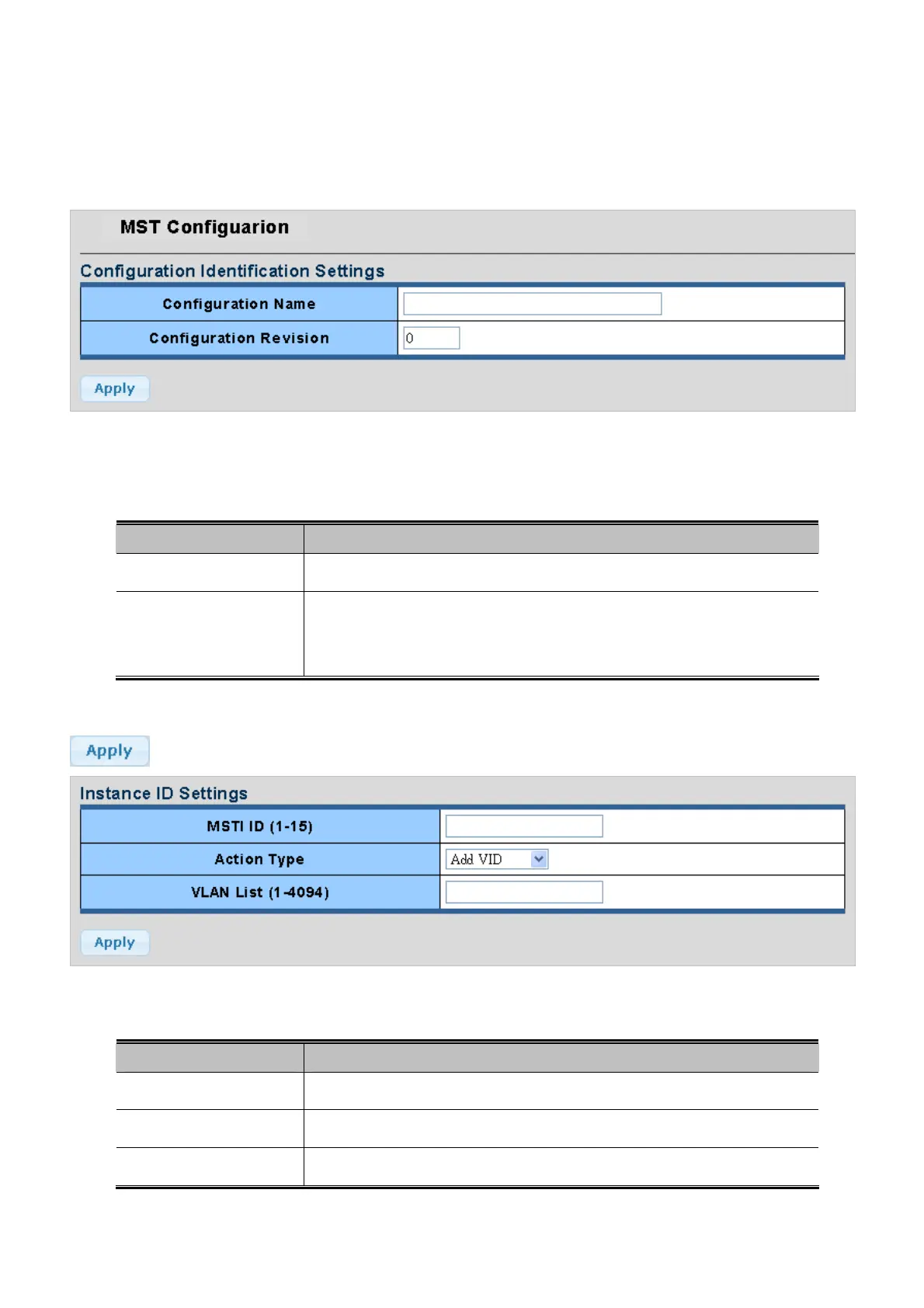

Figure 4-6-8 Configuration Identification Settings page screenshot
The page includes the following fields:
Object Description
• Configuration Name
Identifier used to identify the configuration currently being used.
• Configuration Revision
Identifier used to identify the configuration currently being used. The values
allowed are between 0 and 65535.
The default value is 0.
Buttons
: Click to apply changes.
Figure 4-6-9 Instance ID Settings page screenshot
The page includes the following fields:
Object Description
• MSTI ID (1-15)
Allow assign MSTI ID. The range for the MSTI ID is 1-15.
• Action Type
Add / remove a new VLAN group to the current list.
• VLAN List (1-4094)
Allow assign VLAN list for special MSTI ID. The range for the VLAN list is 1-4094.
To Next Page
