User’s Manual of WGSW-28040 / 28040P
102

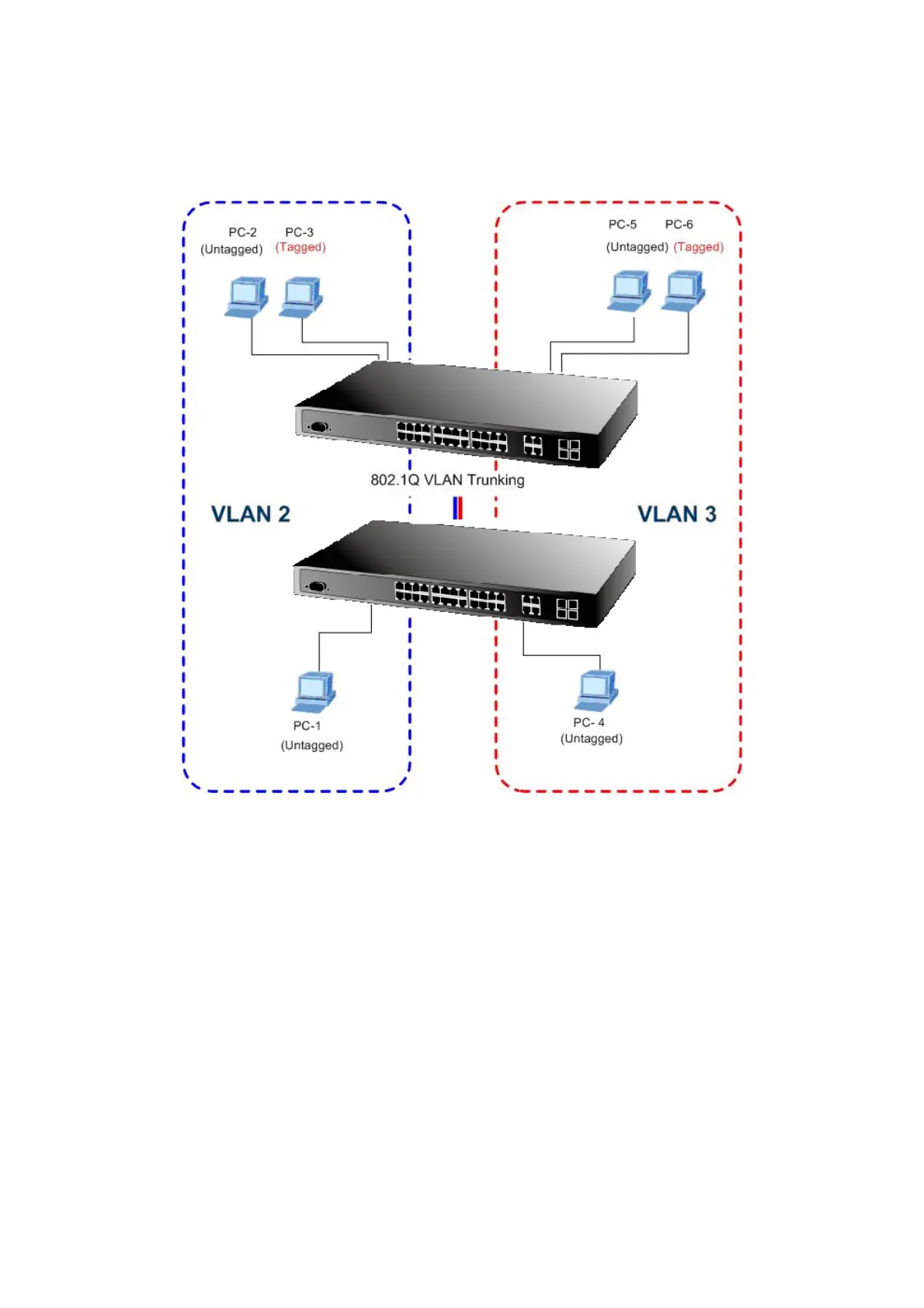

4.5.6.2 VLAN Trunking between two 802.1Q aware switch
The most cases are used for “Uplink” to other switches. VLANs are separated at different switches, but they need to access
with other switches within the same VLAN group. The screen in Figure 4-5-15 appears.
Setup steps
1. Create VLAN 2 Group
Add VLAN Group 2 with VID=2
Untagged Port : Port-1, Port-2 & Port-3
Tagged Port : Port-7
2. Create VLAN 3 Group
Add VLAN Group 3 with VID=3
Untagged Port : Port-4, Port-5 & Port-6
Tagged Port : Port-7
About the VLAN ports connect to the hosts, please refer to 4.5.7.1 examples. The following steps will focus on the VLAN Trunk
port configuration.
1. Specify Port-7 to be the 802.1Q VLAN Trunk port.
To Next Page
