User’s Manual of WGSW-28040 / 28040P
135

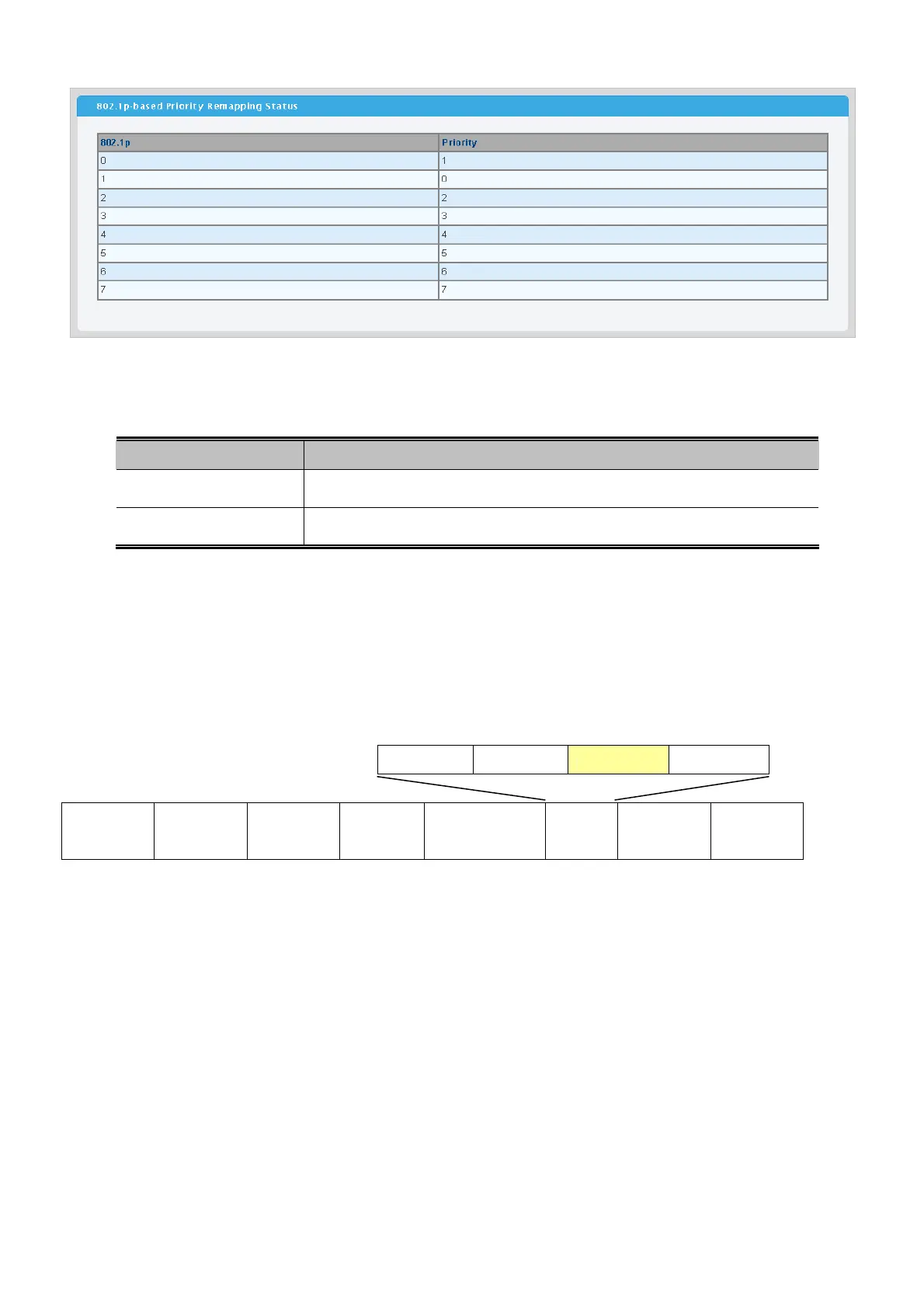

Figure 4-8-4 802.1p-based Priority Remapping Status page screenshot
The page includes the following fields:
Object Description
• 802.1p
Display the current 802.1p.
• Priority (0-7)
Display the current priority.
4.8.4 DSCP-based Priority
DiffServ Code Point (DSCP) － is the traffic prioritization bits within an IP header that are encoded by certain applications
and/or devices to indicate the level of service required by the packet across a network.
4 bit 4 bit 6 bit 2 bit
VER=0100 Header Size
DiffServ RES
Preamble
Destination
Address
Source
Address
VLAN TAG
(Optional)
Ethernet Type
(0800)
Data FCS
6 bytes 6 bytes 4 bytes 2 bytes 2 bytes 46-1517 bytes 4 bytes
The DSCP-based Priority page provides fields for defining output queue to specific DSCP fields. When TCP/IP’s TOS/DSCP
mode is applied, the PoE Switch recognizes TCP/IP Differentiated Service Codepoint (DSCP) priority information from the
DS-field defined in RFC2474.
This page provides DSCP-based Priority. The DSCP-based Priority screen in Figure 4-8-5 & Figure 4-8-6 appears.
