4.12 Diagnostics
This section provide the Physical layer and IP layer network diagnostics tools for troubleshoot. The diagnostic tools are
designed for network manager to help them quickly diagnose problems between point to point and better service customers.
Use the Diagnastics menu items to display and configure basic administrative details of the Managed Switch. Under System the
following topics are provided to configure and view the system information:
This section has the following items:
Ping Test
The ping allow you to issue ICMP PING packets to troubleshoot IP
connectivity issues. The Managed Switch transmit ICMP packets, and the
sequence number and roundtrip time are displayed upon reception of a reply.
4.12.1 Ping Test
This page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues.
After you press “Apply”, ICMP packets are transmitted, and the sequence number and roundtrip time are displayed upon
reception of a reply. The page refreshes automatically until responses to all packets are received, or until a timeout occurs. The
ICMP Ping screen in Figure 4-12-1 appears.

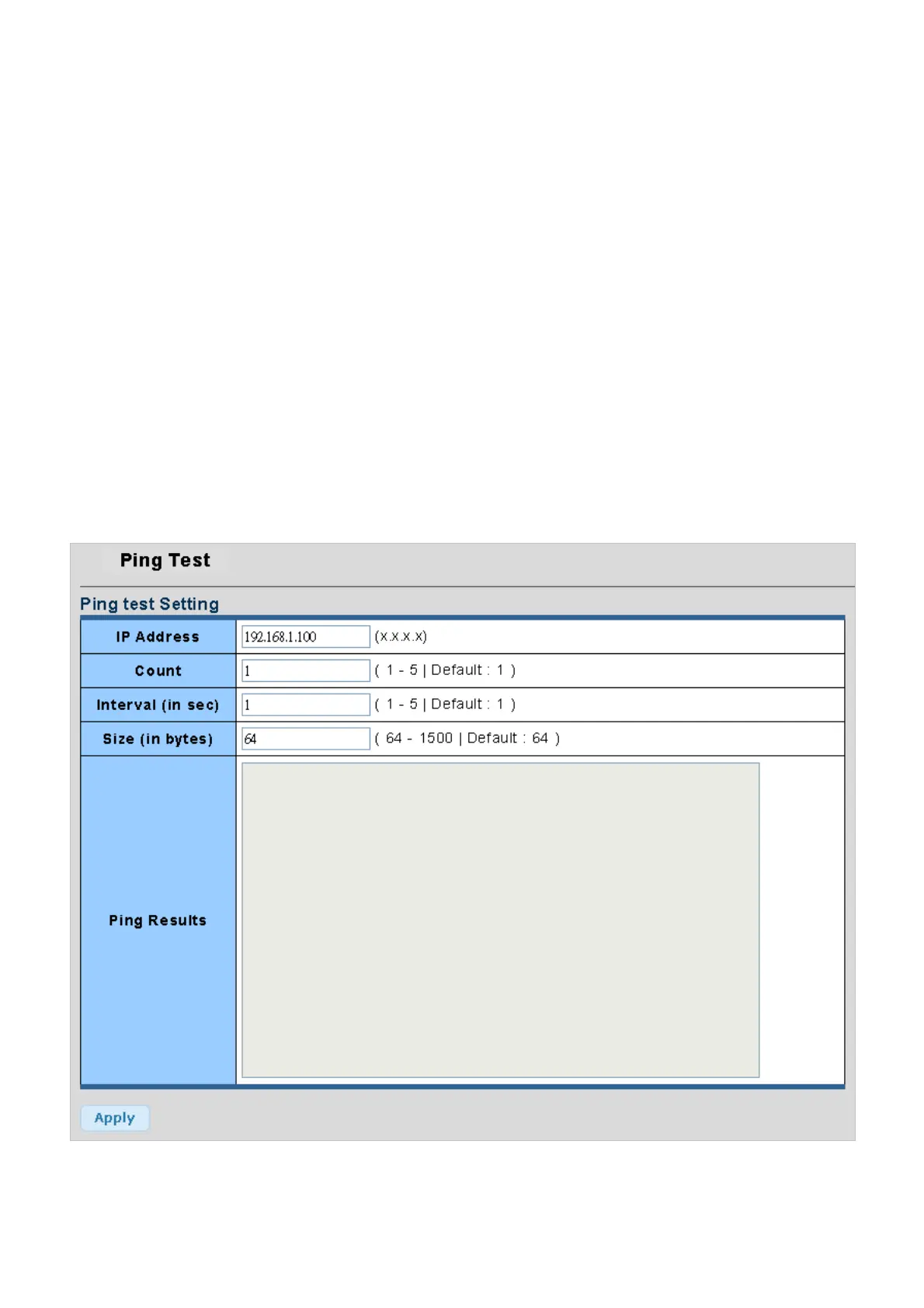

Figure 4-12-1 ICMP Ping page screenshot
