User’s Manual of WGSW-28040 / 28040P
89
The page includes the following fields:
Object Description
• VLAN ID
Indicates the ID of this particular VLAN.
• VLAN Name
Indicates the name of this particular VLAN.
• Untagged Ports Select
Select port number for this drop down list to transmit outgoing frames without
VLAN-Tagged.
• Tagged Ports Select
Select port number for this drop down list to transmit outgoing frames with
VLAN-Tagged.
Buttons
: Click to add new VLAN.

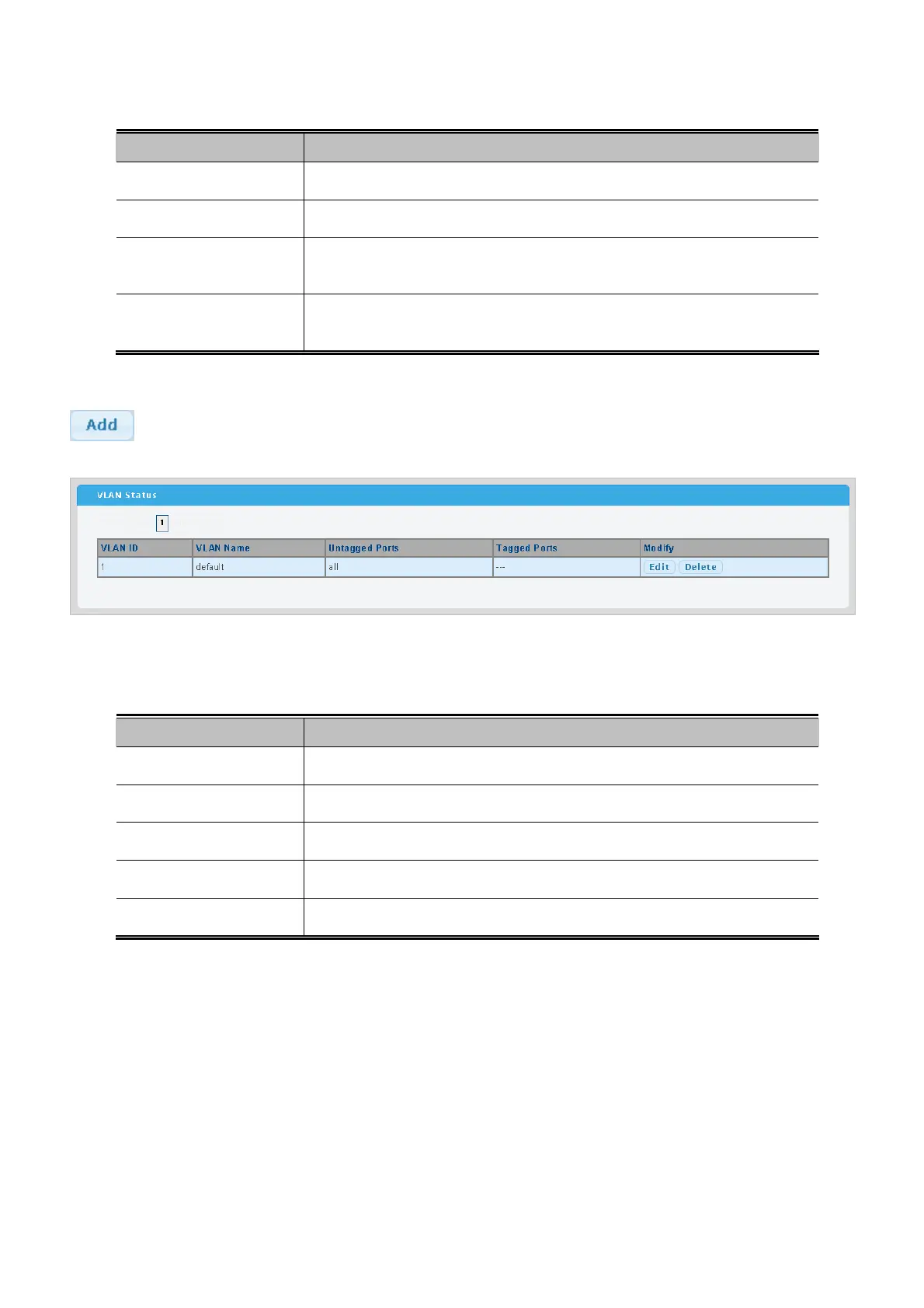

Figure 4-5-2 VLAN Status page screenshot
The page includes the following fields:
Object Description
• VLAN ID
Display the current VLAN ID entry.
• VLAN Name
Display the current VLAN name.
• Untagged Ports
Display the current untagged ports.
• Tagged Ports
Display the current tagged ports.
• Modify
Click to edit or delete the VLAN configuration.
