User’s Manual of WGSW-28040 / 28040P
24
Off: If LNK/ACT LED light-> indicate that the port is operating at 10/100Mbps
If LNK/ACT LED Off -> indicate that the port is link down
■ 1000Base-SX/LX SFP interfaces (shared with Port-25 to Port-28)
LED Color Function
Lights:
To indicate the link through that port is successfully established.
LNK/ACT Green
Blink:
To indicate that the switch is actively sending or receiving data over that port.
Lights: indicate that the port is operating at 1000Mbps.
1000 Green
Off: If LNK/ACT LED light-> indicate that the port is operating at 100Mbps
If LNK/ACT LED Off -> indicate that the port is link down
WGSW-28040P LED indication

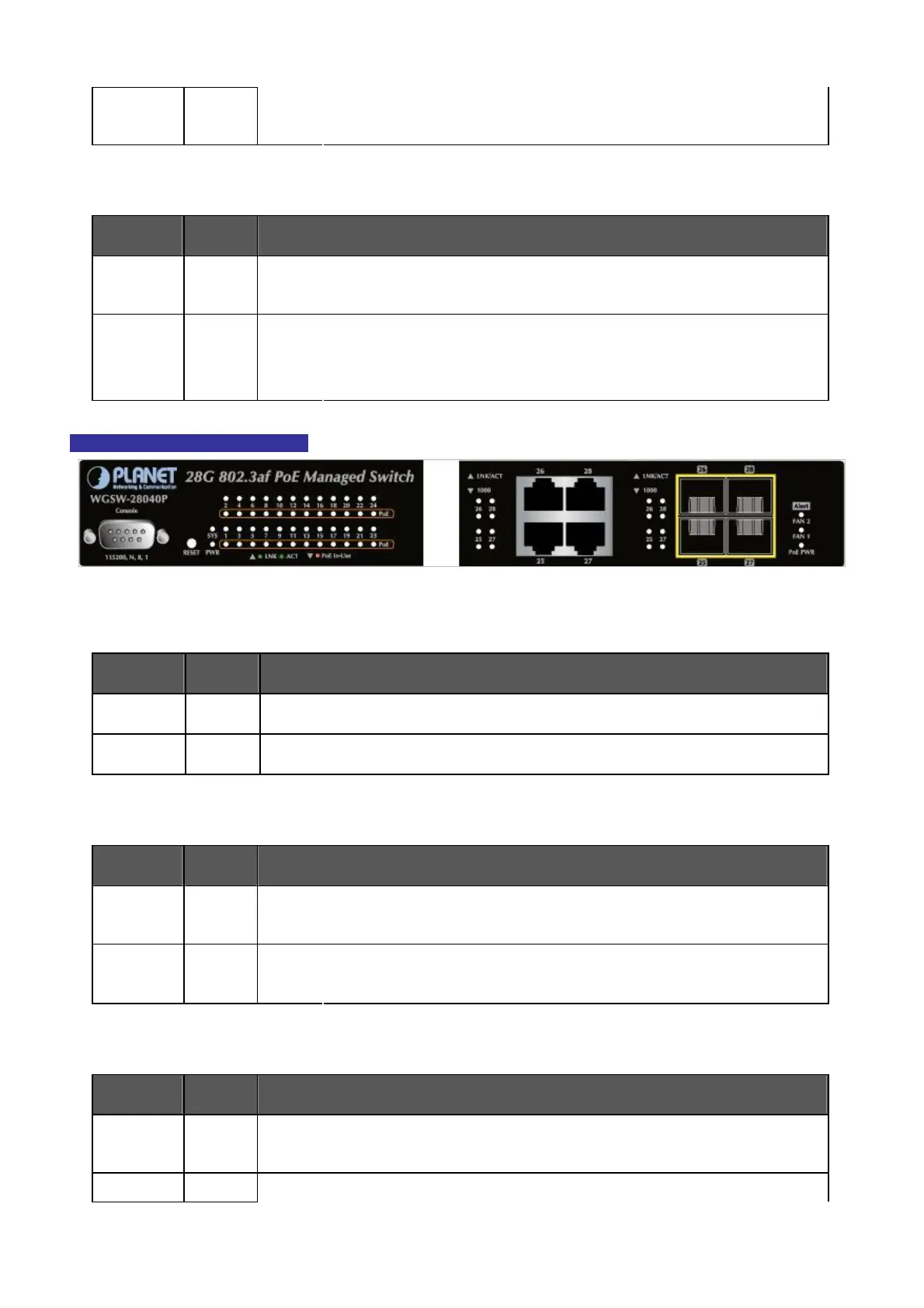

Figure 2-4 WGSW-28040P LED panel
■ System
LED Color Function
PWR
Green
Lights to indicate that the Switch has power.
SYS
Green
Lights to indicate the system is working.
■ 10/100/1000Base-T interfaces
LED Color Function
Lights:
To indicate the link through that port is successfully established.
LNK/ACT Green
Blink:
To indicate that the switch is actively sending or receiving data over that port.
Lights:
To indicate the port is providing 48VDC in-line power.
PoE In-Use Orange
Off:
To indicate the connected device is not a PoE Powered Device (PD)
■ 1000Base-SX/LX SFP interfaces (shared with Port-25 to Port-28)
LED Color Function
Lights:
To indicate the link through that port is successfully established.
LNK/ACT Green
Blink:
To indicate that the switch is actively sending or receiving data over that port.
1000 Green Lights: indicate that the port is operating at 1000Mbps.
