Chapter 1-First Time Installation and Configuration
Polycom, Inc. 1-25

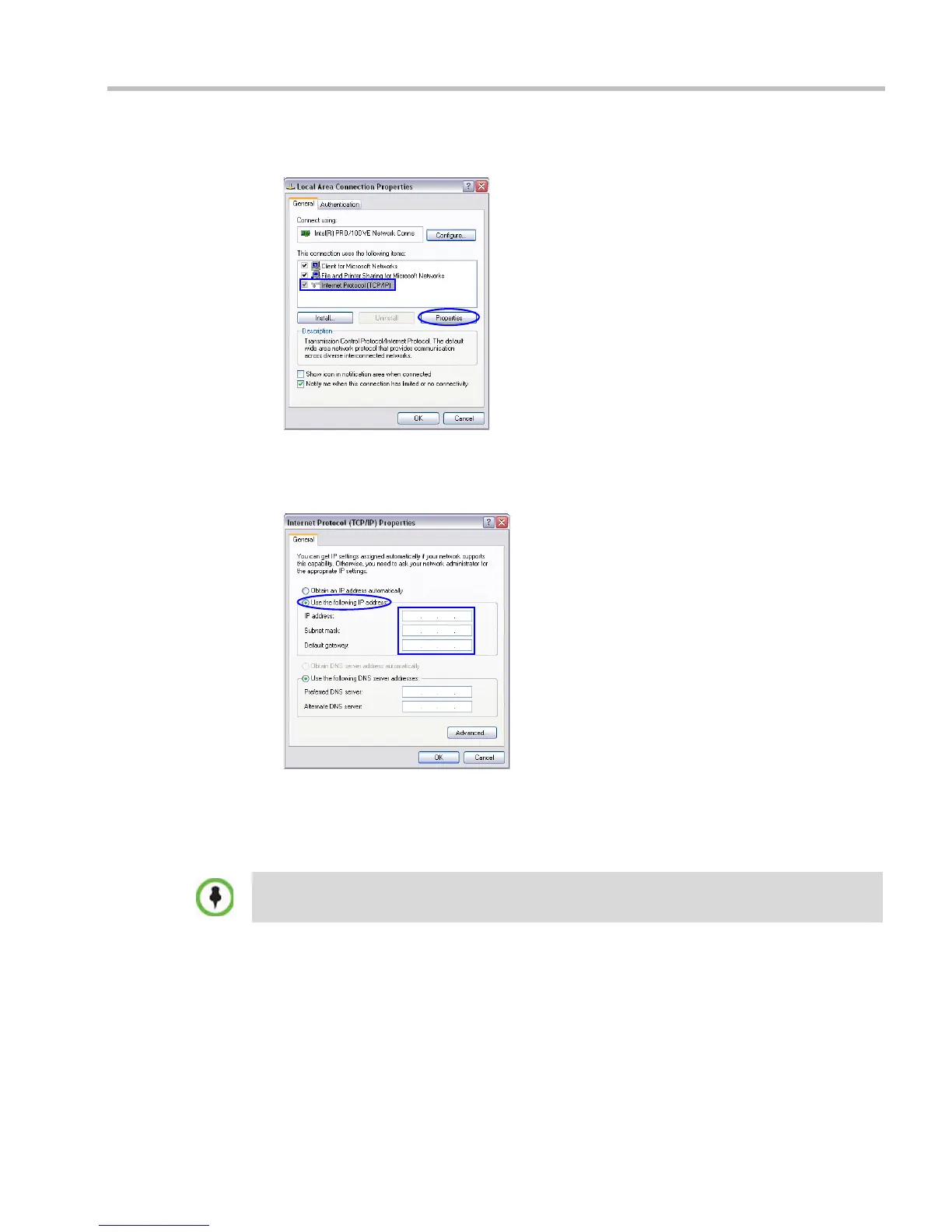

4 In the Local Area Connection Properties dialog box, select Internet Protocol [TCP/IP] >
Properties.
5 In the Internet Protocol (TCP/IP) Properties dialog box, select Use the following IP
address.
6 Enter the IP address, Subnet mask and Default gateway for the workstation.
The workstation’s IP address should be in the same network neighborhood as the
RMX’s Control Unit IP address.
Example: IP address – near
192.168.1.nn
The Subnet mask and Default gateway addresses should be the same as those for the
RMX’s Default Management Network.
The addresses needed for connection to the RMX’s Default Management Network are
listed in Table 1-3.
None of the reserved IP addresses listed in Ta ble 1- 3 should be used for the IP Address.
