ABL800 FLEX Operator's Manual 3. Installation and setup
Quality control setup, Continued
Rilibäk Ranges
(continued)
Step Action
7.
To select the desired +/- range press the desired radio button.
8.
Enter the desired +/- range in the "Ranges" box.
Press Back to return to the Rilibäk Ranges screen. The added Rilibäk
rule is now shown in the screen.
9.
To edit a Rilibäk rule, do the following:
Step Action
1.

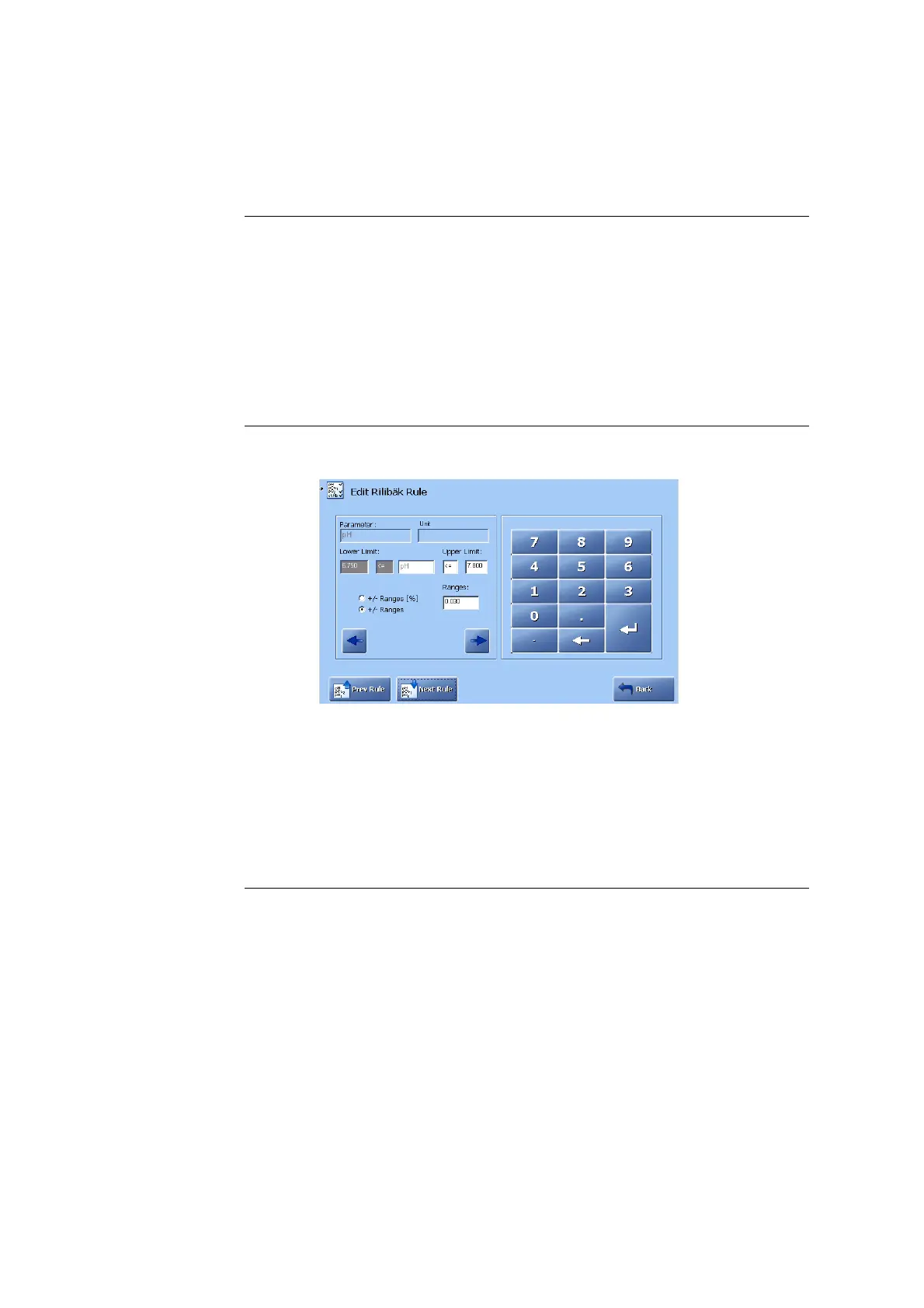

Select the desired rule in the Rilibäk Ranges screen and press Edit to
display the screen below:
2.
Use the Right or Left arrows to jump between the input boxes and edit
the desired values.
Press Back to return to the Rilibäk Ranges screen.
3.
To remove a Rilibäk rule, do the following:
Step Action
Highlight the desired rule in the Rilibäk Ranges screen and press
Delete.
1.
NOTICE: When a quality control measurement violates an applied Rilibäk Rule, a
red R is shown in front of the parameter name in the result.
3-47
