3. Installation and setup ABL800 FLEX Operator's Manual
Communications, Continued
Step Action
LIS/HIS
Connection
Setup
(continued)
a. Connection specifications for serial low-level protocol:
Use the up and down arrows in each box to select baud rate, stop bits,
data bits and parity. Port number should be COM2.
6.
Box Option
Baud rate 1200, 2400, 4800, 9600, 14400, 19200, 38400, 115200
Data bits 5, 6, 7, 8
Stop bits 1, 1.5, 2
Parity Even, odd, none.
b. Connection specifications for network low-level protocol:
Touch the screen to highlight the following boxes one after another:
Server address − Port number − Reconnect Interval (time interval in
seconds to attempt re-connection if connection failed) – Retransmit
max – Transmit timeout.
Use the keypad/keyboard to enter the relevant information.
c. Connection specifications for POCT1-A DML low-level protocol:
Touch the screen to highlight the following boxes one after another:
Server address − Port number − Reconnect Interval.
Use the keypad/keyboard to enter the relevant information.
This program allows you to connect the analyzer to the QA portal.
If the QC Portal communication is enabled, the analyzer will automatically send
QC results and Cal Verification measurements to the QA portal.

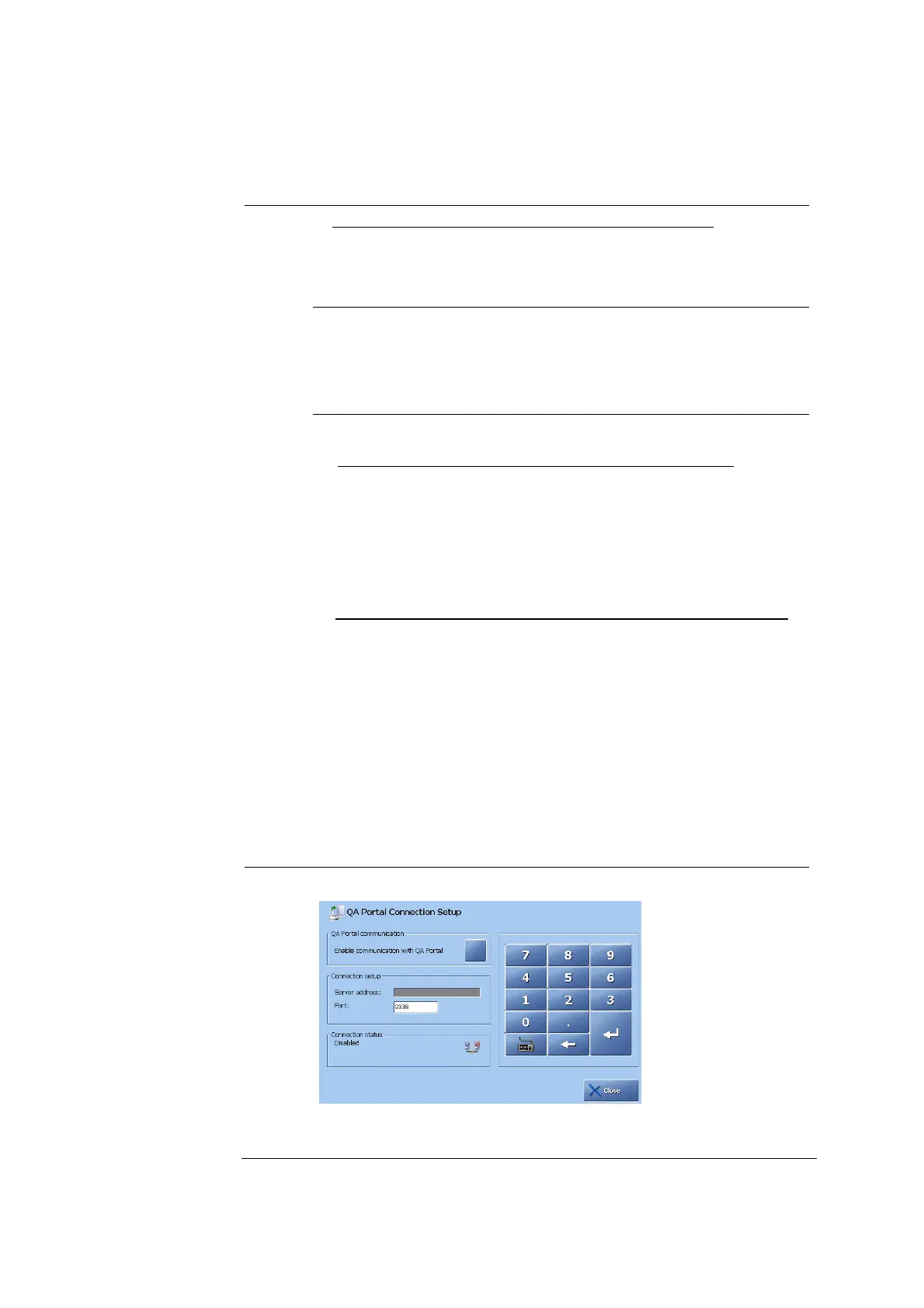

QA Portal
To enable communication with the QA portal, do the following:
Step Action
1.
Touch and highlight the "Server address" box.
Type in the TCP/IP address of your QA portal, using the screen
keypad or keyboard.
