ABL800 FLEX Operator's Manual 2. What Is what
Screen elements, Continued

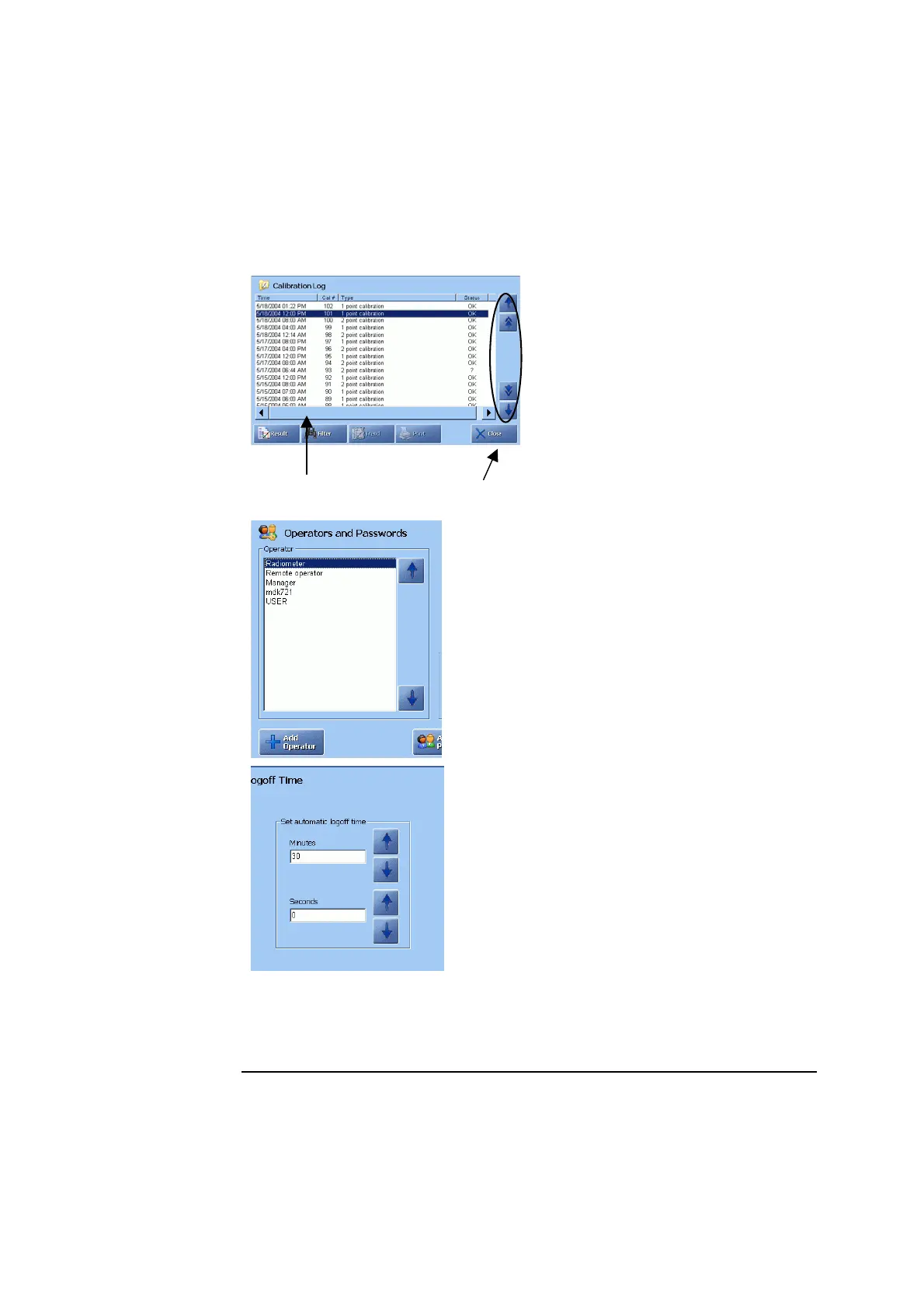

Text boxes show a text in the form of
lists, items, tables, etc. Various types
of text boxes and navigation in them
are given on the next page.
Center section
(continued)
The first line is highlighted. To
highlight another line, touch it on the
screen or use up and down arrow scroll
keys displayed on the screen beside a
relevant text box.
A scroll bar scrolls a text box
horizontally when the text box extends
beyond the area available on the
screen.
A single-arrow scroll button
highlights one item at a time upward or
downward.
A double-arrow scroll button
highlights an item at the top or the
bottom of the screen.
Scroll bar
Scroll keys
The first line is highlighted. To
highlight another line, use the up and
down arrow buttons or touch this line
in the box.
Enter the data using the screen keypad
or keyboard.
In this text box you can select one of
the predefined options.
Use the up and down arrow buttons to
select an item.
NOTICE: If the text box already
contains an entry, it will be overwritten
and cannot be retrieved.
Text boxes are designated in quotation marks, e.g. "Operator". The same applies to
the other elements on the center section of the screen: names of the columns (e.g.
"Status"), input fields (e.g. "Draw time"), etc.
Continued on next page
