RayTek CS210 - Position Indicator Wiring

Drawings
120 Rev. B4 Feb 2015 CS210

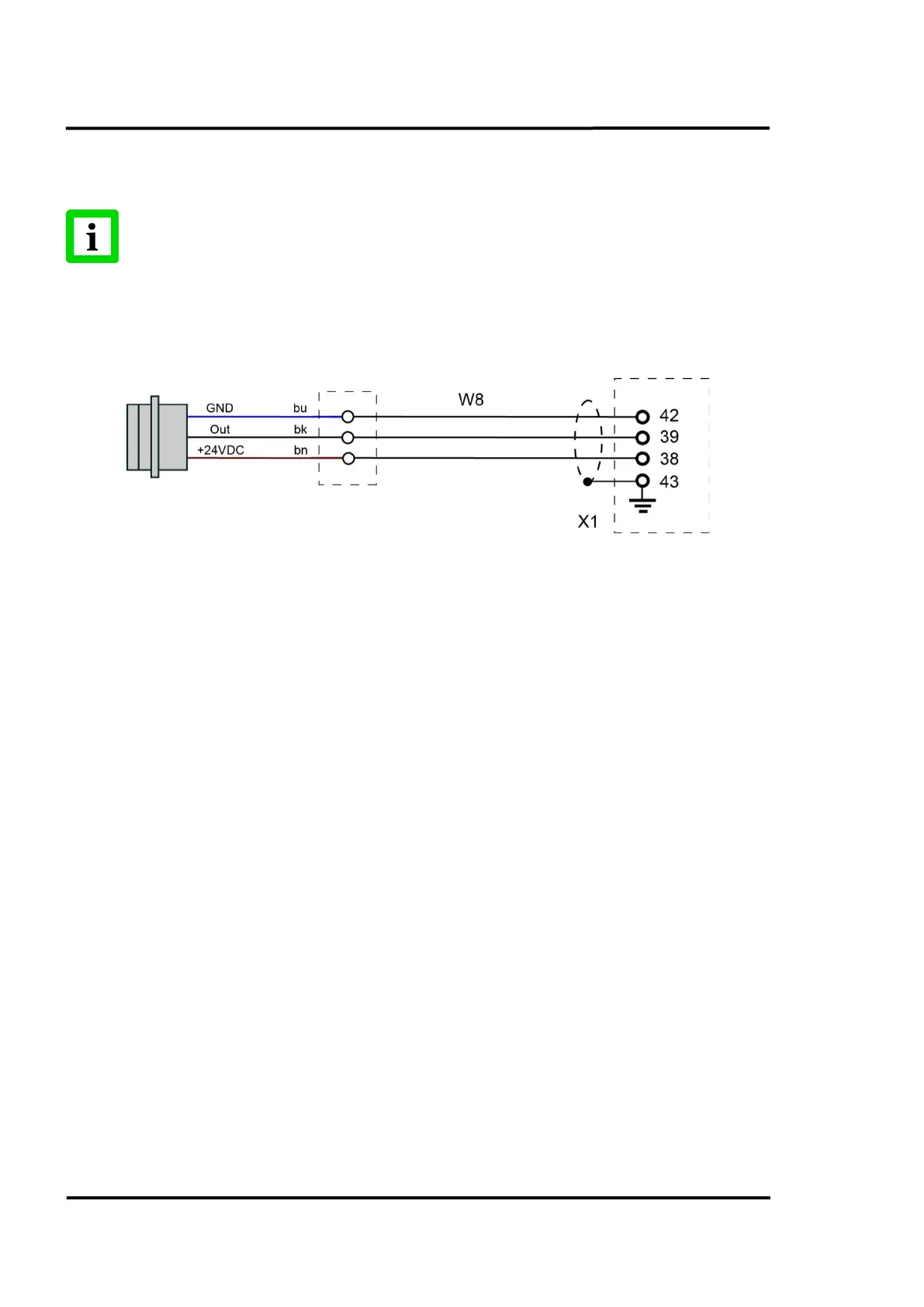

13.6 Position Indicator Wiring
The W8 cable for the position indicator is only to be wired to the system connection box
like shown below for the standard CS210 system! In case of using the LRM accessory
the position indicator is connected to the LRM connection box in the field directly!
Junction Box
Position Indicator
System Connection Box
