RayTek CS210 - Output Modules; Digital Output Module 7043 (16 Channels); Relay Output Module 7067 (7 Channels)

Appendix – Technical Data
132 Rev. B4 Feb 2015 CS210
14.6 Output Modules
Dimensions (W x L x H) 72 x 122 x 25 mm (2.8 x 4.8 x 1 in.)
14.6.1 Digital Output Module 7043 (16 channels)

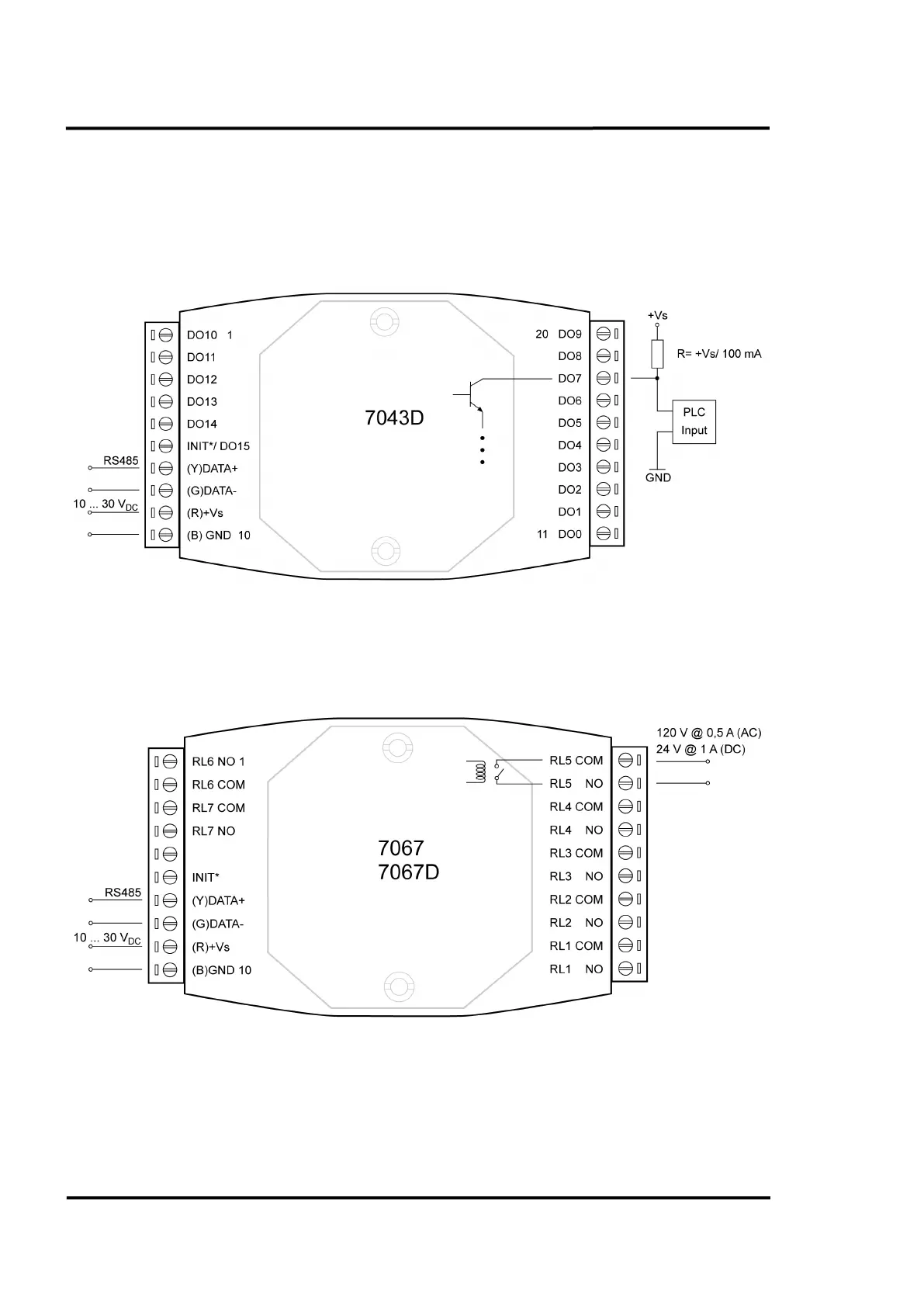

Figure 118: Wiring Example for connection to a PLC
14.6.2 Relay Output Module 7067 (7 channels)
Figure 119: Wiring the 7067 Module
