13.8 LRM Wiring
The internal wiring for the position indicators 4, 5, 6 – the dotted lines – does not come as factory default.

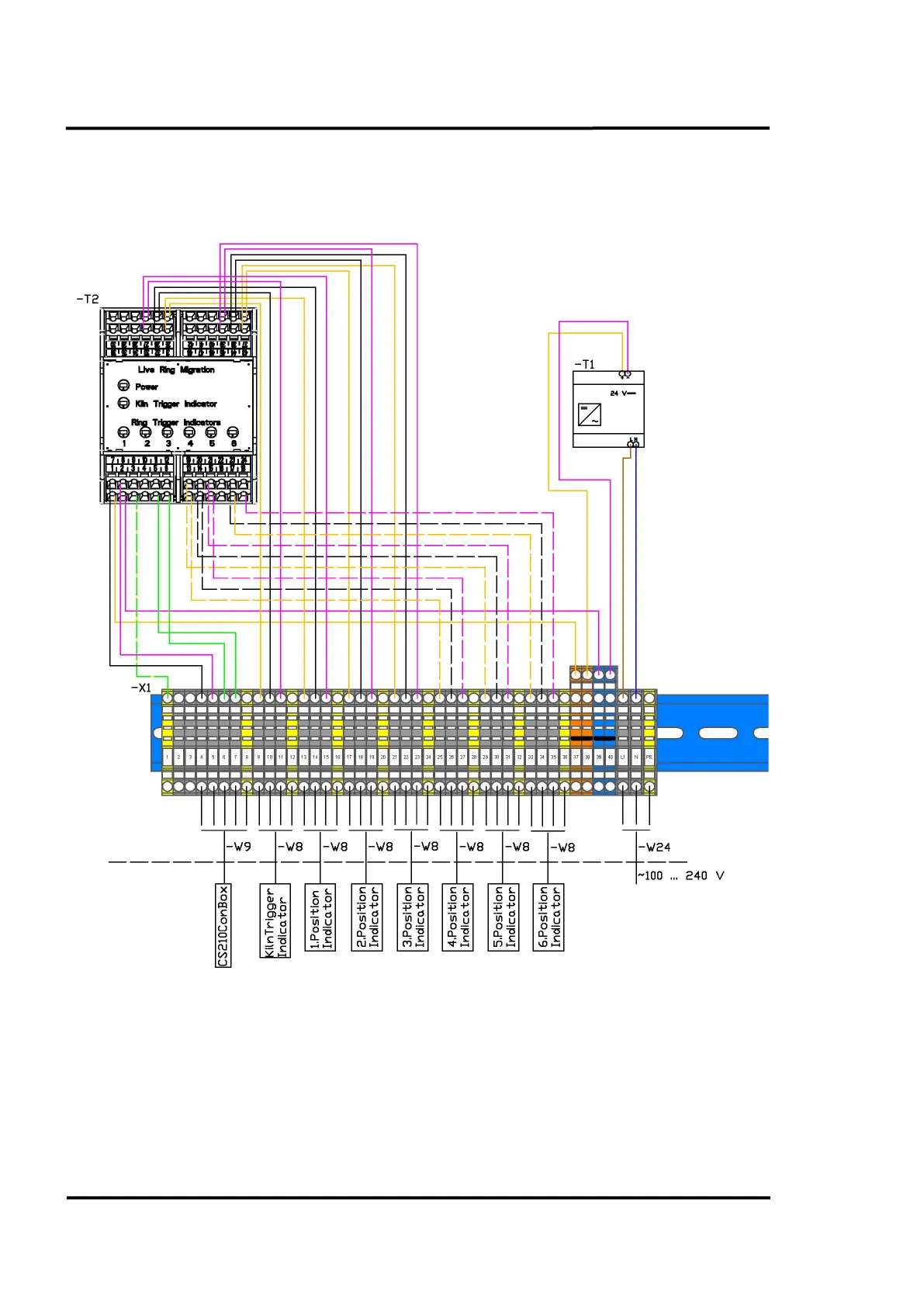

Figure 113: Wiring Scheme for LRM Remote Control Box
