Appendix – Technical Data
CS210 Rev. B4 Feb 2015 127
14. Appendix – Technical Data

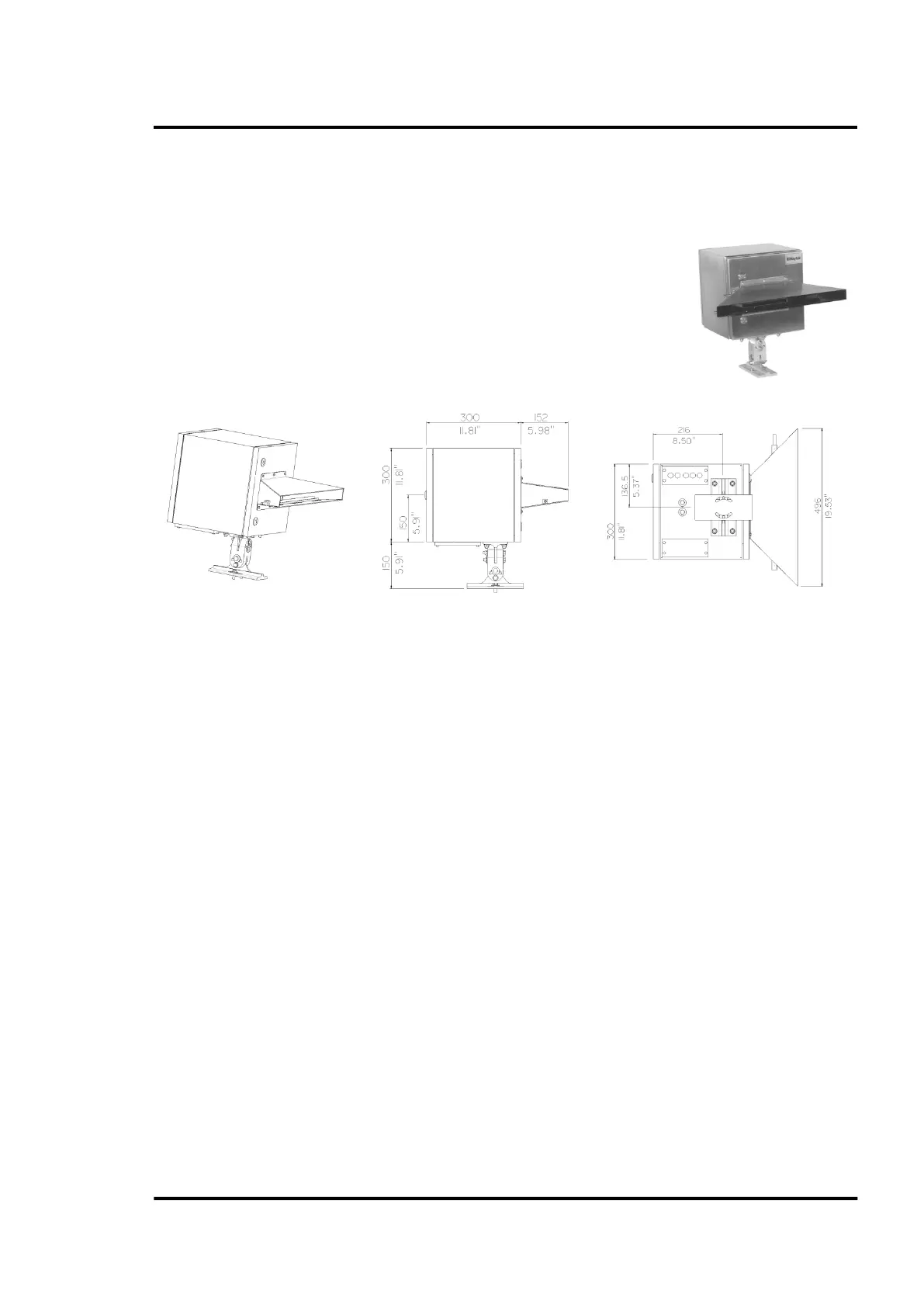

14.1 Protective Housing
To protect the linescanner from the high temperatures and poor air
quality near the kiln, the scanner is enclosed in a rugged stainless steel
protective housing. Air purging and/or water-cooling is available, if
required (CS212 system - contains two protective housings).
Part No. Description
XXXSYSPHSS Linescanner Protective Housing with quick-release rail mounted
scanning system
Material:
Box Stainless Steel 1.4301
Seal EPDM, CR
Mounting Bracket galvanized steel
Dimensions (h x w x d) 300 x 300 x 300 mm (11.81 x 11.81 x 11.81 in.)
- with mounting frame height is about 450 mm (17.72 in.)
Weight about 20 kg (44 lb), linescanner included
Protection rate IP54
Window transmission 0.9
Air purge:
Connector outer diameter 8 mm (0.315 in.)
Pressure 1.5 to 3 bar (air must be cleaned)
Scope of delivery: stainless steel box with air purge and all mounting parts
adjustable mounting bracket allowing aiming along any axis
grommets and grommet plate
spare removable window
Options: air – water heat exchanger
