14.5 Position Indicator

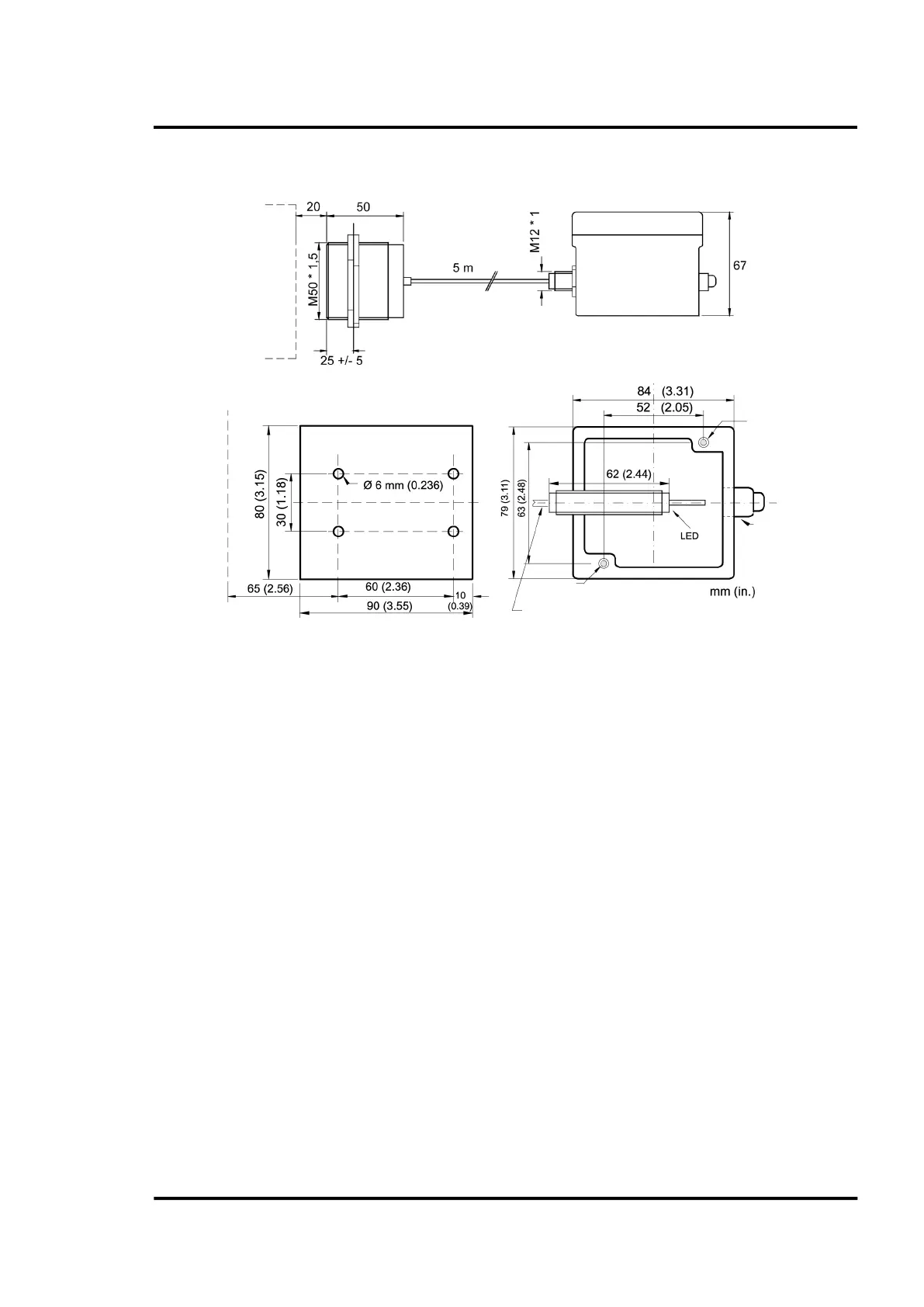

Figure 117: Dimensions of Position Indicator and Junction Box
XXXSYSECPI Position indicator, proximity switch for synchronizing process and program
- tough design
- high switch distance
- max. ambient temperature range: -25 to 230°C (-13 to 446°F)
- simple mounting with mounting plate
- separate junction box
Switching distance max. 20 mm (0.79 in.)
positioned to steel St37, sized 50 mm in square (2.16 in. in square)
Temperature range
position indicator: -25 to 230°C (-13 to 446°F)
junction box: -25 to 70°C (-13 to 158°F)
Protection rate IP67
Length of cable 5 m (15 ft)
Output No. 2: active 24 V / 300 mA max.
short circuit protected
Junction Box Pin 2 (brown cable): + 24 VDC ( 7 to 40 VDC), ripple max. 15 %
Pin 3 (black cable): output active
Pin 1 (blue cable): 0 V
Junction box
Trigger bar
Position indicator
PG9 cable gland for
field cable
Mounting hole
d=5.2 mm (0.205)
Mounting hole
d=5.2 m
m (0.205)
Electronic component
with cable to the sensor head
