Appendix – Technical Data
130 Rev. B4 Feb 2015 CS210

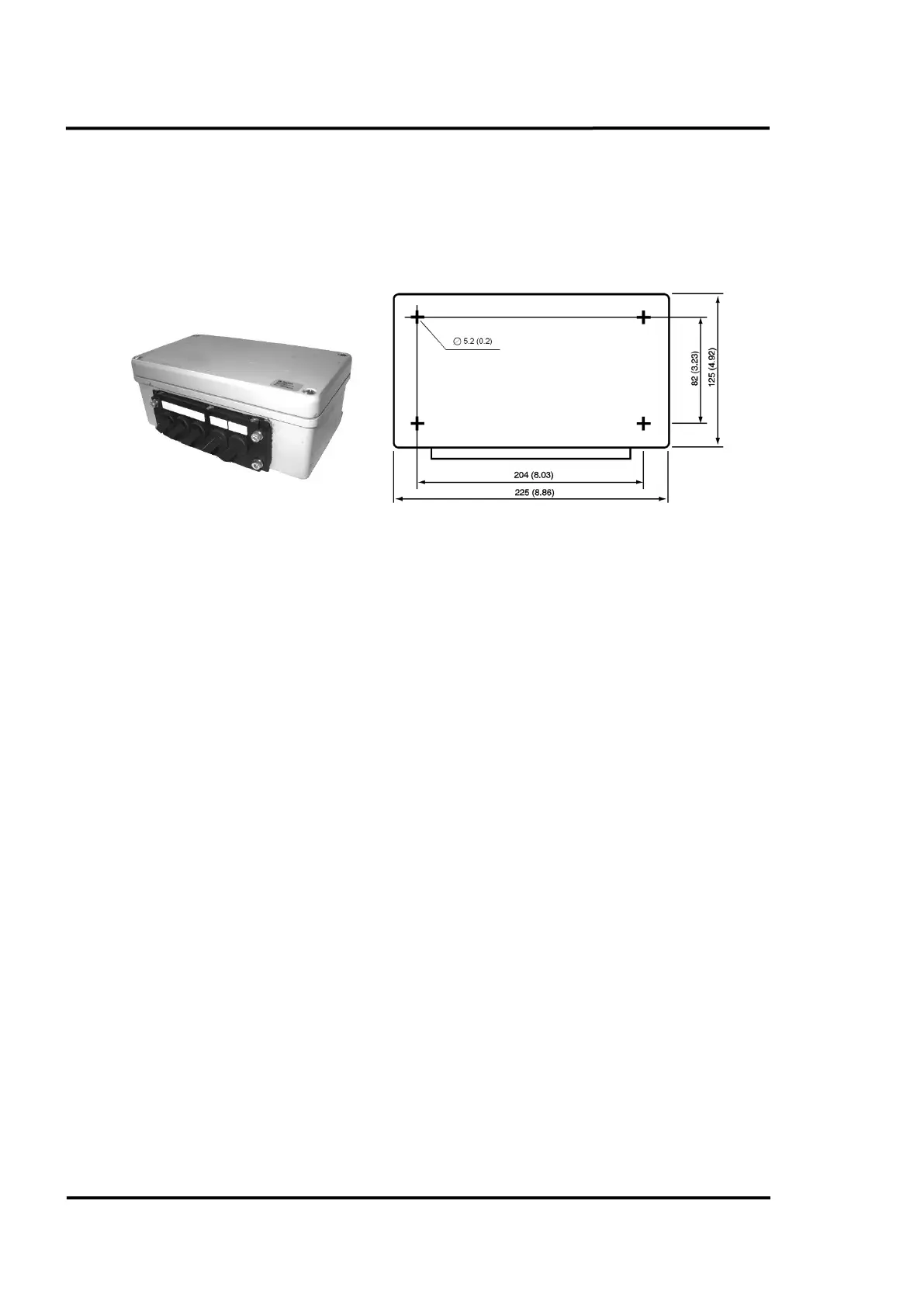

14.4 Connection Box for Accessories
The connection box connects the cables of a field device (shadow pyrometer, burning zone pyrometer,
or LRM) with the customer cables in the field.
All connection boxes come with the same housing but have different internal electrical wiring.
Part No. Description
XXXCS200MRCON MR connection box (for Burning Zone Monitoring)
XXXCS200MICON MI connection box (for Shadow Monitoring)
Technical Data:
Box Aluminum die cast
Cable Grommet Plate Polyamide, halogen free and thermoplastic rubber
Temperature Range -40 to +80°C (-40°F to 168°F)
Dimensions (h x w x d) 90 x 225 x 130 mm (3.54 x 8.85 x 5.11 in.)
Weight 1.8 kg (3.96 lb)
Protection Rate: IP65 (NEMA 4)
Delivery: Connection Box
Cable grommet plate
Set of grommets for different cable sizes
