Appendix – Technical Data
128 Rev. B4 Feb 2015 CS210
14.2 Connection Box
The connection box is used for the following two items:
• XXXCS210CONBOX System connection box in the field
• XXXHSFICBOX Fibre Optic Converter Box in the control room
Technical Data:
Box sheet steel, powder-coated
Temperature Range 0 to 50°C (32 to 122°F)
-30°C (-22°F) with internal heater XXXSYSCONNBOXHEAT for the
system connection box (XXXCS210CONBOX)

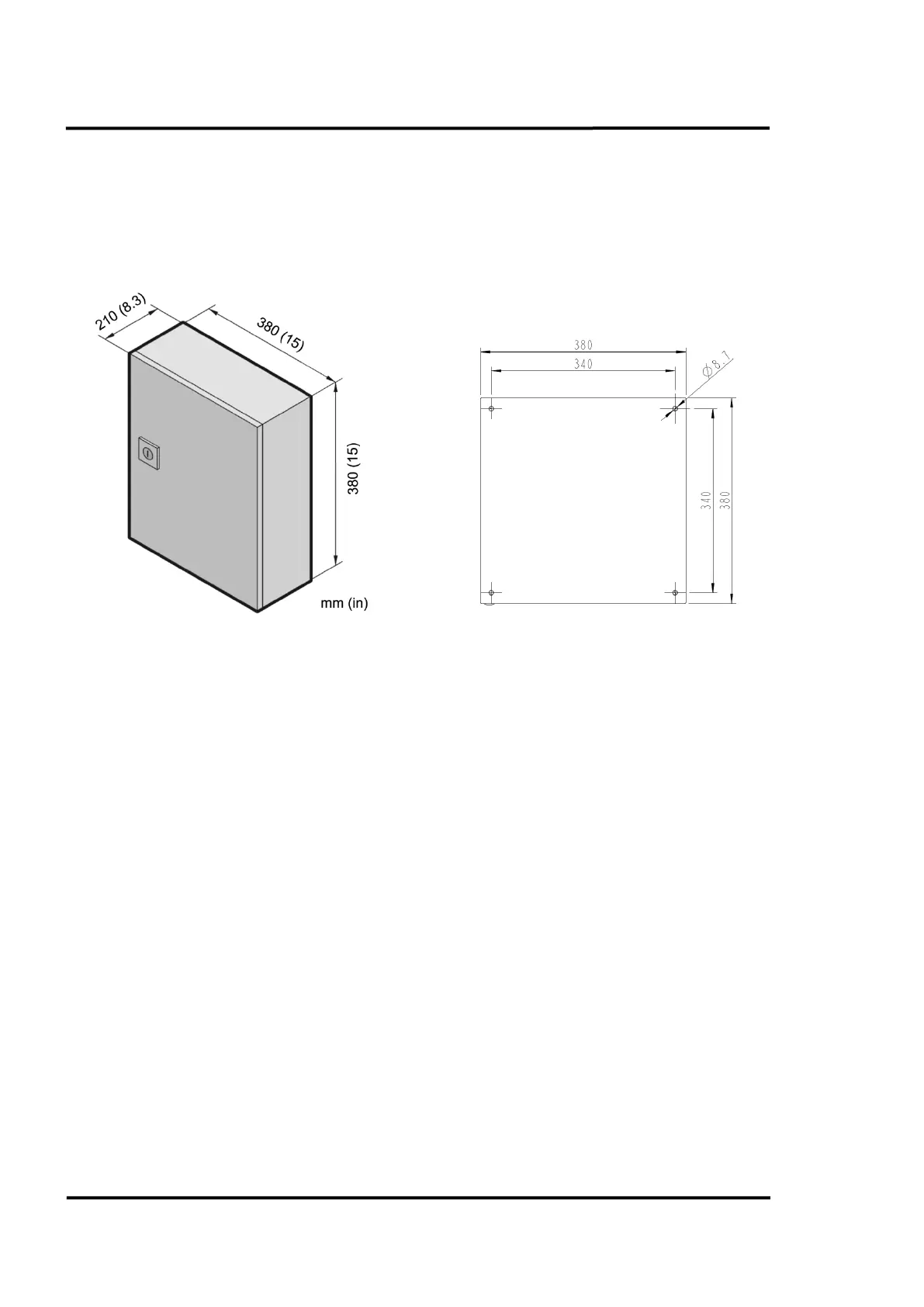

Dimensions (W x H x D) 380 x 380 x 210 mm (15 x 15 x 8.3 in)
Net Weight approx. 12 kg (26 lb)
Protection Rate: IP66 (NEMA 4)
Power supply 100 to 240 VAC, 50/60 Hz
Wiring cable diameter max. 2.5 mm² (AWG 14)
Power input max. 110 W (for the system connection box XXXCS210CONBOX)
max. 30 W (for the fibre optic converter box XXXHSFICBOX)
Fuse 6 A (fuse only with system connection box XXXCS210CONBOX)
