Accessories
88 Rev. B4 Feb 2015 CS210
10.5.3 Position Indicator
Temperature resistant inductive proximity switches are used to trigger the
PLC counter rotation time. The trigger bar for the position indicator is
welded directly onto the tire.

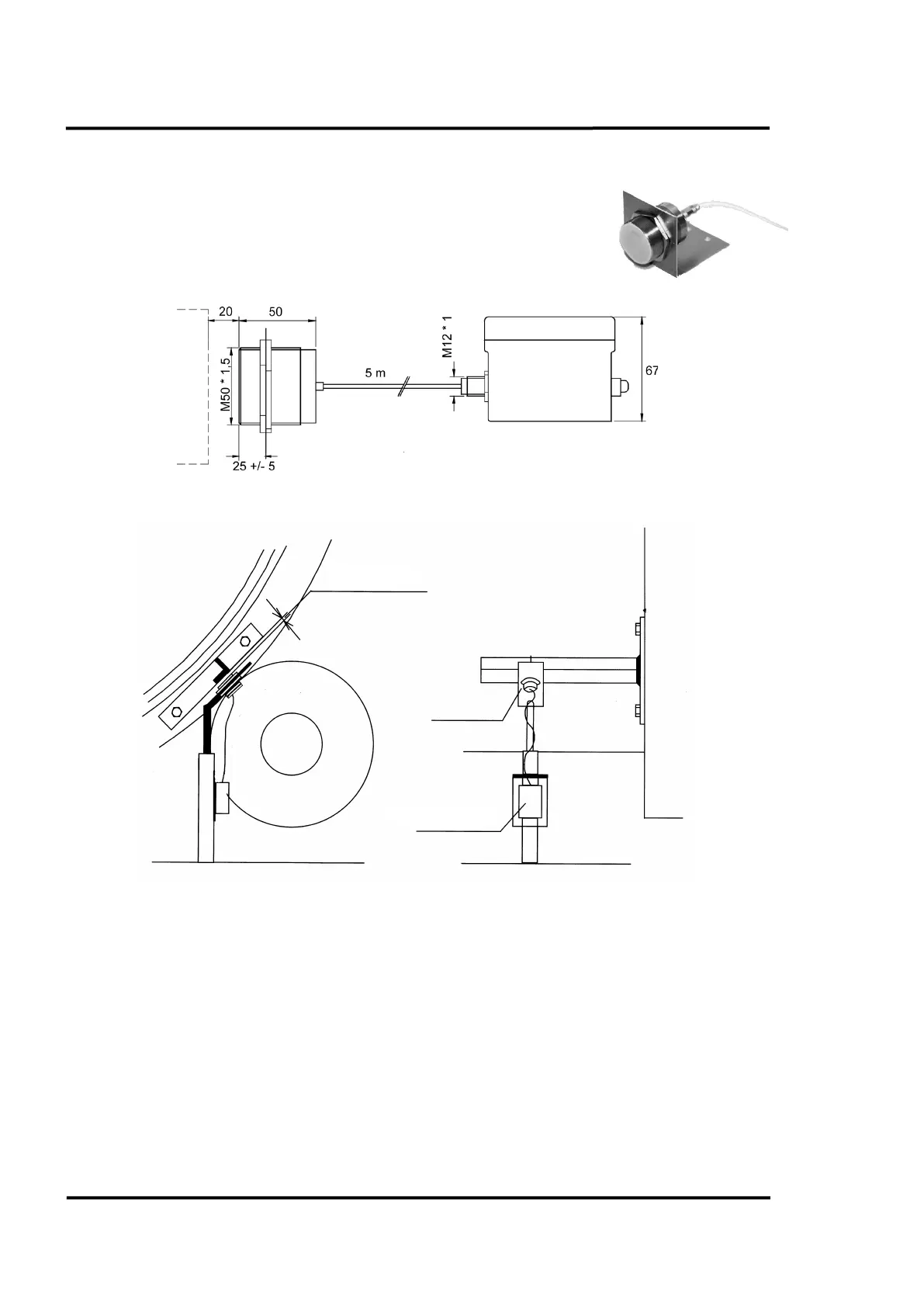

Figure 85: Position Indicator and Trigger Bar
Figure 86: Mounting the Position Indicator
Junction box
Trigger bar
Position indicator
20 mm (0.79
in)
Position
indicator
Junction box
