Configuration
38 Rev. B4 Feb 2015 CS210

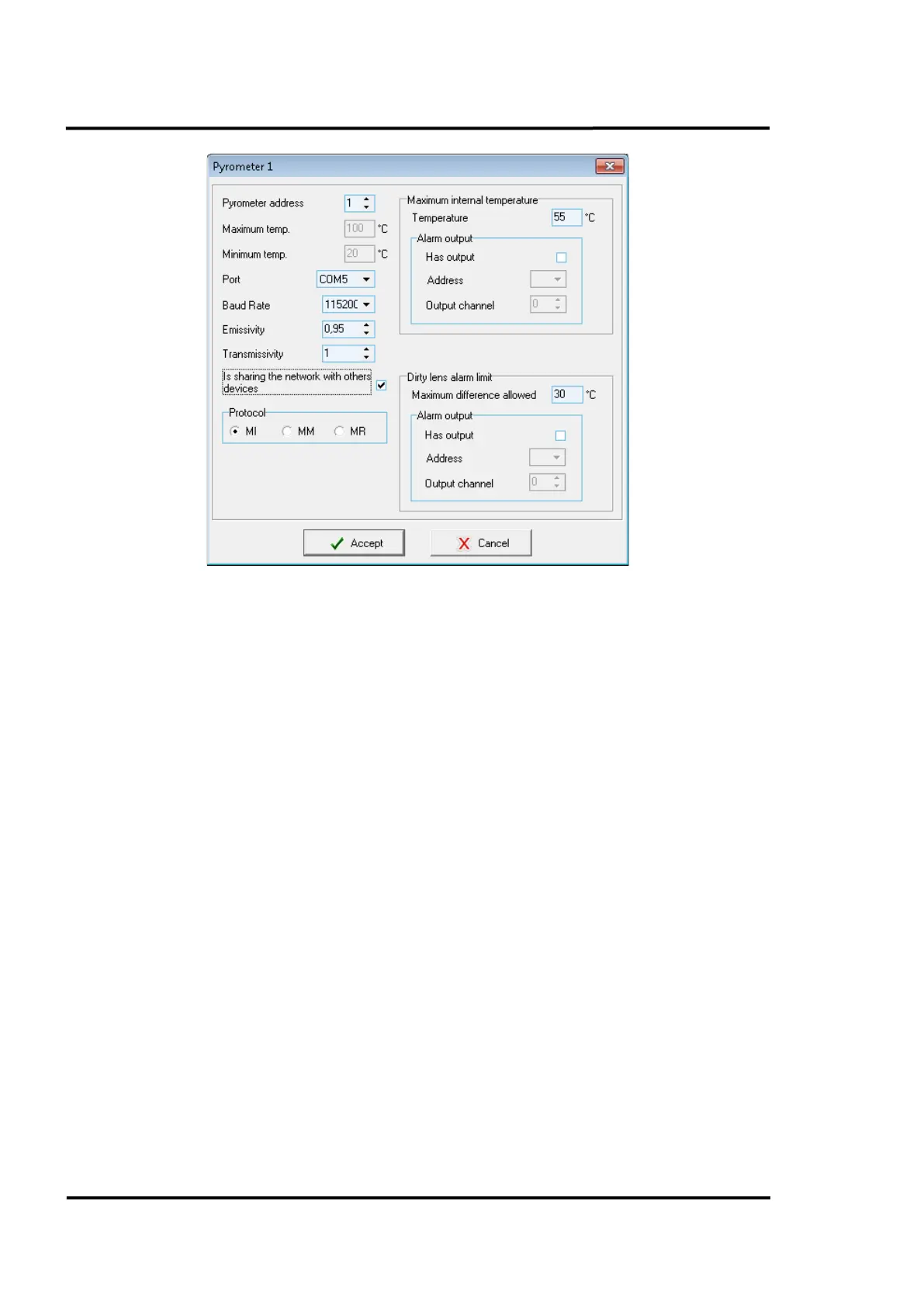

Figure 27: Definition for Pyrometer devices
For pyrometers you can define if it shares network with other pyrometers or not. When sharing the
network, it will be necessary to indicate the unit address.
Also, on this screen it is possible to set the dirty lens alarm and to configure one possible digital
output for it. With the dirty lens alarm, a temperature difference is being calculated for the
pyrometer’s reading and the temperature from the neighboured scanner pixel. If the difference
exceeds the maximal allowed threshold then an alarm is being triggered.
6.2.5 <Special Commands>
This library allows the user to execute commands either individually or as groups via the command
groups (templates) function.
