RayTek CS210 - Terminal Wiring W8

Drawings
CS210 Rev. B4 Feb 2015 123
13.8.1 Terminal Wiring W8

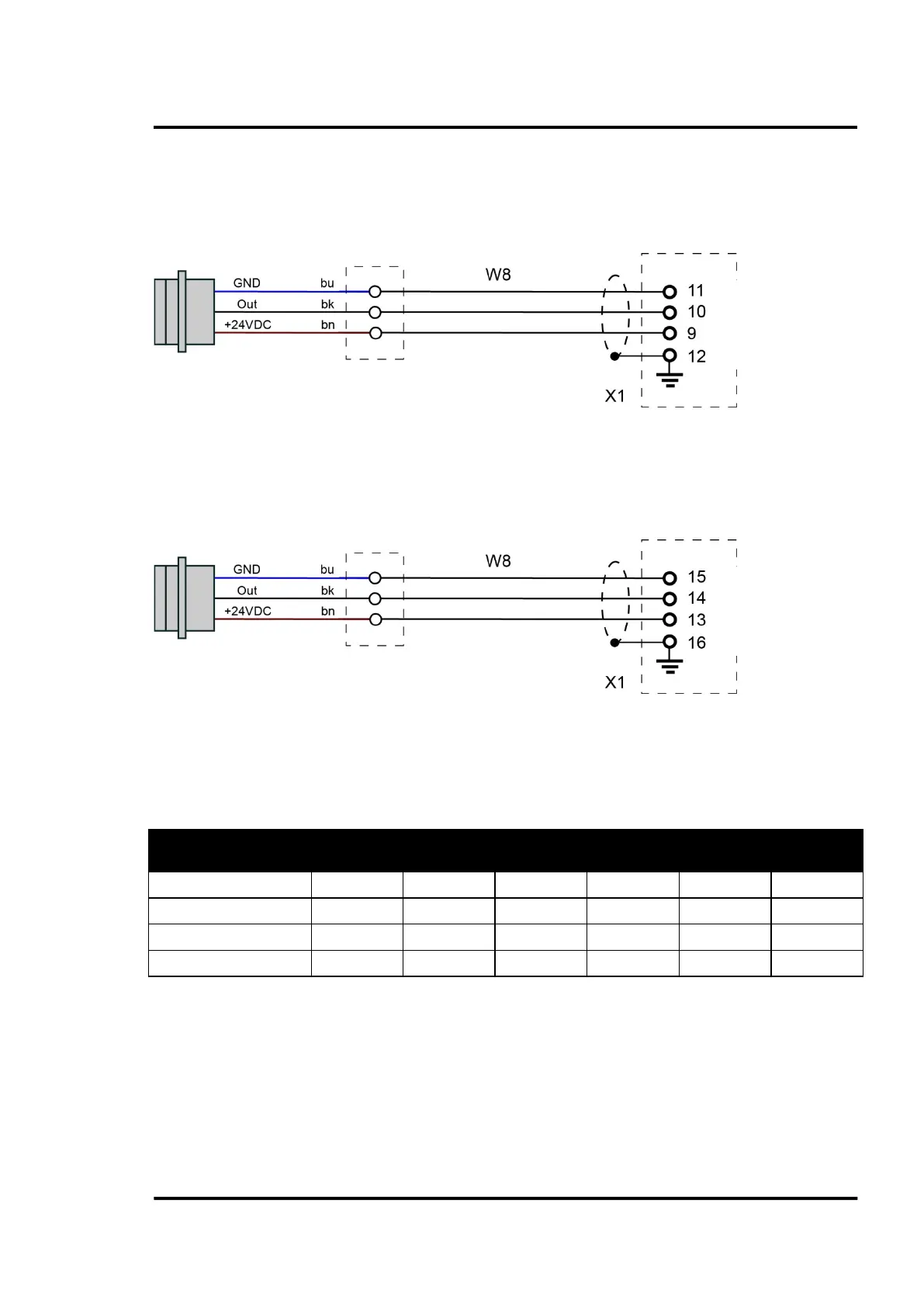

Figure 114: Terminal Wiring for the Position Indicator (Kiln Trigger)
Figure 115: Terminal Wiring for the Position Indicator (Ring1)
W8 – Complete Terminal Wiring for all Position Indicators
Position Indicator
Ring 1
Pin
Ring 2
Pin
Ring 3
Pin
Ring 4
Pin
Ring 5
Pin
Ring 6
Pin
Shield
16
20
24
28
32
36
+ 24 VDC
13
17
21
25
29
33
Out
14
18
22
26
30
34
GND
15
19
23
27
31
35
Junction Box
Position Indicator
(CS210)
LRM Remote Control Box
Kiln trigger ground
Kiln trigger input
Kiln trigger VDC
Shield
Junction Box
Position Indicator
(LRM)
LRM Remote Control Box
Ring1 ground
R
ing1input
Ring1 VDC
Shield
