Operation
CS210 Rev. B4 Feb 2015 59

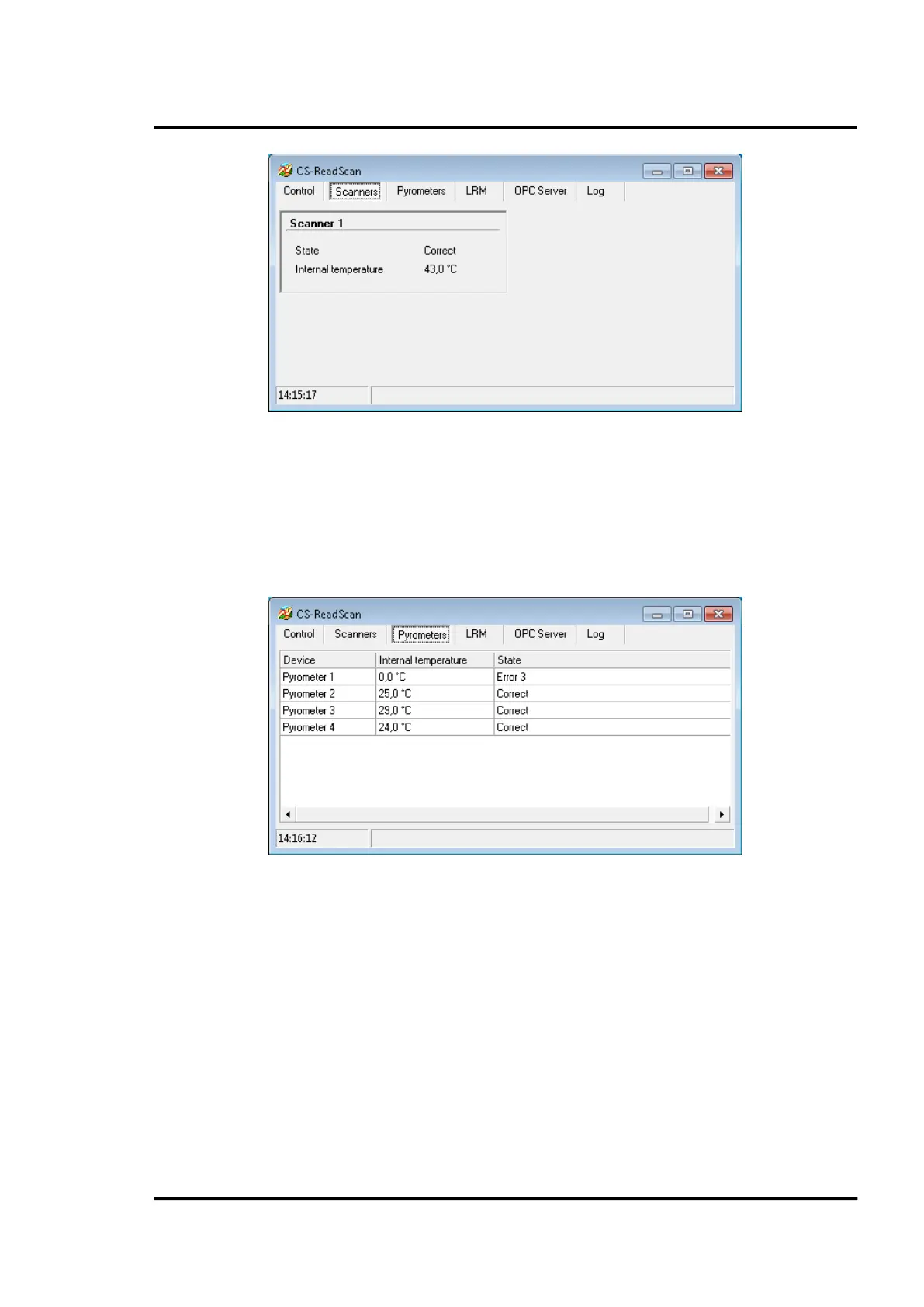

Figure 55: Main screen: <Scanners> Tab
This tab shows information on the pyrometers configured to work with the system. If no pyrometer is
configured, the user will be informed about that.
In normal circumstances, the information shown becomes updated at the end of each kiln rotation. If
communication is interrupted the information will be updated as soon as detection takes place.
Figure 56: Main screen: <Pyrometers> Tab
7.1.4 <LRM> Tab
This tab shows information related to the LRM system (Live Ring Migration). If this system is not
operational, the user will be informed about that.
In normal circumstances, the information will be updated when new data is received from the system.
However, it will not be possible to report about ring slip until the kiln has finished its current lap. If
communication is interrupted the information will be updated as soon as detection takes place.
