Ricoh B039 - By-Pass Paper Size Sensor; Registration Clutch

PAPER FEED SECTION
B039/B040/B043 3-32 SM

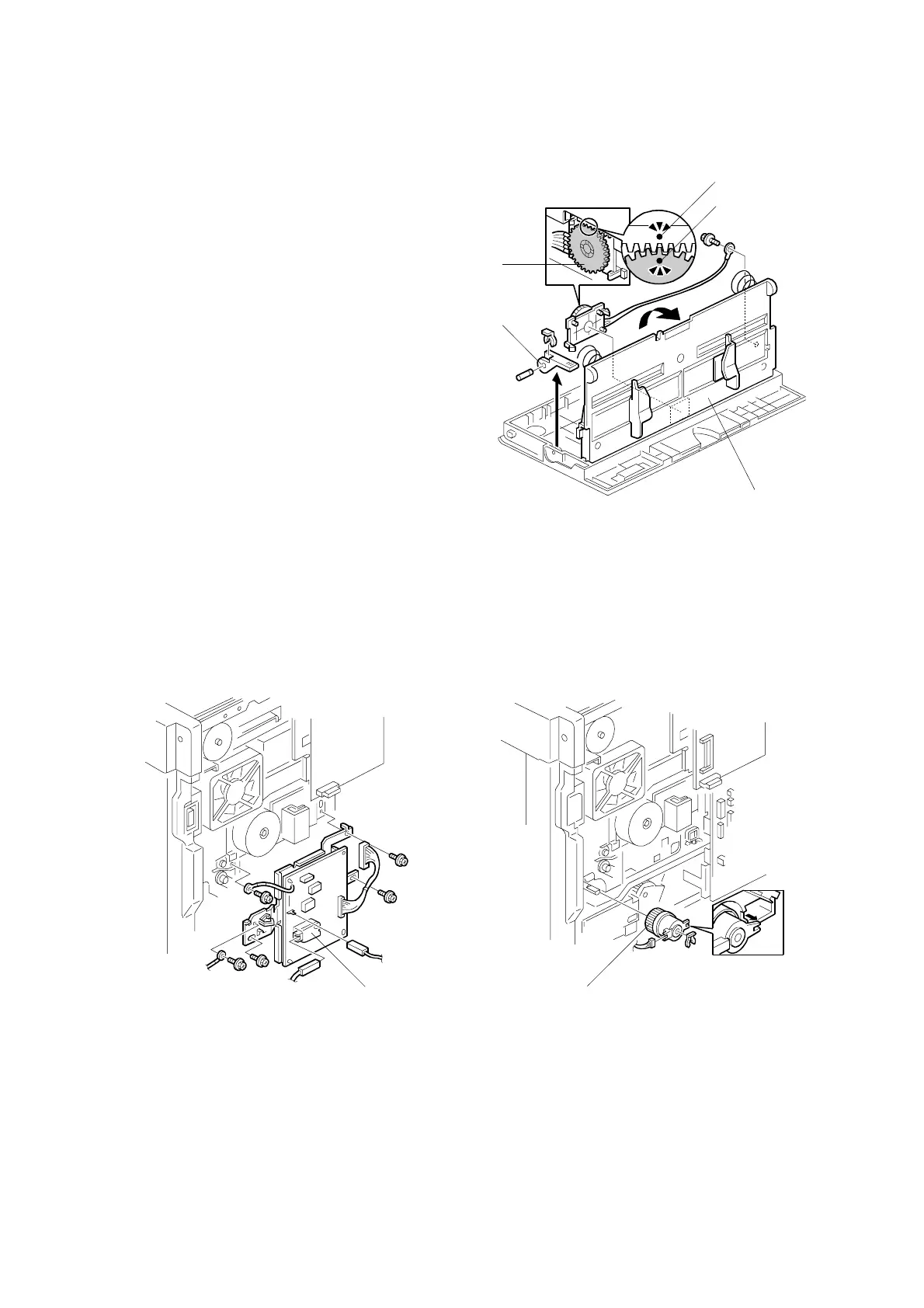

3.8.7 BY-PASS PAPER SIZE SENSOR
1. By-pass tray (☛ 3.3.13)
2. Tray lever [A] (# x 1, 1 pin)
3. Lift the upper tray [B]
4. By-pass paper size sensor [C]
(! x 1)
NOTE: When reinstalling the
sensor: Move the paper
guides to their middle
position (about halfway
between fully open and fully
closed), and install the round
gear so that the hole in the
gear [D] aligns with the peg
[E] on the sliding gear.
3.8.8 REGISTRATION CLUTCH
1. Rear Cover (☛ 3.3.1)
2. Bracket holding the high-voltage power supply board [F] (! x 5, all connectors)
3. Registration clutch [G] (# x 1, " x 1)
B039R704.WMF
B039R909.WMF
B039R911.WMF
[E]
[D]
[C]
[A]
[B]
[F]
[G]
