Ricoh B039 - Registration Sensor; Upper Paper Feed Clutch and By-Pass Feed Clutch

Replacement
Adjustment
PAPER FEED SECTION
SM 3-33 B039/B040/B043

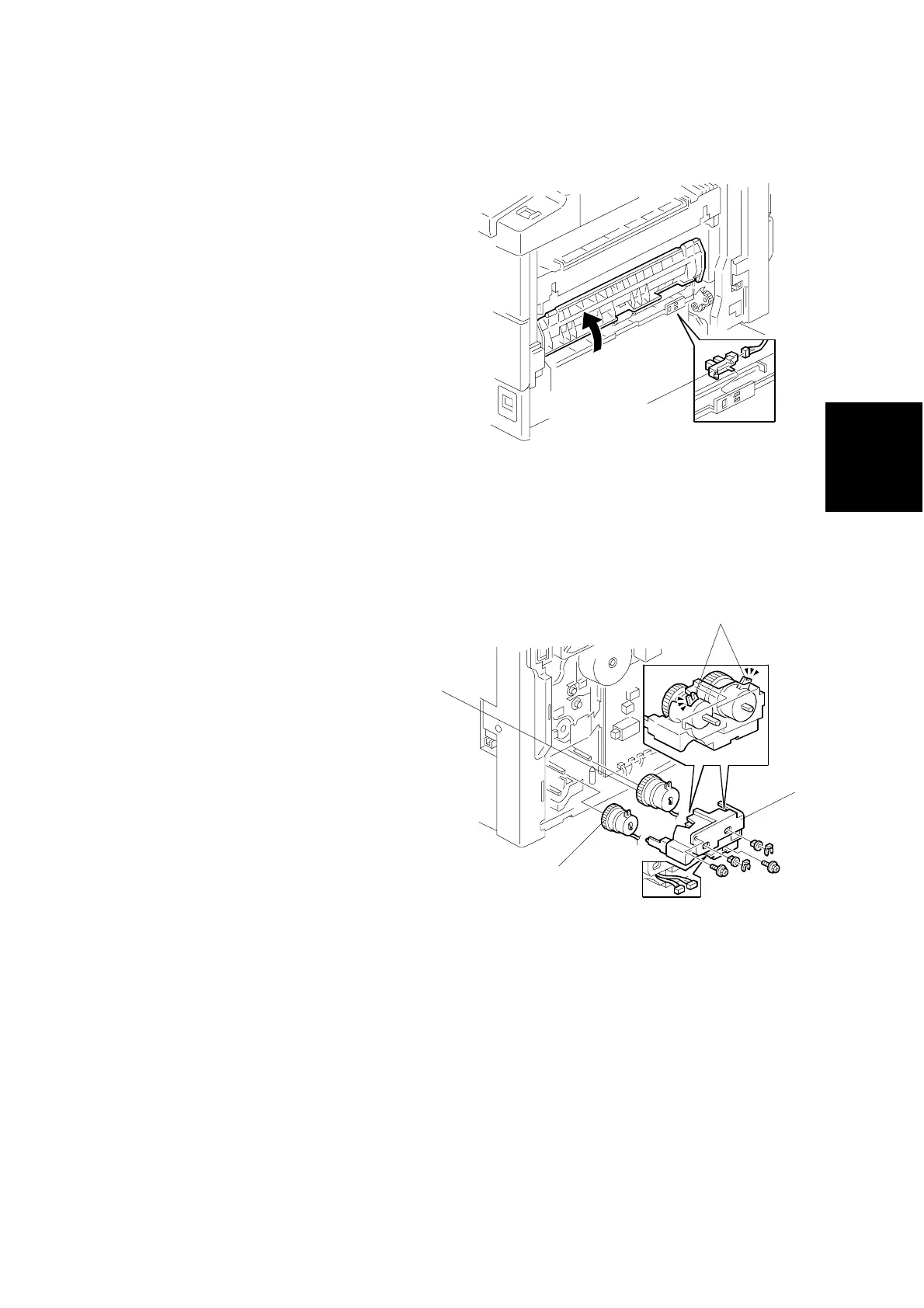

3.8.9 REGISTRATION SENSOR
1. Open the right door.
2. Registration sensor [A] (" x 1)
3.8.10 UPPER PAPER FEED CLUTCH AND BY-PASS FEED
CLUTCH
1. Rear cover (☛ 3.3.1)
2. Clutch cover [B] (# x 2, 2
bushings, ! x 2 )
3. Paper feed clutch [C] and by-
pass feed clutch [D]
NOTE: When reinstalling, be
sure that the rotation-
prevention tabs [E] on the
clutches fit correctly into
the corresponding
openings on the clutch
cover.
B039R920.WMF
B039R922.WMF
[A]
[C]
[E]
[D]
[B]
