Ricoh B039 - Tray Main Board Replacement; Tray Motor Replacement

TRAY MAIN BOARD REPLACEMENT
B384 9-12 SM

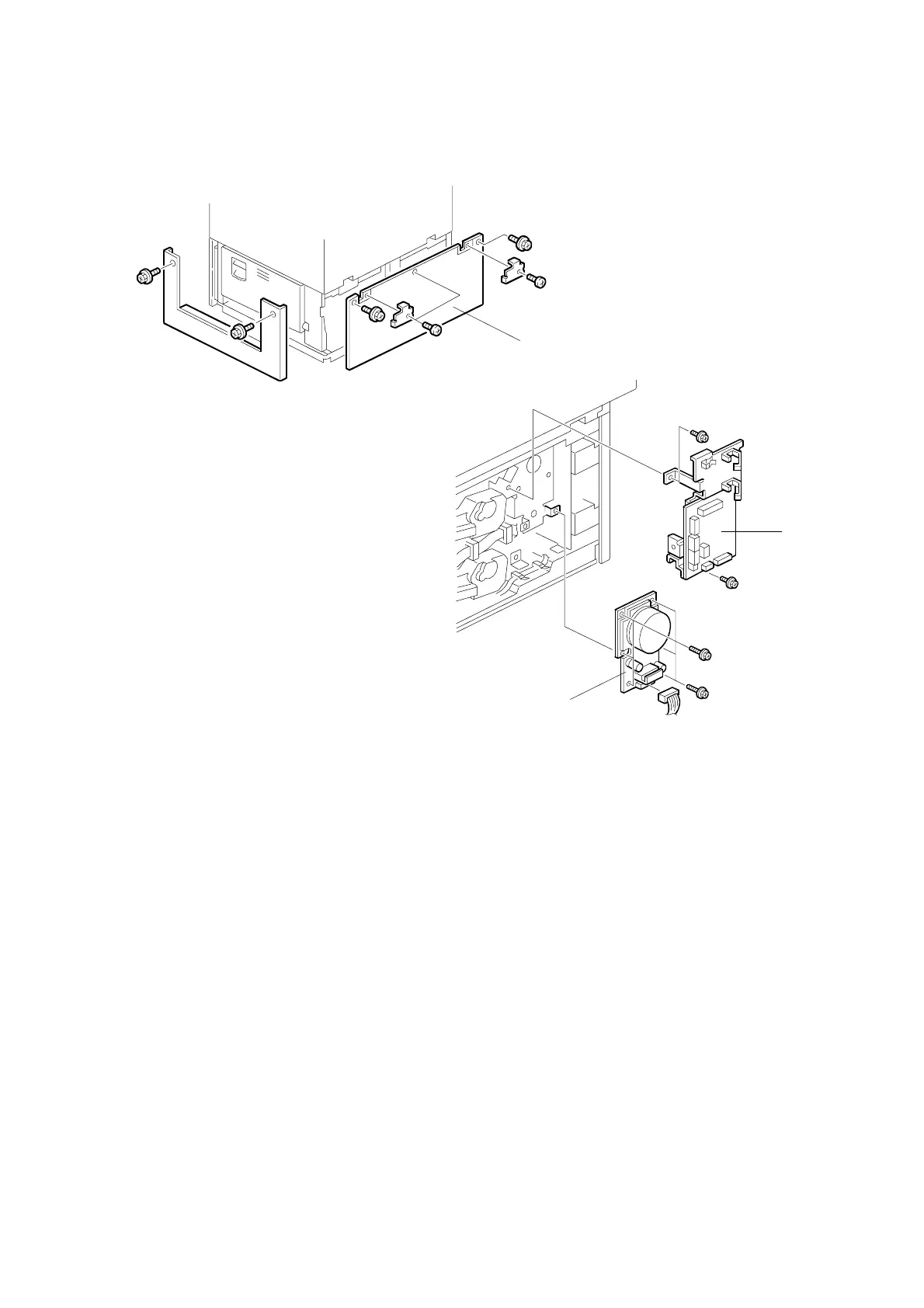

3.2 TRAY MAIN BOARD REPLACEMENT
1. [A] Rear cover (! x 5)
2. [B] Tray main board (! x 4, " x 8)
3.3 TRAY MOTOR REPLACEMENT
1. Rear cover (! x 5)
2. Disconnect 8 connectors from the tray main board [B].
3. Tray main board with the bracket (! x 2)
4. [C] Tray motor (! x 6, " x 1)
B384R101.WMF
B384R103.WMF
[A]
[B]
[C]
