Ricoh B039 - Lower Tray Heater (Two-Tray Model Only)

Installation
TRAY HEATERS
SM 1-23 B039/B040/B043

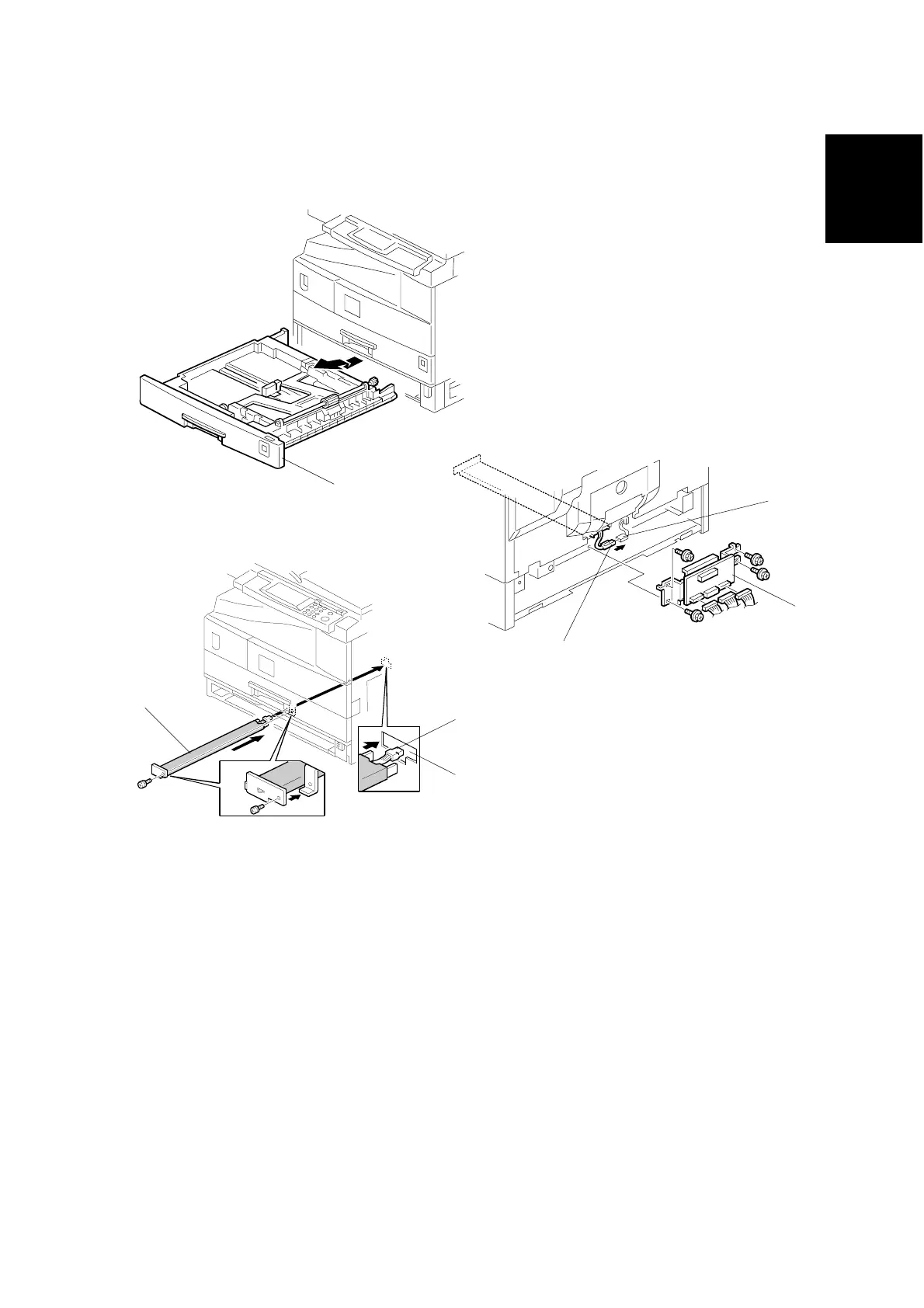

1.11.2 LOWER TRAY HEATER (TWO-TRAY MODEL ONLY)
1. Remove the 2nd tray cassette [A].
2. Remove the rear lower cover (☛ 3.3.2).
3. B043 model only:
Remove the DCB [B] with bracket (4 screws and 3 connectors).
4. Pass the connector [C] through the opening [D] and install the tray heater [E] (1
screw).
5. Join the connectors [F, G].
6. Reinstall the 2nd tray cassette, DCB, and rear lower cover.
B039I129.WMF
B039I125.WMF
B039I122.WMF
[E]
[B]
[G]
[F]
[A]
[C]
[D]
