FEED CLUTCH, PICK-UP SOL, TRANSPORT MOTOR, FEED MOTOR
B379 7-26 SM
3.9 FEED CLUTCH, PICK-UP SOL, TRANSPORT MOTOR,
FEED MOTOR
Exterior
1. Rear cover (☛ 3.1)
DF Feed Clutch
1. [A] DF feed clutch [A] (# x 1, " x 1)
Pick-up Solenoid
1. [B] Pick-up solenoid (! x 3, 1 snap ring, " x 1)
Transport Motor
1. [C] Bracket (! x 2)
2. [E] Transport motor (! x 2, " x 1)
DF Feed Motor
1. [C] Bracket (! x 2)
2. [D] DF feed motor (! x 2, " x 1)

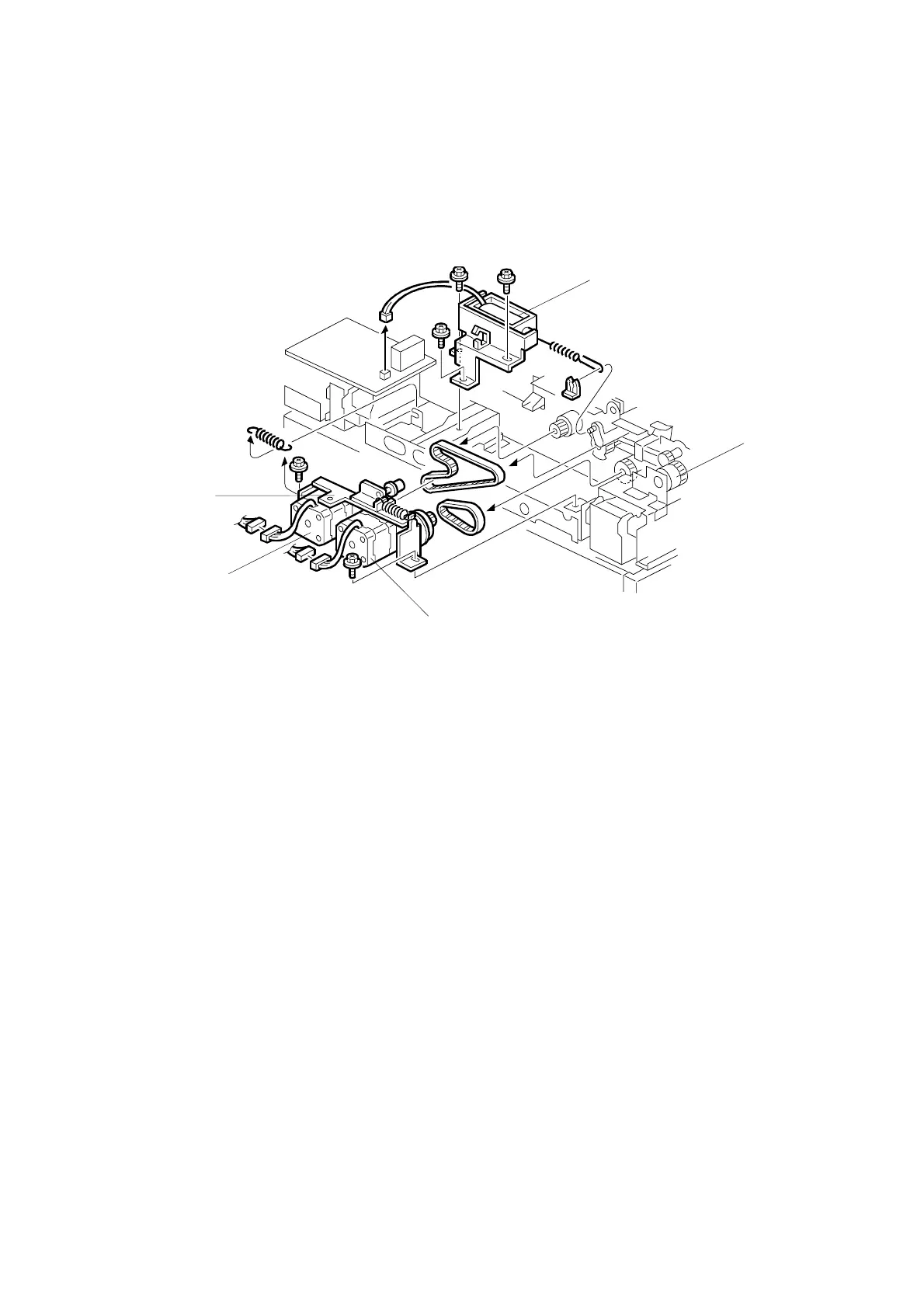

B379R202.WMF
