Paper Tray

Unit

B384

RELAY CLUTCH REPLACEMENT

SM 9-13 B384

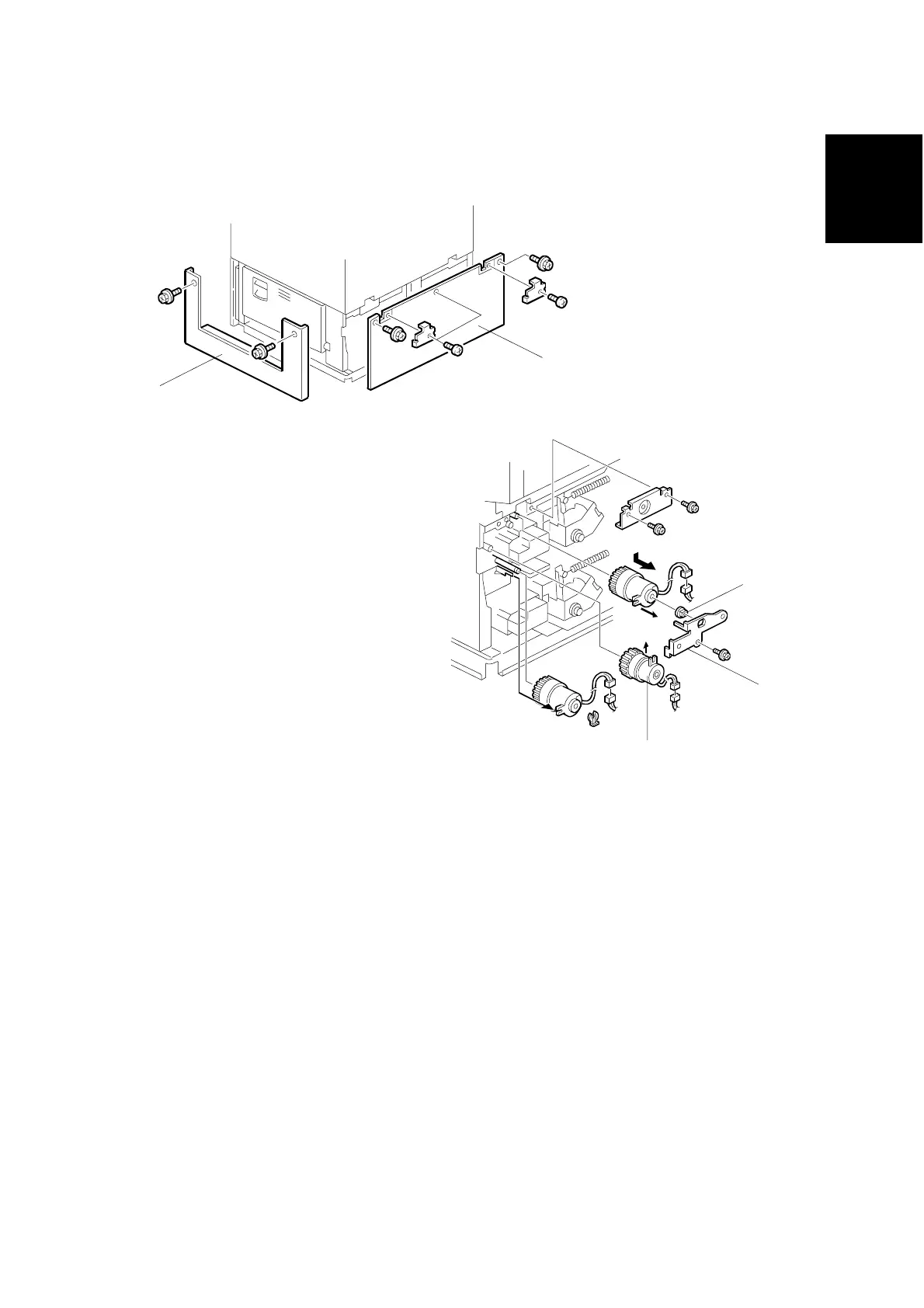

3.4 RELAY CLUTCH REPLACEMENT

1. [A] Rear cover (! x 5)

2. [B] Right cover (! x 2)

3. [C] Stopper bracket (! x 1)

4. [D] Bushing

5. [E] Relay clutch (" x 1)

B384R102.WMF

B384R101.WMF

[A]

[E]

[C]

[B]

[D]
