ARDF
B379
MECHANICAL COMPONENT LAYOUT
SM 7-1 B379
1. OVERALL MACHINE INFORMATION

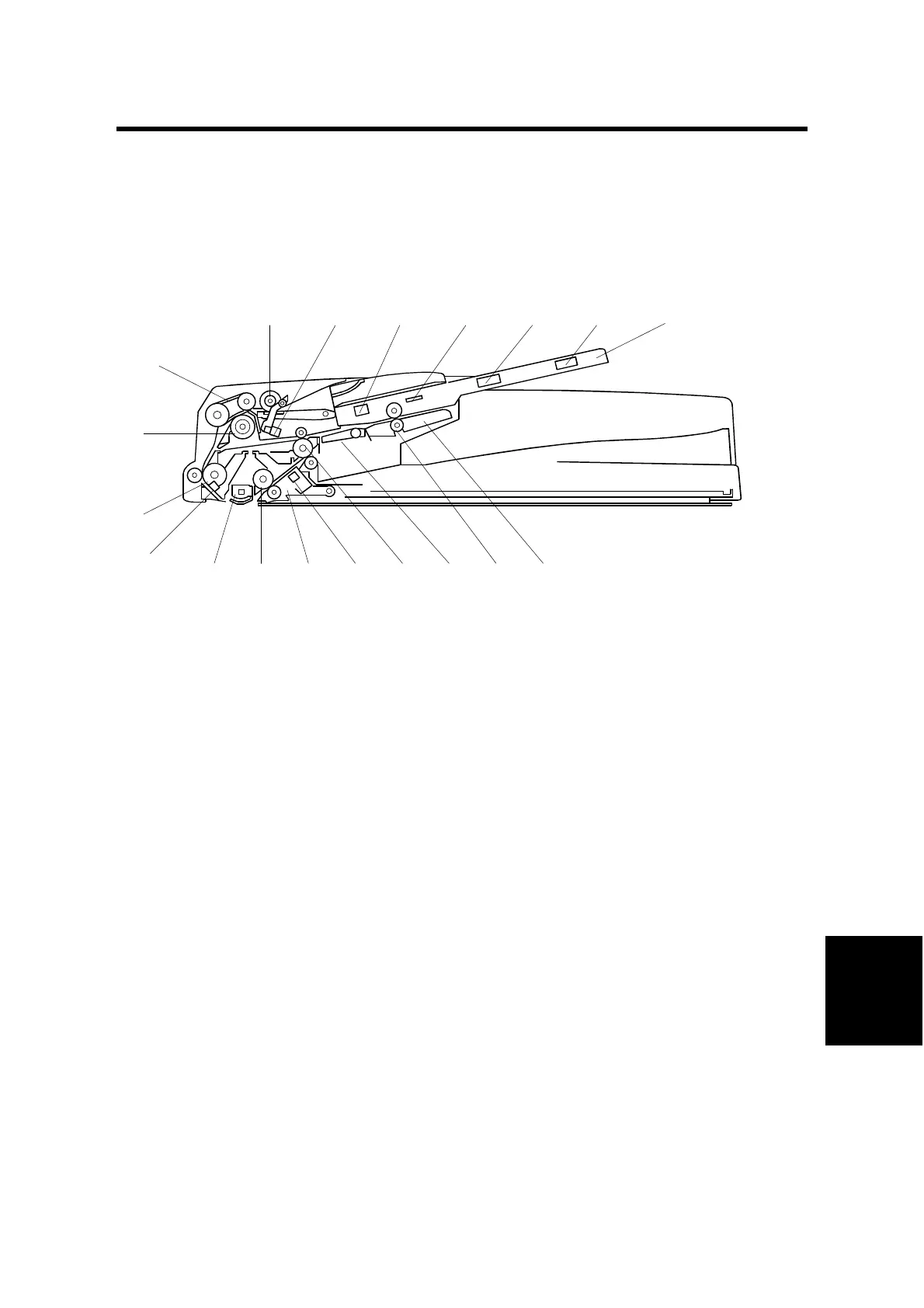

1.1 MECHANICAL COMPONENT LAYOUT
1. Separation Roller
2. Paper Feed Belt
3. Pick-up Roller
4. Original Set Sensor
5. Original Trailing Edge Sensor
6. Original Width Sensor Board
7. Original Length Sensor 1
8. Original Length Sensor 2
9. Original Table
10. Reverse Table
11. Reverse Roller
12. Junction Gate
13. Exit Roller
14. Original Exit Sensor
15. Stamp
16. 2nd Transport Roller
17. Original Exposure Guide
18. Registration Sensor
19. 1st Transport Roller
B379D201.WMF
1
3 4 5 6 7 8
9
1617
19
18
2
15 14 13 12 11 10
To Next Page
