Ricoh B039 - Tray Motor Replacement

513 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

Paper Tray

Unit

B385

TRAY MOTOR REPLACEMENT

SM 10-13 B385

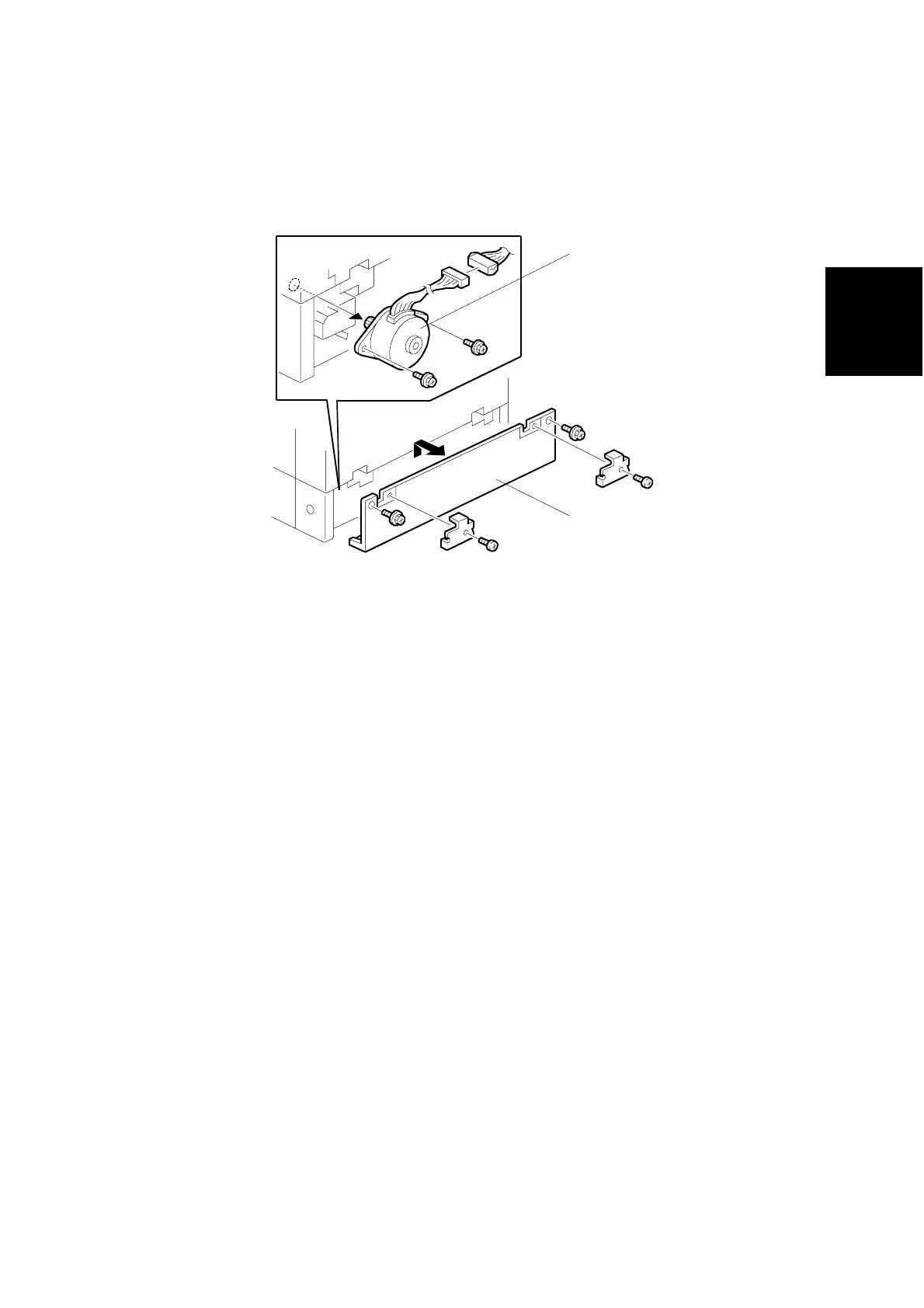

3.3 TRAY MOTOR REPLACEMENT

1. [A] Rear cover (! x 4)

2. [B] Tray motor (! x 2, " x 1)

B385R102.WMF

[A]

[B]
