ORIGINAL SIZE DETECTION
B379 7-4 SM
2. DETAILED SECTION DESCRIPTIONS
2.1 ORIGINAL SIZE DETECTION

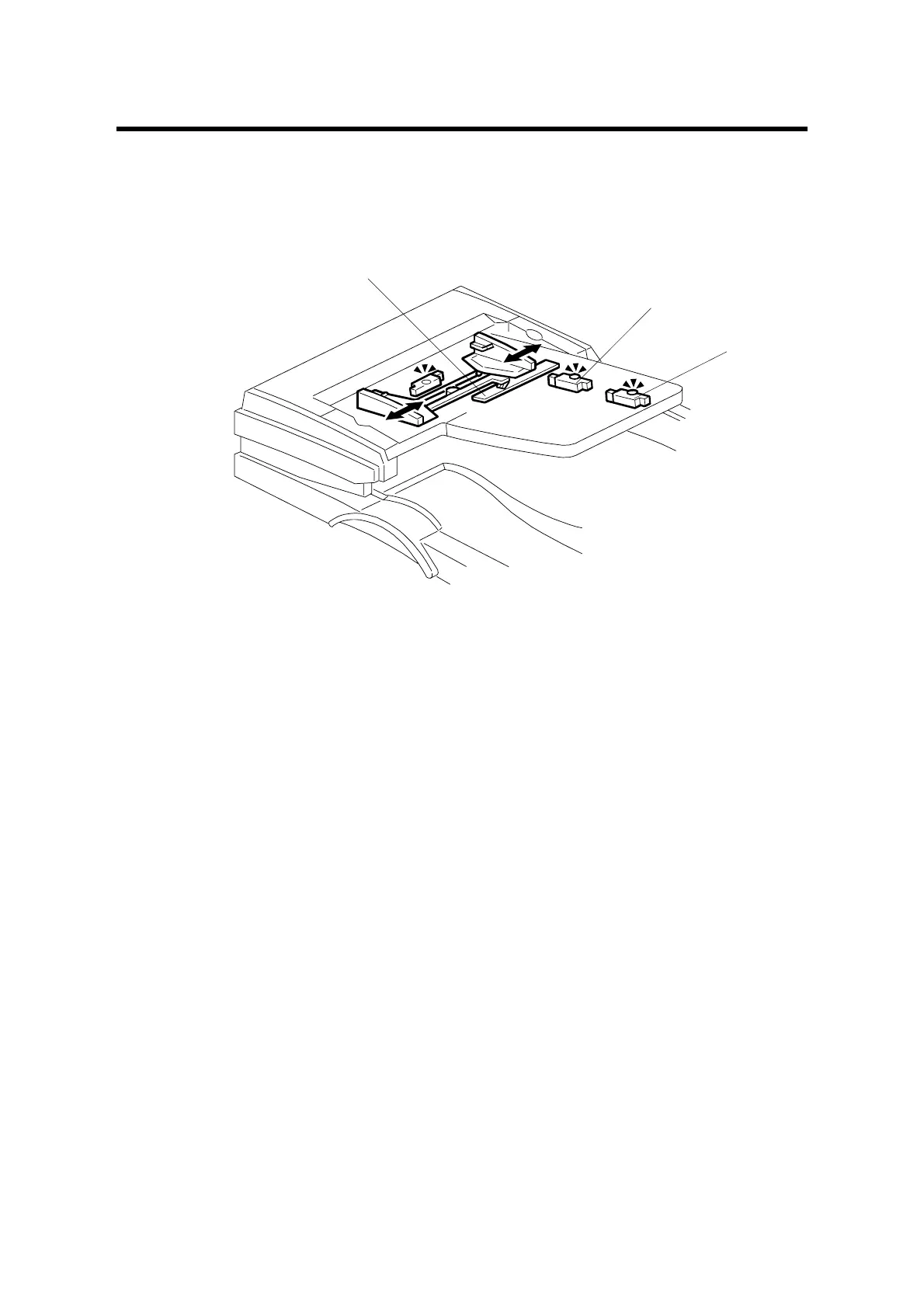

The original size detection mechanism consists of the original width sensor board
[A] and two original length sensors-1 [B] and -2 [C]. Based on the combined output
of the length sensors and the width sensor board, the machine can detect the size
of the original. This integrated detection mechanism is detailed in the table on the
next page.
Note that the width sensor’s terminal plate is attached to the original guide, so the
widths of the originals must all be the same.
B379D503.WMF
[A]
[B]
[C]
