Ricoh B039 - By-Pass Feed Roller and By-Pass Paper End Sensor

PAPER FEED SECTION
B039/B040/B043 3-30 SM
3.8.5 BY-PASS FEED ROLLER AND BY-PASS PAPER END
SENSOR
1. By-pass tray (☛ 3.3.13)
NOTE: If you wish, you can just detach the tray and rest it on the ground
without disconnecting the connector (but be careful to avoid placing too
much load on the wires).
2. Sensor holder [A].
3. By-pass paper end sensor [B] (" x 1)
4. By-pass feed roller [C]

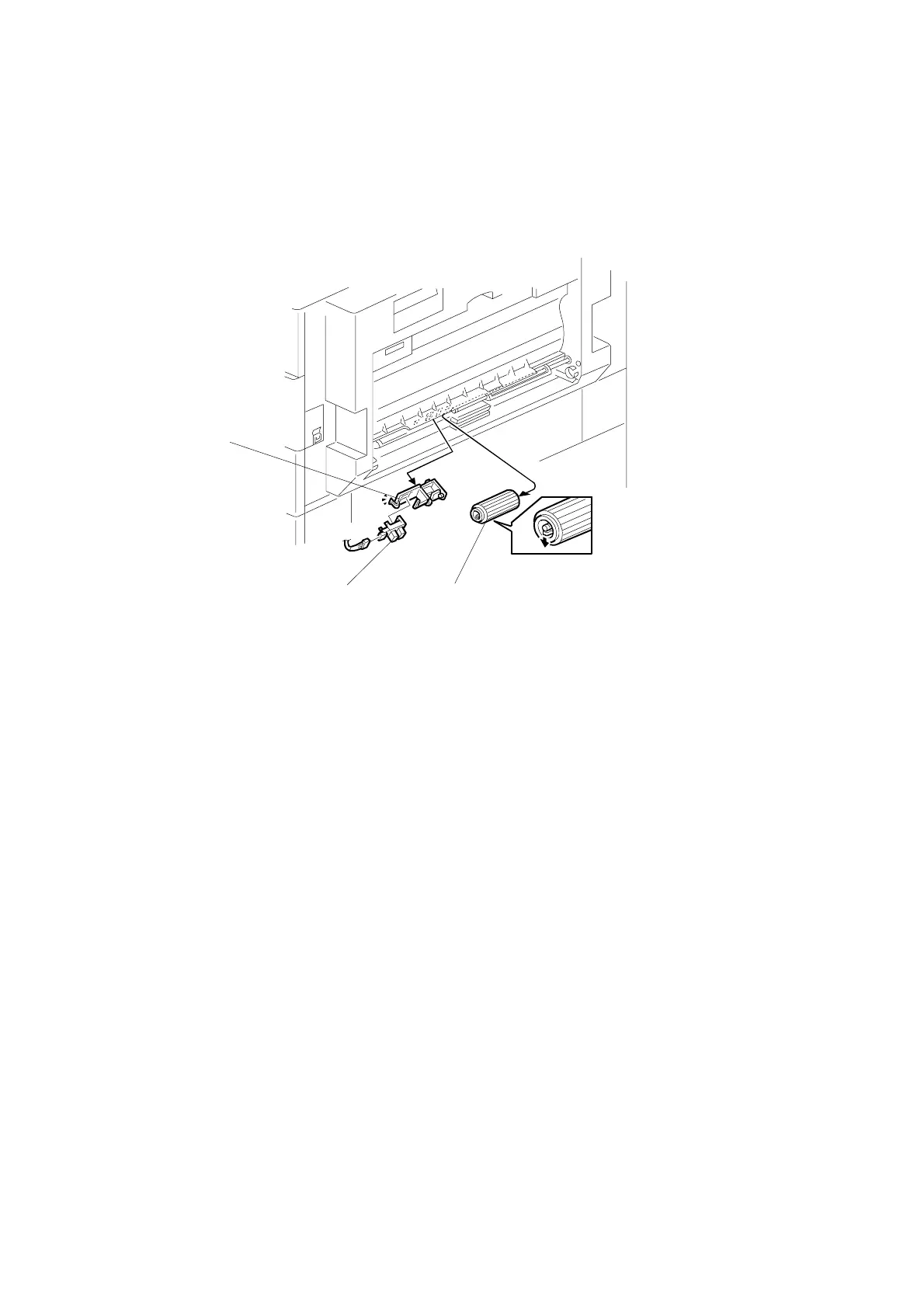

B039R804.WMF
[B]
[C]
[A]
