Ricoh B039 - Charge Roller and Cleaning Brush; Cleaning Blade

PCU SECTION
B039/B040/B043 3-24 SM

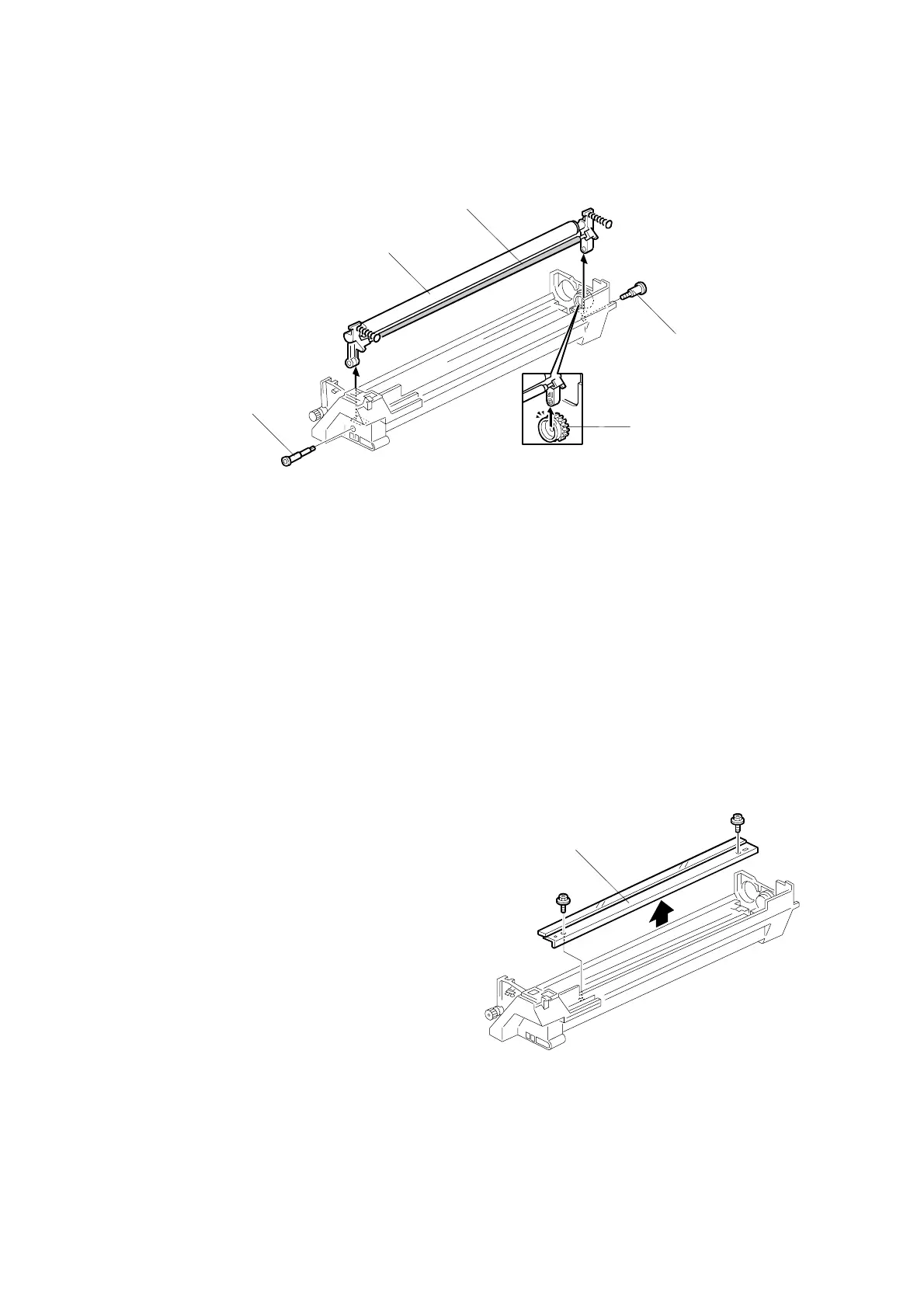

3.6.5 CHARGE ROLLER AND CLEANING BRUSH
1. OPC Drum (☛ 3.6.4)
2. Remove holding pin [A] and 1 stepped screw [B].
3. Turn the gear [C] as necessary so that the rear end piece can come out.
4. Pull out the charge roller [D] and cleaning brush [E] as a single assembly
(together with the plastic end pieces and springs).
5. Do the procedure in section 3.6.8.
3.6.6 CLEANING BLADE
1. Drum charge roller (☛ 3.6.5)
2. Cleaning blade [F] (! x 2)
3. Do the procedure in section 3.6.8.
