Detailed
Descriptions
DUPLEX UNIT
SM 6-67 B039/B040/B043
6.14 DUPLEX UNIT
6.14.1 OVERALL

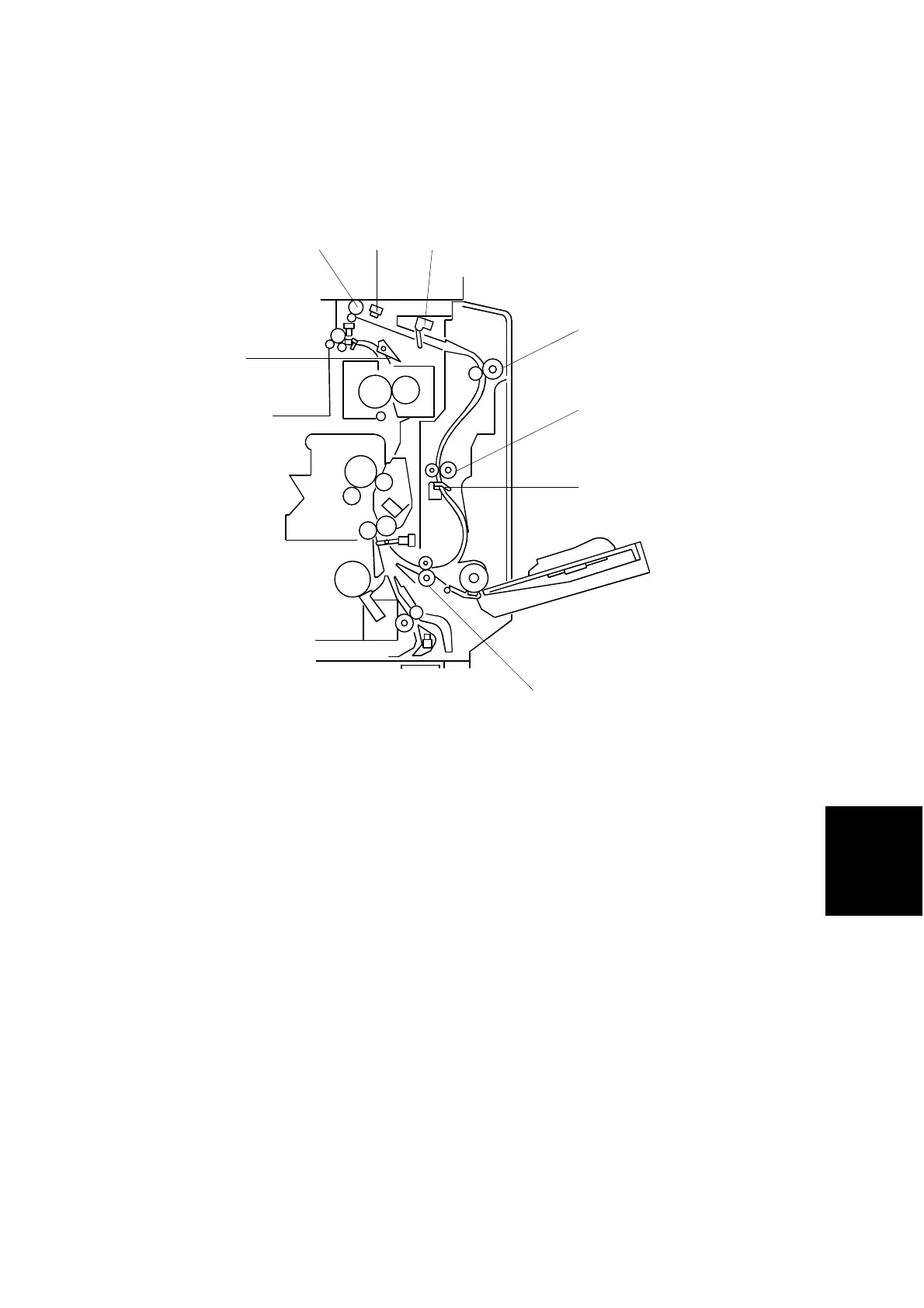

The printed page from the fusing unit goes straight through to the exit tray, or
upward to the inverter section, depending on the position of the junction gate.
If the user selects duplex mode, the page is directed to the inverter tray, then
reversed through the duplex unit, and back into the machine for printing the second
side.
1. Duplex Inverter Sensor
2. Duplex Entrance Sensor
3. Upper Transport Roller
4. Middle Transport Roller
5. Exit Sensor
6. Lower Transport Roller
7. Junction Gate
8. Duplex Inverter Roller
B039D901.WMF
3
7
1
4
5
6
28
