Detailed
Descriptions
PHOTOCONDUCTOR UNIT (PCU)
SM 6-33 B039/B040/B043
6.7 PHOTOCONDUCTOR UNIT (PCU)
6.7.1 OVERVIEW

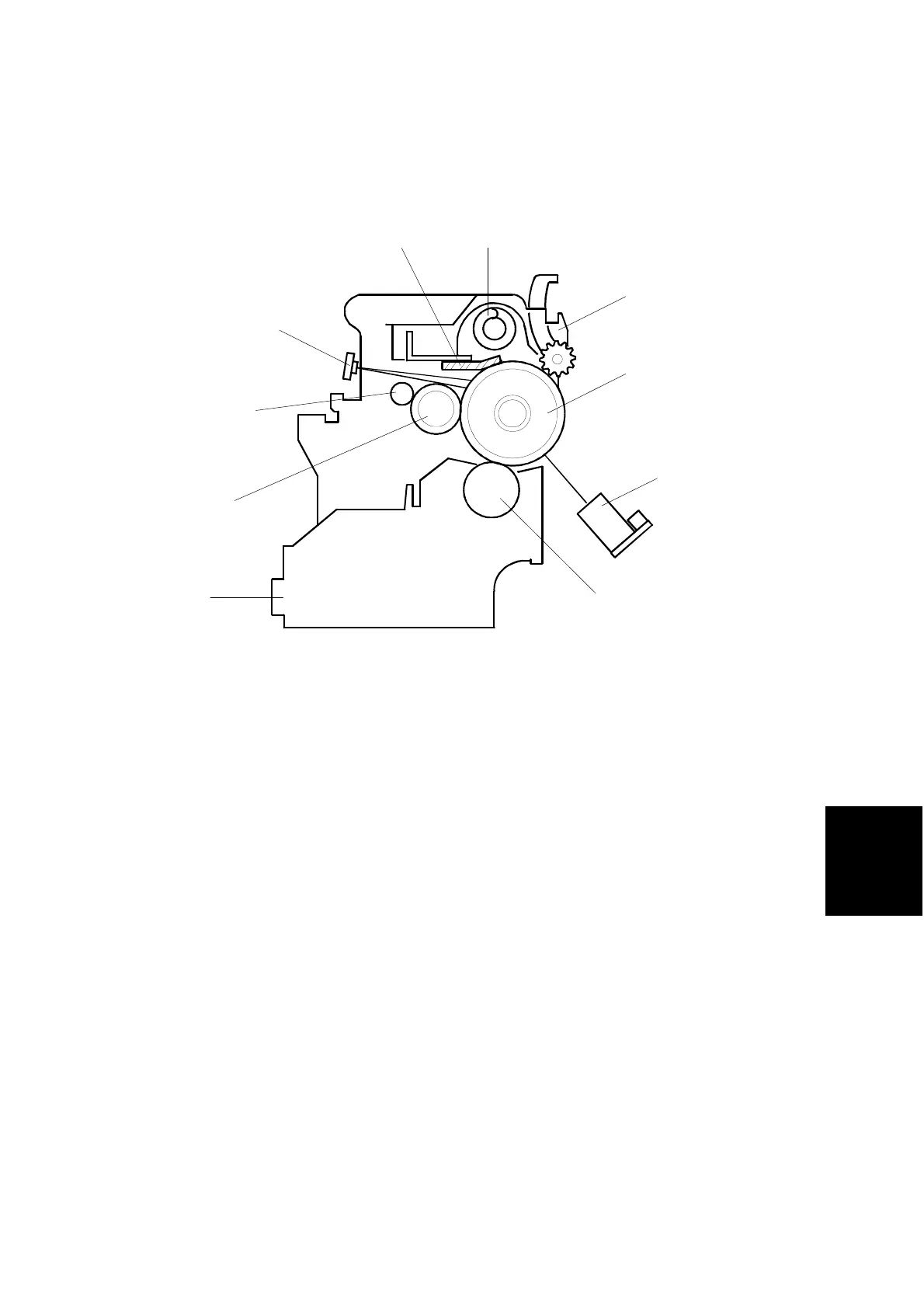

The PCU consists of the components shown in the above illustration. An organic
photoconductor (OPC) drum (diameter: 30 mm) is used in this machine.
1. Cleaning Blade
2. Toner Collection Coil
3. Pick-off Pawl
4. OPC Drum
5. ID Sensor (see note)
6. Development Roller
7. Development Unit
8. Charge Roller
9. Charge Roller Cleaning Brush
10. Quenching Lamp (see note)
NOTE: The ID sensor and quenching lamp are not included in the PCU.
B039D203.WMF
2
4
10
1
5
3
6
7
9
8
