Ricoh B039 - Ld Unit; Polygonal Mirror Motor

LASER UNIT
B039/B040/B043 3-20 SM

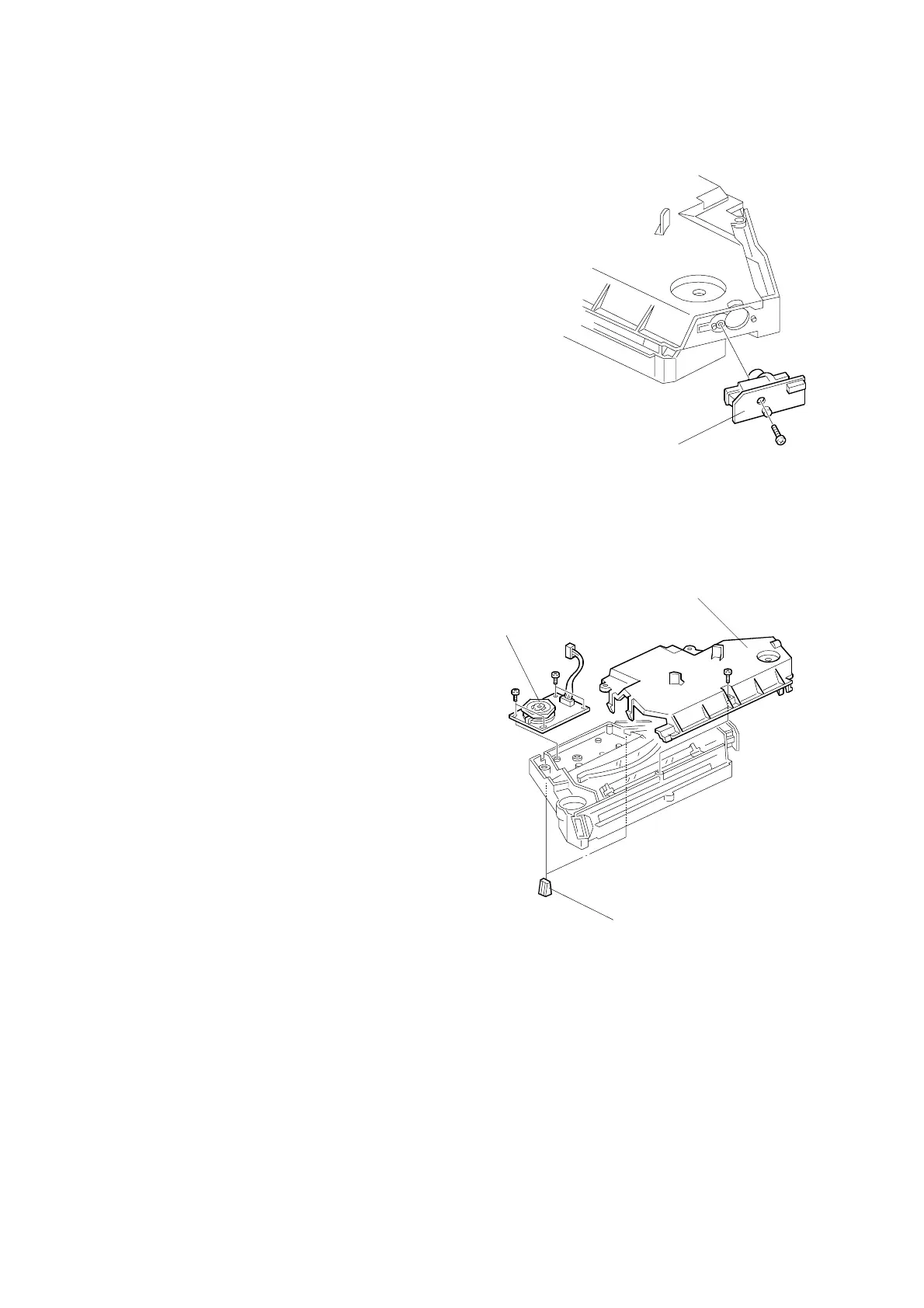

3.5.4 LD UNIT
1. Laser unit (☛ 3.5.3)
2. LD unit [A] (! x 1)
NOTE: Do not screw the LD unit in too
tightly when installing it.
3.5.5 POLYGONAL MIRROR MOTOR
1. Laser unit (☛ 3.5.3)
2. Two rubber bushings [B]
3. Laser unit cover [C] (! x 1)
4. Polygonal mirror motor [D] (! x 4)
5. Do the copy adjustments (☛ 3.13).
B039R155.WMF
B039R154.WMF
[A]
[C]
[D]
[B]
