Ricoh B039 - Toner Supply Mechanism

Detailed
Descriptions
DEVELOPMENT
SM 6-43 B039/B040/B043

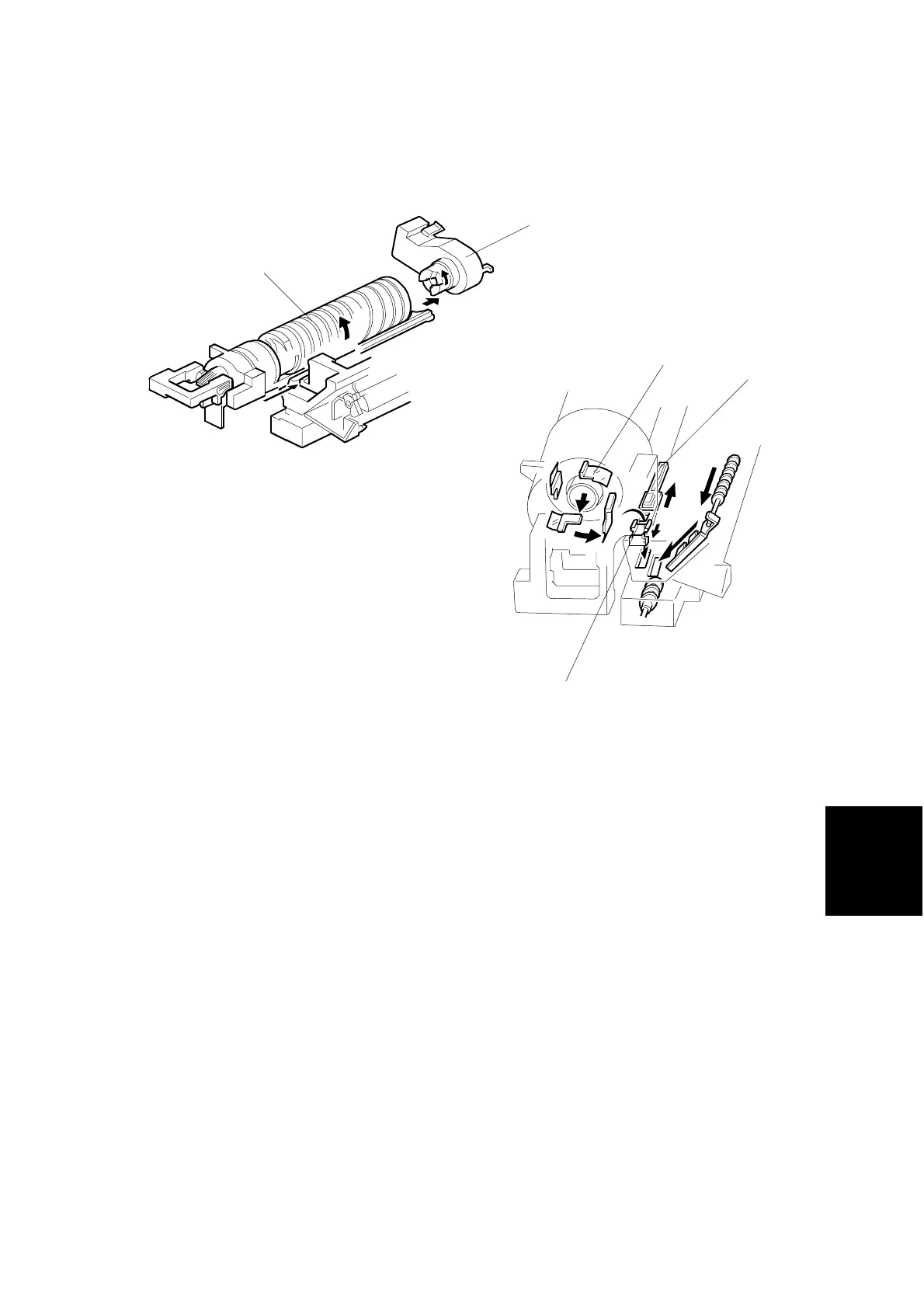

Toner Supply Mechanism
The toner supply motor [A] drives the toner bottle [B] and the mylar blades [C].
First, the toner falls down into the toner bottle holder. The toner supply mylar
blades transfer the toner to the slit [D]. When the PCU is installed in the machine,
the shutter [E] above the PCU is opened by the toner bottle holder. Then the toner
falls down into the development unit through the slit and the shutter.
B039D508.WMF
B039D306.WMF
[A]
[B]
[D]
[C]
[E]
