EXTERIOR COVERS & OPERATION PANEL
B039/B040/B043 3-4 SM

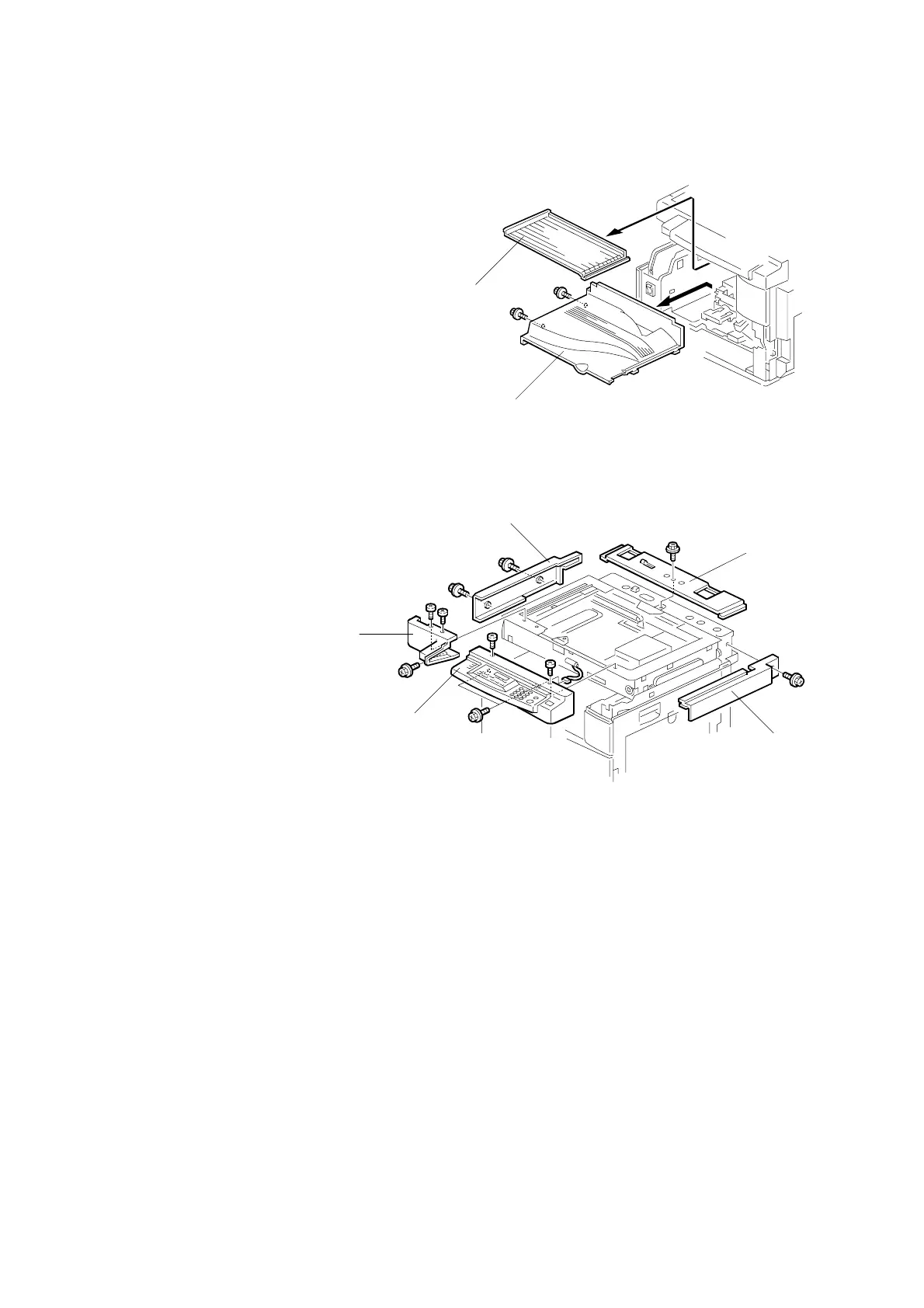

3.3.3 COPY TRAY
1. Duplex models only: Inverter tray [A]
2. Copy tray [B] (! x 2)
3.3.4 LEFT UPPER COVER
1. Rear cover (☛ 3.3.1)
2. Left upper cover [C] (! x
2)
3.3.5 FRONT UPPER LEFT COVER AND OPERATION PANEL
1. Front upper left cover [D] (! x 3)
2. Operation panel [E] (! x 3, " x 1)
3.3.6 RIGHT UPPER COVER
1. Right upper cover [F] (! x 1)
3.3.7 TOP REAR COVER
1. Platen cover or ARDF or ADF (☛ 1.2, 1.3, or 1.4)
2. Top rear cover [G] (! x 1)
B039R152.WMF
B039R002.WMF
[A]
[E]
[B]
[D]
[C]
[G]
[F]
