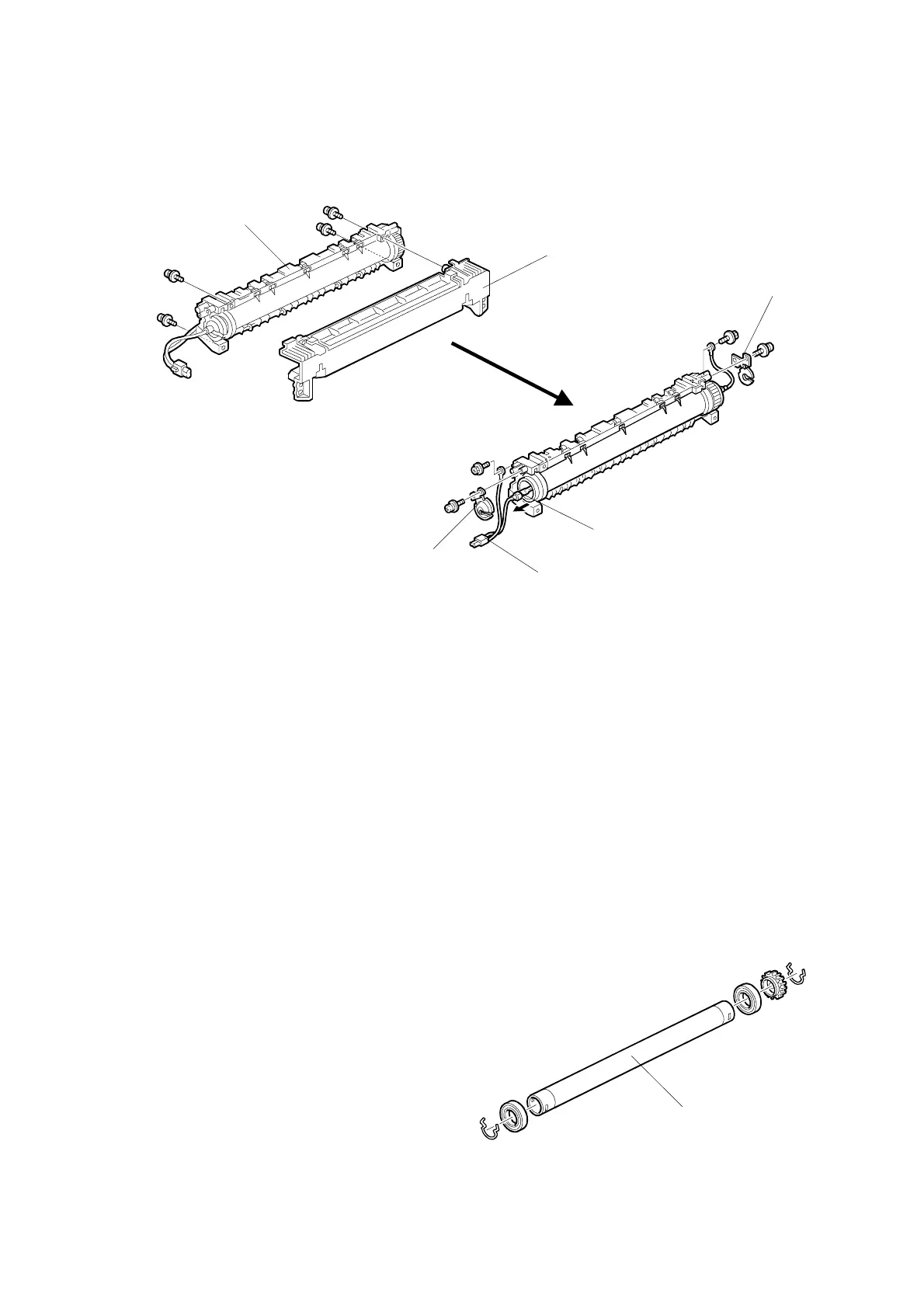

3.10.3 FUSING LAMP
1. Fusing unit (☛ 3.10.1)
2. Separate the fusing unit (! x 4) into two sections: the hot roller section [A], and
the pressure roller section [B].
3. Front metal holding plate [C] (! x 1)
4. Rear metal holding plate [D] (! x 1)
5. Remove the fusing lamp [E] from the hot roller section (! x 2).
The color of connector [F]
Blue: For 120 V machine
Red: For 230 V machine
3.10.4 HOT ROLLER
1. Fusing lamp (☛ 3.10.3)
2. Hot roller [G] (2 C-rings, 1 gear, 2
bearings)
NOTE: Remove hot roller stripper pawls
(☛ 3.10.6) before reinstalling hot
cover to avoid scratching the hot
roller.
