SCANNER SECTION
B039/B040/B043 3-10 SM
3.4 SCANNER SECTION

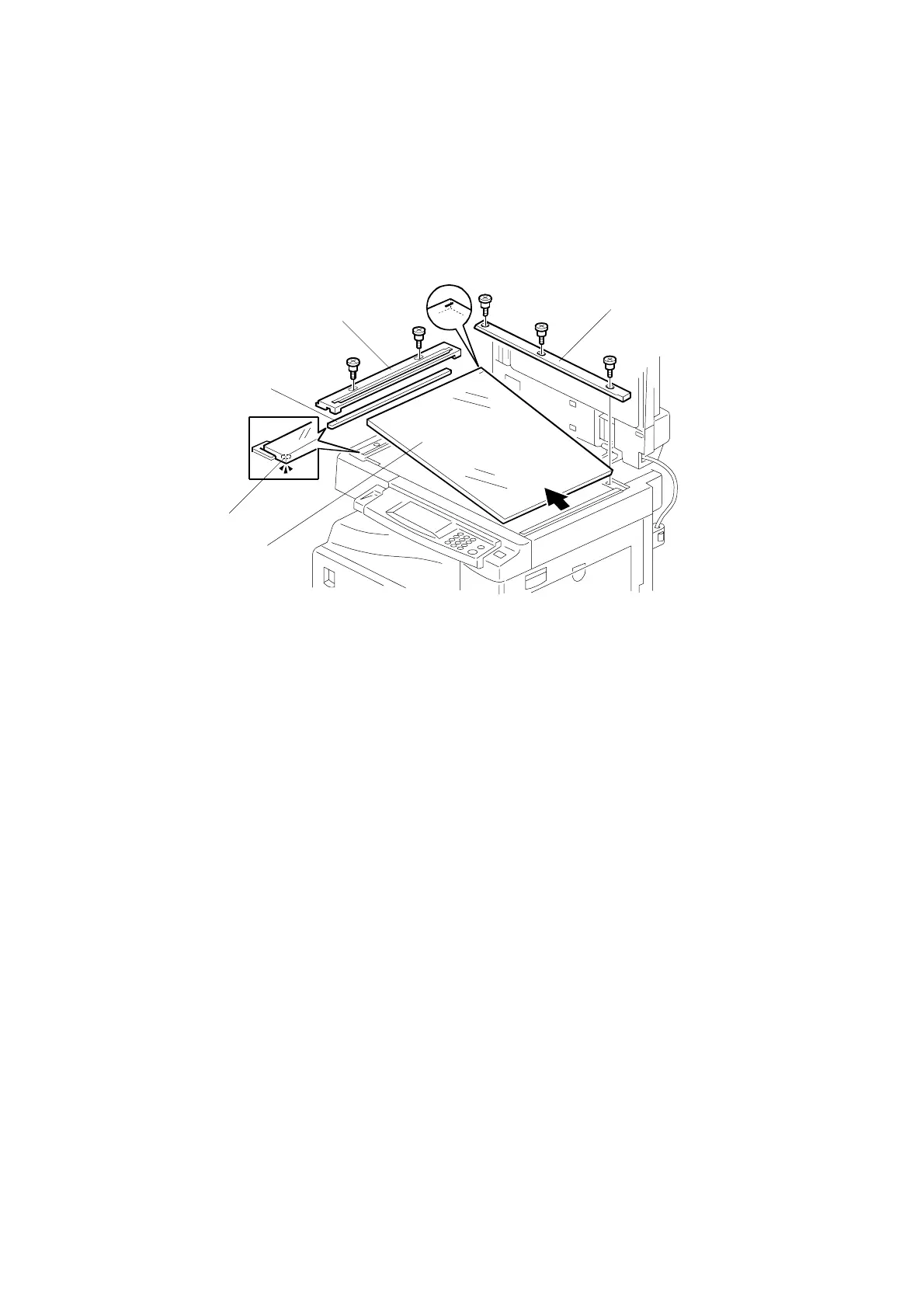

3.4.1 EXPOSURE GLASS/DF EXPOSURE GLASS
Exposure Glass
1. Left scale [A] (! x 2)
2. Rear scale [B] (! x 3)
3. Exposure glass [C]
NOTE: When reinstalling, be sure that the mark is at the rear left corner, and
be sure to set the exposure glass so that its left edge is aligned flush
against the small support ridge on the frame.
DF Exposure Glass
1. Left scale [A]
2. DF exposure glass [D]
NOTE: When reinstalling, be sure that the mark [E] is facing down
B039R001.WMF
[A]
[E]
[B]
[C]
[D]
