3.10.7 PRESSURE ROLLER AND BUSHINGS
1. Fusing unit (☛ 3.10.1)
2. Separate the fusing unit into two sections: the hot roller section and the
pressure roller section (☛ 3.10.3, Step 2). Carry out the remaining steps on the
pressure roller section.
3. Fusing entrance guide [A] (! x 2)
4. 2 springs [B]
5. 2 pressure arms [C]
NOTE: Manipulate each arm so that it comes out through the slit in the casing.
6. 2 Bushings [D]
7. Pressure roller [E]

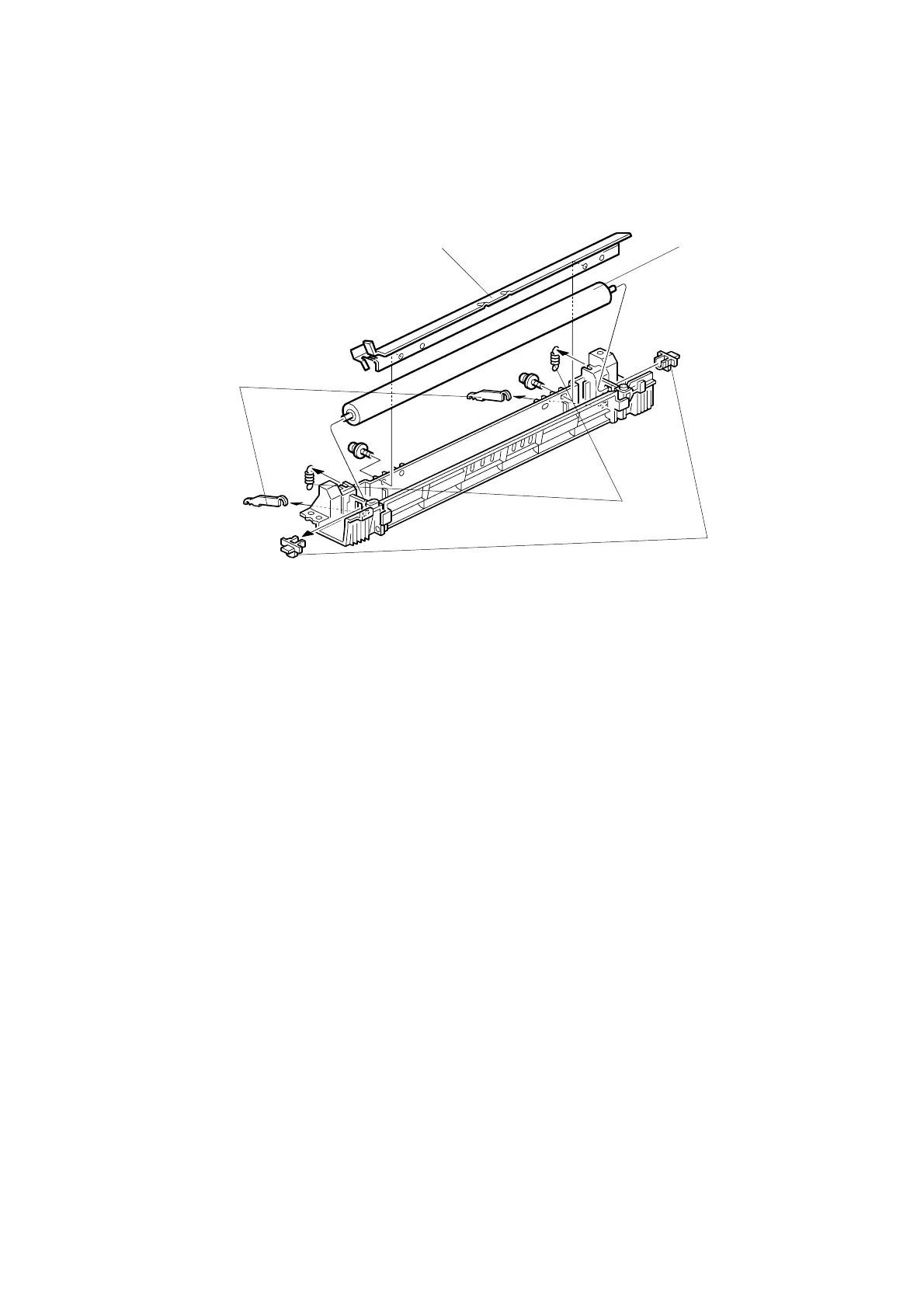

B039R508.WMF
