Ricoh B039 - Registration Sensor; Pick-Up Solenoid

REGISTRATION SENSOR
B387 8-20 SM

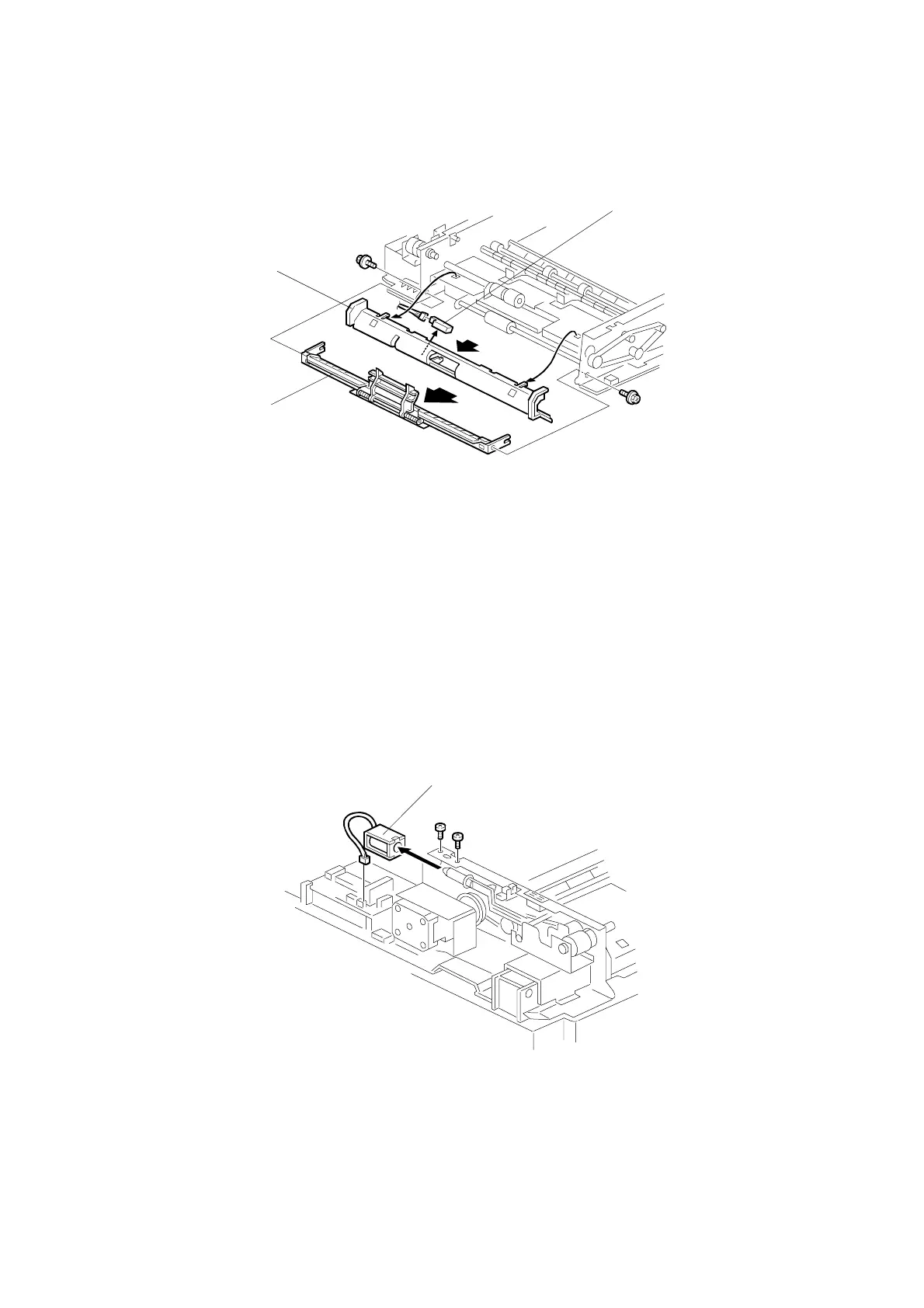

1.10 REGISTRATION SENSOR
1. DF feed cover (☛ 1.1.5)
2. Original entrance guide (☛ 1.1.4)
3. Outer turn guide [A] (! x 2)
4. Pop out the inner turn guide [B], and remove the registration sensor [C] (" x
1)
1.11 PICK-UP SOLENOID
1. Rear cover (☛ 3.1.1)
2. Pick-up solenoid [D] (! x 2, " x 1)
