DUPLEX UNIT (DUPLEX MODELS ONLY)
B039/B040/B043 3-42 SM

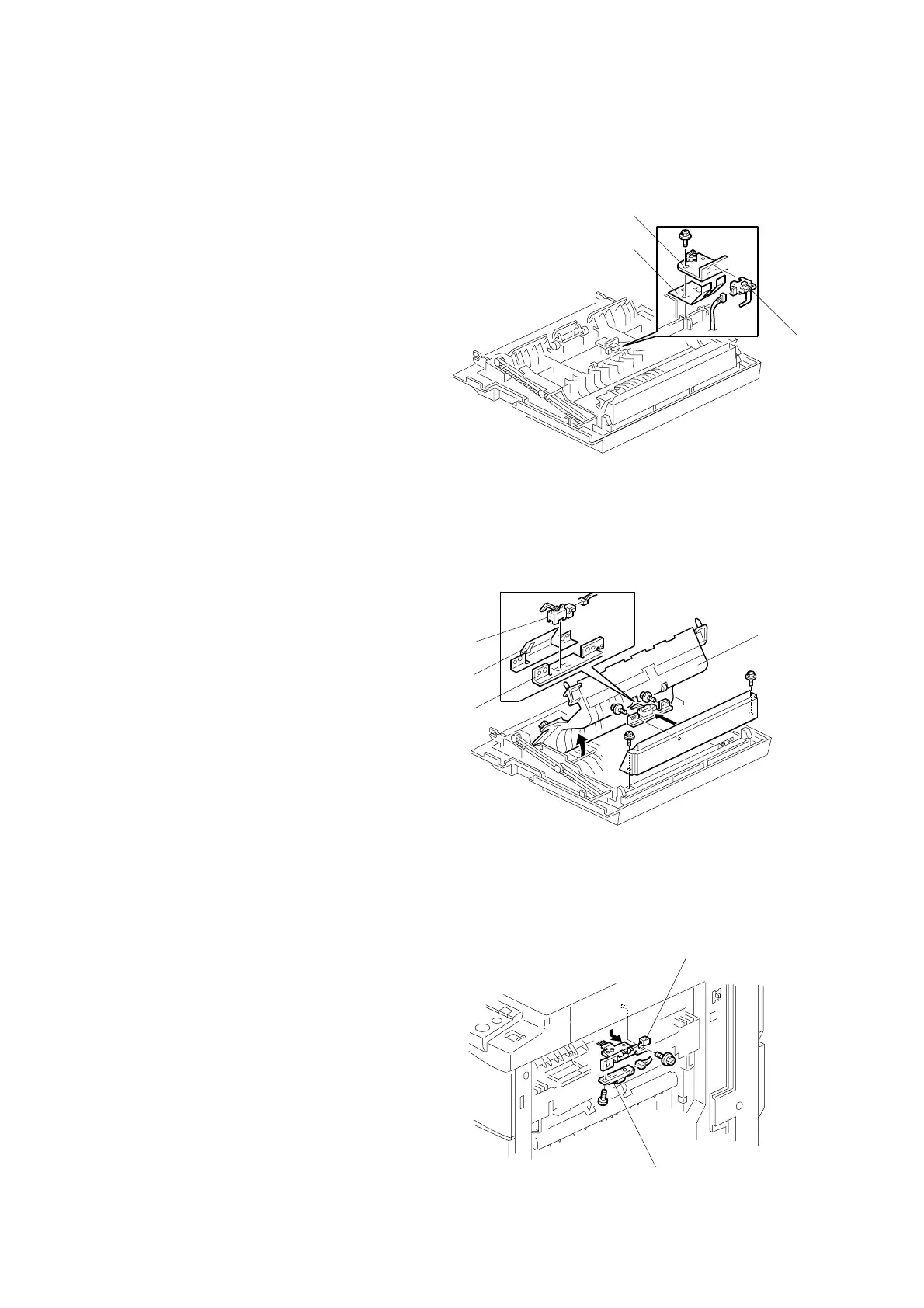

3.11 DUPLEX UNIT (DUPLEX MODELS ONLY)
3.11.1 DUPLEX EXIT SENSOR
1. Open the right door.
2. Sensor bracket [A] and bracket
[B] (! x 1)
3. Duplex exit sensor [C] (" x 1)
3.11.2 DUPLEX ENTRANCE SENSOR
1. Open the right door.
2. Lift the duplex guide [D].
3. Entrance sensor bracket [E] and
bracket cover [F] (! x 2)
4. Duplex entrance sensor [G]
3.11.3 DUPLEX INVERTER SENSOR
1. Open the right door.
2. Sensor bracket [H] (! x 1, " x 1)
3. Duplex inverter sensor [I] (! x 1)
B039R801.WMF
B039R802.WMF
B039R944.WMF
[G]
[I]
[C]
[F]
[D]
[A]
[B]
[E]
[H]
