PAPER FEED AND SEPARATION MECHANISM
B384 9-4 SM
2. DETAILED DESCRIPTIONS
2.1 PAPER FEED AND SEPARATION MECHANISM

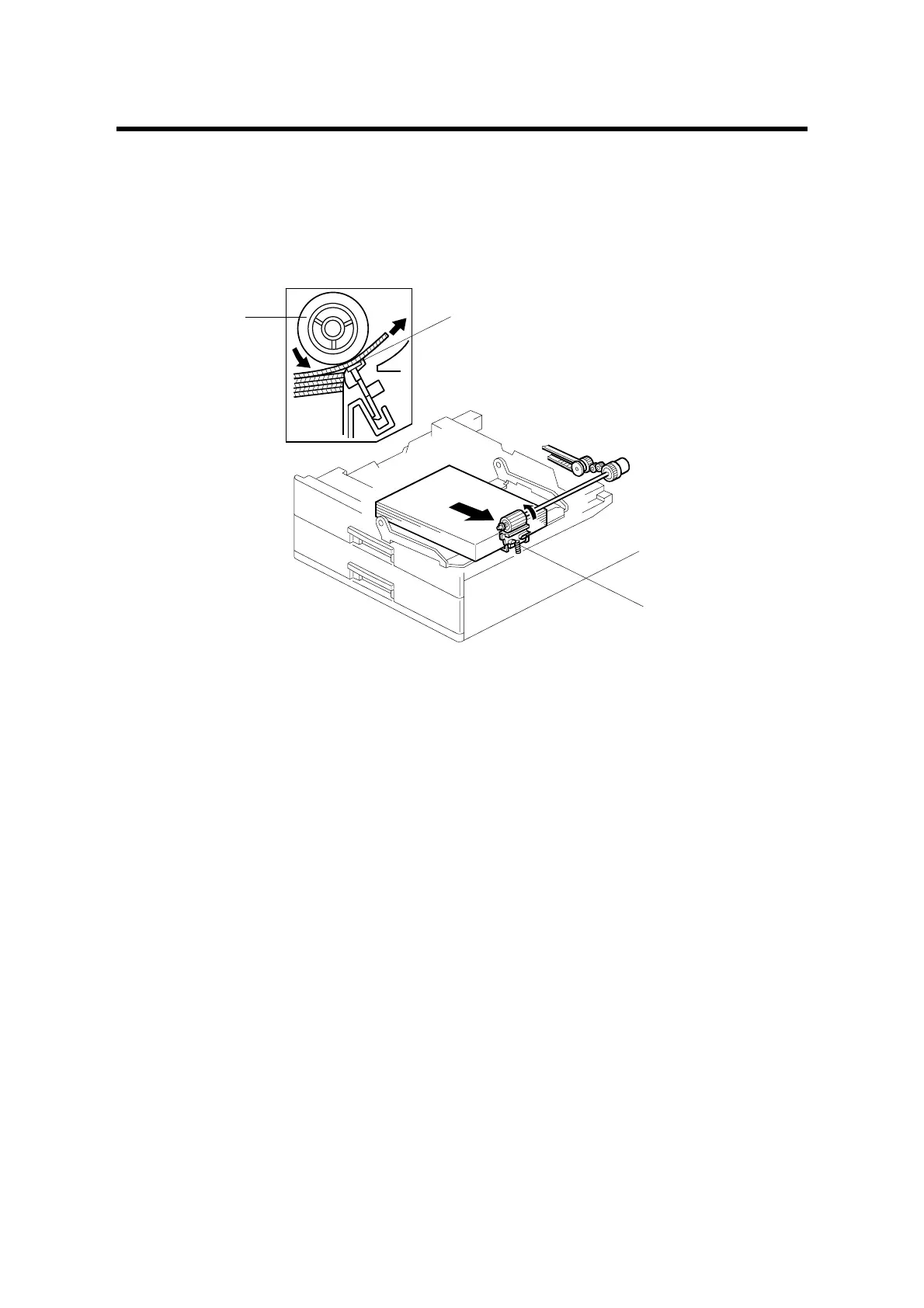

Each paper tray holds 500 sheets. The paper feed roller [A] drives the top sheet of
paper from the paper tray to the copier/printer. The friction pad [B] allows only one
sheet to feed at a time. The friction pad applies pressure to the feed roller with a
spring [C].
B384D104.WMF
[A] [B]
[C]
